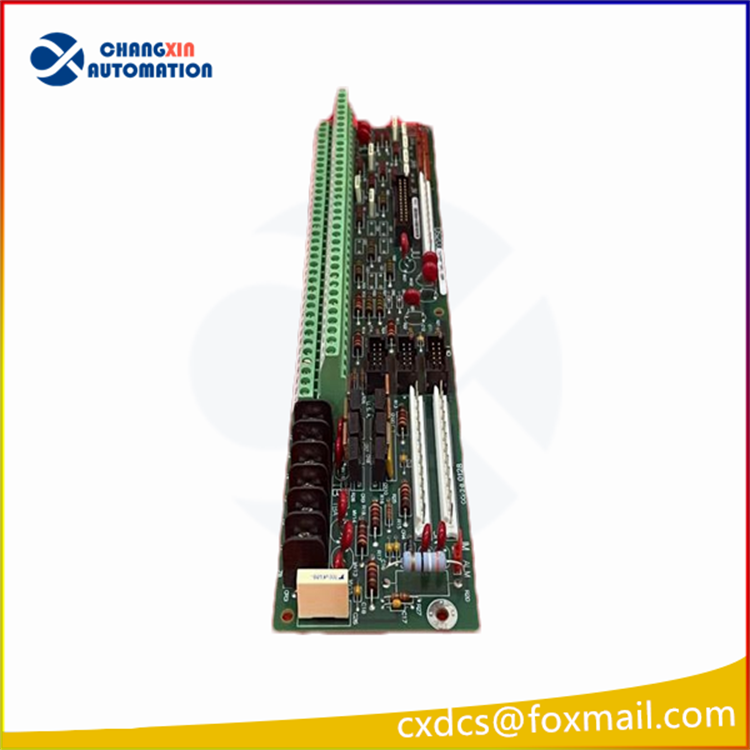

General Electric DS200TCDAF1BCM Digital I/O Board

The General Electric DS200TCDAF1BCM is a digital input/output (I/O) board, which is part of the automation control system of General Electric (GE). The following is a detailed introduction to this product:
I. Product Basic Information
Brand: General Electric (GE)
Model: DS200TCDAF1BCM
Type: Digital Input/Output (I/O) Module
Application System: Usually compatible with GE’s PLC (Programmable Logic Controller) systems, such as the GE Fanuc Series 90-30/90-70 PLC series.

Functional Features
Digital Input: Used for collecting on-site switch quantity signals, such as buttons, switches, sensor contacts, etc.
Digital Output: Outputs digital control signals to actuators, relays, indicator lights, etc.
Signal Isolation: Provides electrical isolation for input and output signals, enhancing anti-interference capability.
Modular Design: Suitable for installation in PLC rack slots, facilitating expansion and maintenance.
Status Indication: Equipped with LED indicator lights, displaying the working status of the channels.

Technical Specifications (Reference)
Input Channels: Multiple digital inputs
Output Channels: Multiple digital outputs
Input Voltage Range: Common industrial standard is 24 V DC
Output Type: Transistor or relay drive (depending on specific design)
Signal Isolation: Photoelectric isolation, enhancing anti-interference capability
Operating Temperature Range: -20°C to +60°C
Installation Method: Insertable module, compatible with GE Fanuc PLC chassis

Application scenario
The DS200TCDAF1BCM digital I/O board is widely used in the industrial automation field, such as in the power, petrochemical, metallurgy, and papermaking industries. As an important component of the PLC system, it is responsible for collecting on-site signals and outputting control signals, thereby achieving automatic control of the production process.
