Description

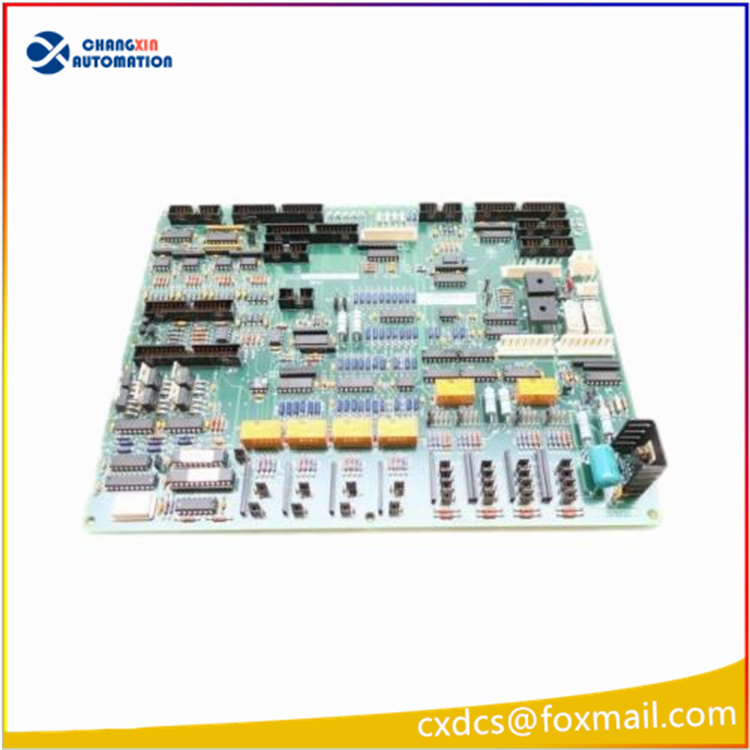

The DS200TCDAH1BHD is a Digital I/O Board used in the GE Mark V Turbine Control System. This board includes jumpers that are used for configuring it to meet specific site requirements.
Configuration and Installation
- Jumpers: The jumpers on the board can be adjusted to customize the configuration based on the specific requirements of the installation site.
- Initial Installation: When the board is installed for the first time, the installation personnel should refer to the documentation provided with the equipment to understand the jumper position definitions for proper board operation.
- Jumper Position Adjustment: Installation personnel can change the position of the jumpers to optimize the board’s performance for the site’s needs.
- Factory Default: When the board is shipped from the factory, the jumpers are set to the default position. This default setting is designed to meet the typical needs of most sites.
-
Technical Specifications
- Manufacturer: General Electric (GE)
- Product Type: Analog I/O Board
- Series: Mark V
Key Features
- Analog I/O Processing: Manages analog input/output signals for system control
- Extended I/O Capabilities: Supports extended I/O features for larger or more complex turbine systems
- Interface: Interfaces with the main control system to provide data for operation monitoring
- Integration: Designed to integrate seamlessly with other GE Mark V system components
