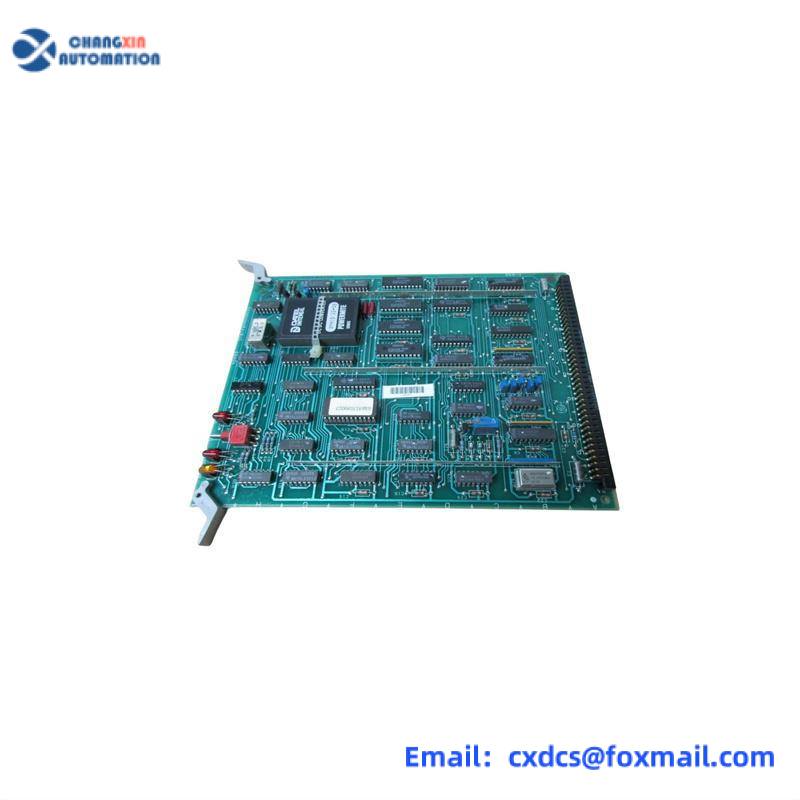

General Electric DS3800HPIB Panel Interface Board for Industrial Control Systems
The GE DS3800HPIB Panel Interface Board serves as a critical communication hub for General Electric’s Mark IV turbine control systems. Engineered for industrial reliability, this interface board ensures seamless data exchange between control panels and system components in demanding operational environments.
Key Features
- 35+ Red LEDs: Front-panel indicators for real-time status monitoring and fault diagnosis
- 12 Screw Mount Positions: Secure installation with standardized mechanical fastening
- 9 Female Harness Connectors: Optimized wiring architecture for modular system integration
- Industrial-Grade Design: Engineered for thermal stability and vibration resistance
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | General Electric DS3800HPIB |
| Compatibility | Mark IV Turbine Control Systems |
| Communication Interface | HPIB (IEEE-488) Protocol |
| Mounting Method | Panel Mount with 12 Screw Positions |
Application Fields
This interface board is specifically designed for power generation facilities using GE’s Mark IV turbine systems. Common applications include gas/steam turbine control rooms, industrial process automation systems, and energy plant monitoring stations where reliable panel-to-system communication is critical.
