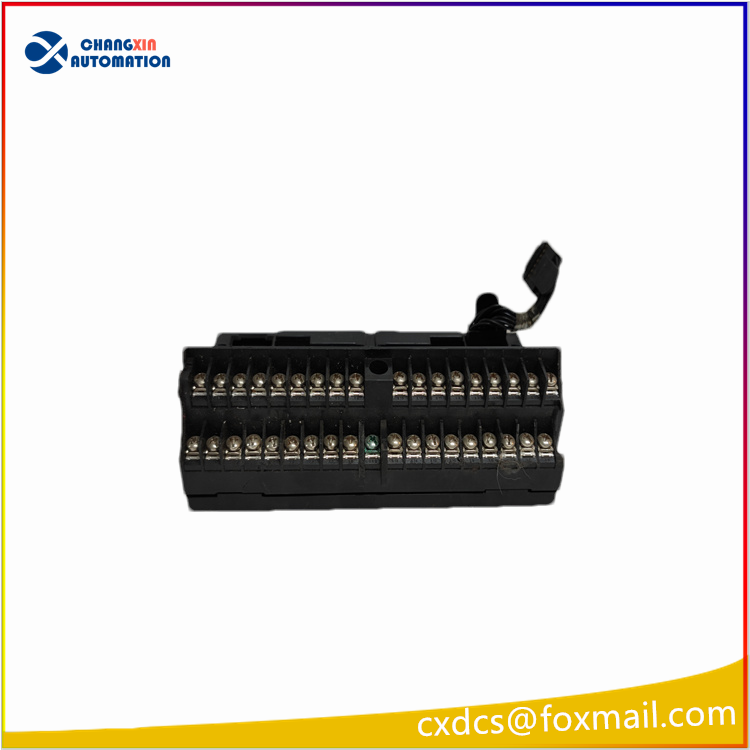

General Electric IC670CHS101 I/O Base Barrier Style Terminal

The GE Fanuc IC670CHS101 terminal block is a barrier-style I/O terminal block designed for hot insertion. Part of the GE Field Control series, it features a projecting positioning slot for each module position, ensuring proper alignment with compatible modules.

Features:

• Hot Insertion: Designed for hot insertion, allowing modules to be added or removed without system shutdown.
• Compatibility: Intendead for use with GE modules with catalog numbers featuring the suffix “J” or above, which have a projecting tab for alignment.

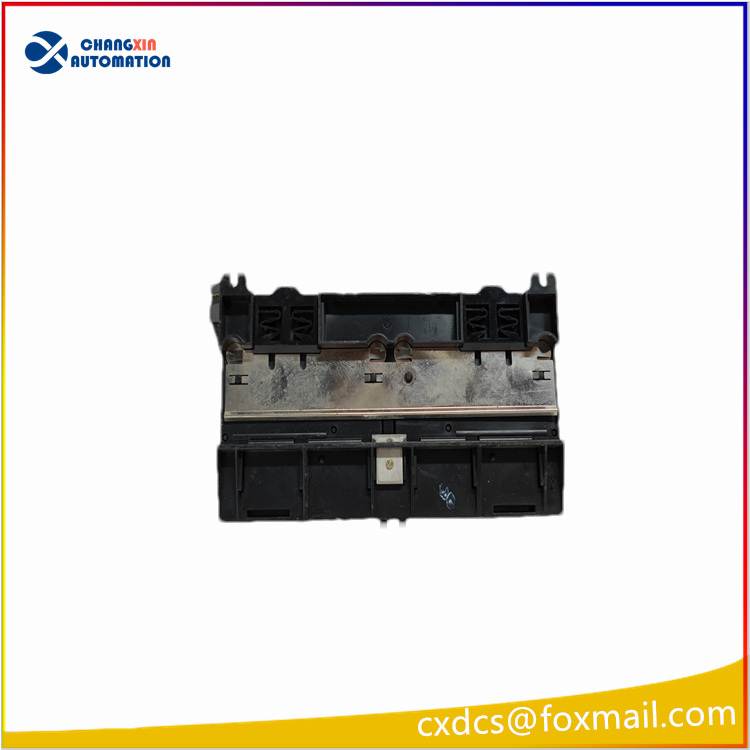

• Grounding: Equipped with a metal grounding strip for use with a grounded DIN rail, ensuring proper noise immunity.
• Mixing Terminal Blocks: Can be mixed with IC670CHS00x and IC670CHS10x terminal blocks within a common I/O station.
• Stability: Secured by stable labels during installation to protect against environmental contamination.

Technical Specifications:

• Type: Barrier-style I/O terminal block.
• Insertion: Hot insertion capability for module addition/removal without system shutdown.
• Compatibility: Designed for use with GE modules with catalog numbers suffix “J” or above.
• Grounding: Features a metal grounding strip for use with grounded DIN rail.
• Mixing Compatibility: Can be mixed with IC670CHS00x and IC670CHS10x terminal blocks within the same I/O station.
• Installation: DIN rail installation with stable labels for stability and protection against contamination.
