Description

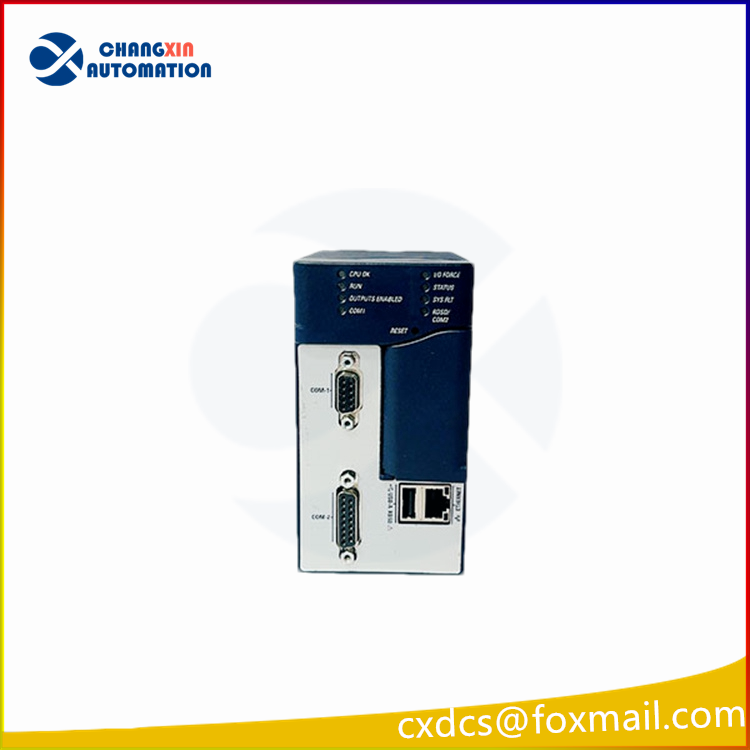

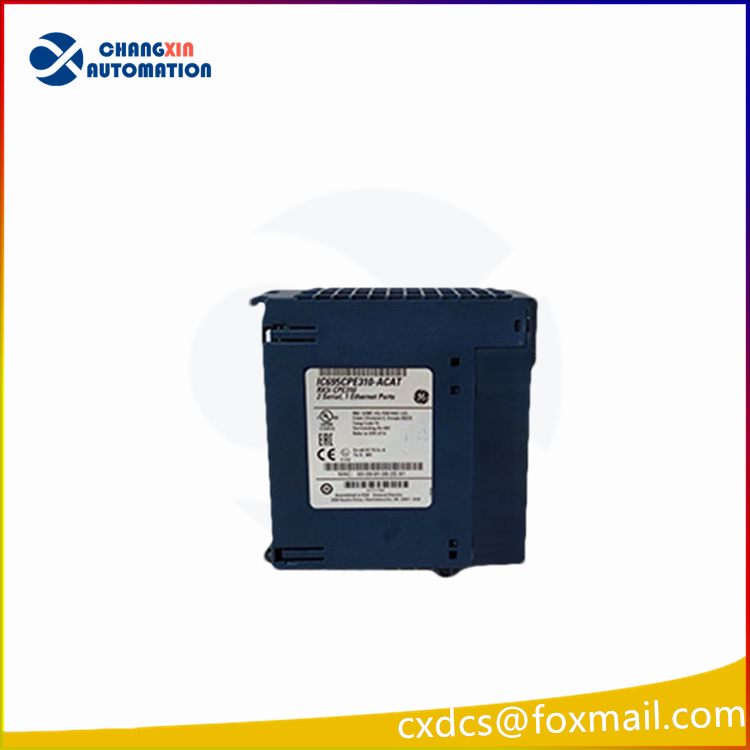

The IC695CPE310 is a CPU module within the GE Fanuc PACSystem RX3i Series, designed for real-time control of machines, processes, and material handling systems. This controller communicates with I/O and Intelligent Option modules over a dual-purpose PCI and serial backplane. With a 1.1 GHz Atom processor, the IC695CPE310 offers high-performance processing and efficient data handling for industrial automation tasks.
Key Features:
- Processor: 1.1 GHz Atom processor for real-time control.
- Memory: 10 MB CPU memory to handle multiple tasks and processes.
- Embedded Ethernet: Dual Ethernet connections, rated for 10Mb/sec and 100Mb/sec speeds.
- Serial Ports: RS-485 and RS-232 for communication.
- Program Blocks: Up to 512 blocks, with each block capable of holding up to 128 KB.
- Supported Protocols: Supports Modbus RTU Slave, SNP, and Serial I/O protocols.
- Programming Languages: Compatible with Ladder Diagram, Structured Text, C, and Function Block Diagram for programming.
- LED Indicators: Green, red, off, or blinking for easy status verification and troubleshooting.
- Installation: Can be installed in any pair of slots in the RX3i controller rack, except the two highest-numbered slots.
- Upgrade: Offers a 3x faster processing speed compared to the 300 MHz Celeron processor in the IC695CPU310, and is compatible with legacy PME software.
Note: The RS-232 port on the IC695CPE310 does not provide 5V power on pin 5.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Processing Speed | 1.1 GHz |
| CPU Memory | 10 MB |
| Floating Point | Yes |
| Power Requirements | 3.3 VDC: 1 Amp, 5 VDC: 1 Amp, 24 VDC: 0.5 Amp |
| Serial Protocols | Modbus RTU Slave, SNP Slave, Serial I/O |
| Embedded Communications | RS-232, RS-485 |
| Real-Time Clock | Battery-backed with dynamic data backup |
| USB Interface | 1x USB-A 2.0 master port for configuration and application data download |
| Ethernet Connections | 2 ports, 10/100 Mbps |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
Installation and Usage:
- Backplane: The IC695CPE310 must be installed in the central universal backplane of the RX3i PACSystems machine control system.
- Unsupported Backplanes: The module will not function properly if installed in an expansion backplane or a remote backplane.
