Description

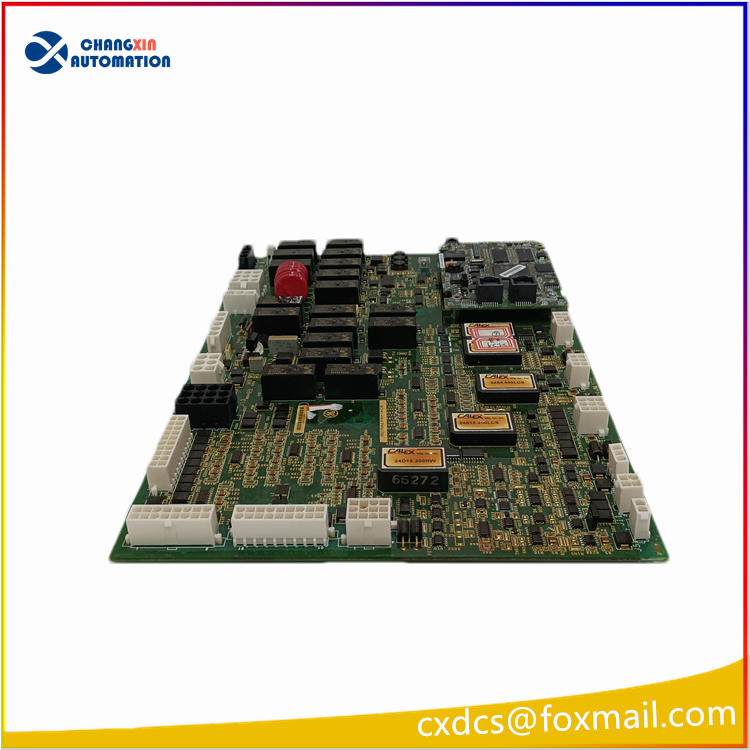

The GE IS200BPAIH1ACB is a high-performance Power Amplifier Interface Board designed for use in GE Mark VIe Turbine Control Systems. This interface board acts as a critical link between the control processor and power amplifier modules, providing precise actuator signal control for gas and steam turbines.
Engineered for high-speed data acquisition and robust signal conditioning, the board ensures reliable operation in harsh industrial environments. Its modular design and diagnostic features facilitate real-time monitoring and fault detection, making it ideal for applications in power generation, oil & gas, and heavy industrial automation.
Key Features:
- High-Speed Data Acquisition: Provides multi-channel, high-speed data processing for precise control.
- Robust Design: Conformal coating ensures protection against harsh environmental factors.
- Built-In Diagnostics: Features fault detection and status LEDs for real-time monitoring.
- Modular and Flexible: Easily integrates into existing turbine control systems, with options for DIN rail or panel mounting.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model Number | IS200BPAIH1ACB |
| Function | Power Amplifier Interface Board |
| Input Voltage | 24 V DC |
| Communication Protocol | Modbus TCP/IP |
| Data Acquisition | High-speed, multi-channel |
| Diagnostics | Built-in fault detection, status LEDs |
| Operating Temperature | –40°C to +70°C |
| Dimensions | 100 mm × 80 mm × 20 mm |
| Mounting | DIN rail or panel mount |
| PCB Protection | Conformal coating |
| Certifications | CE, UL, RoHS |
Applications:
- Power Generation: Essential for controlling turbines in power plants.
- Oil & Gas: Supports automation and control of industrial systems.
- Heavy Industrial Automation: Suitable for controlling complex industrial machinery.
