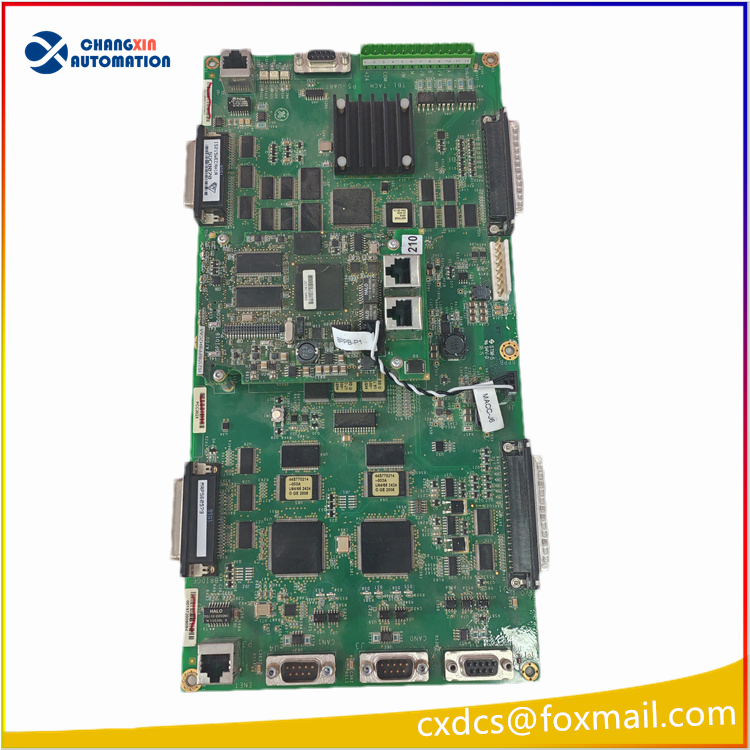

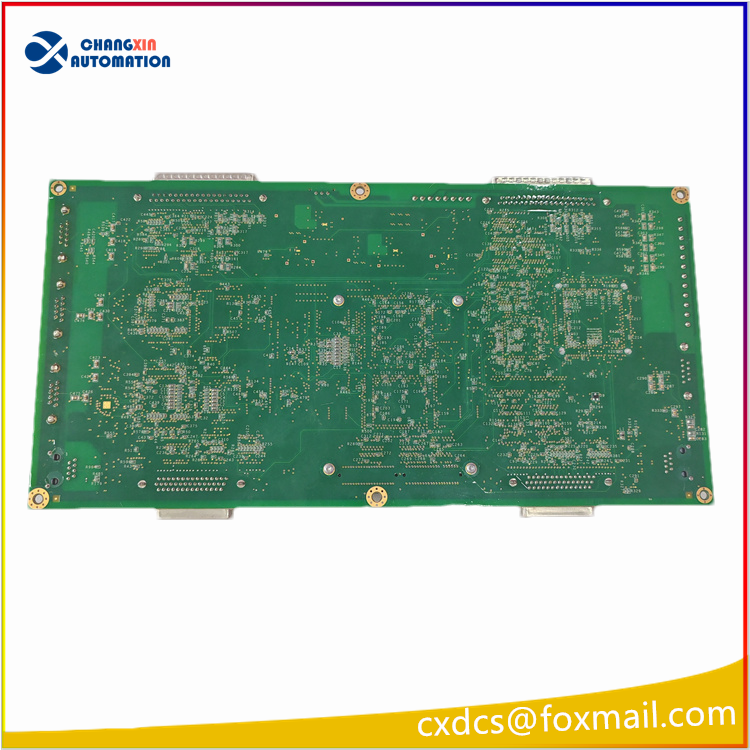

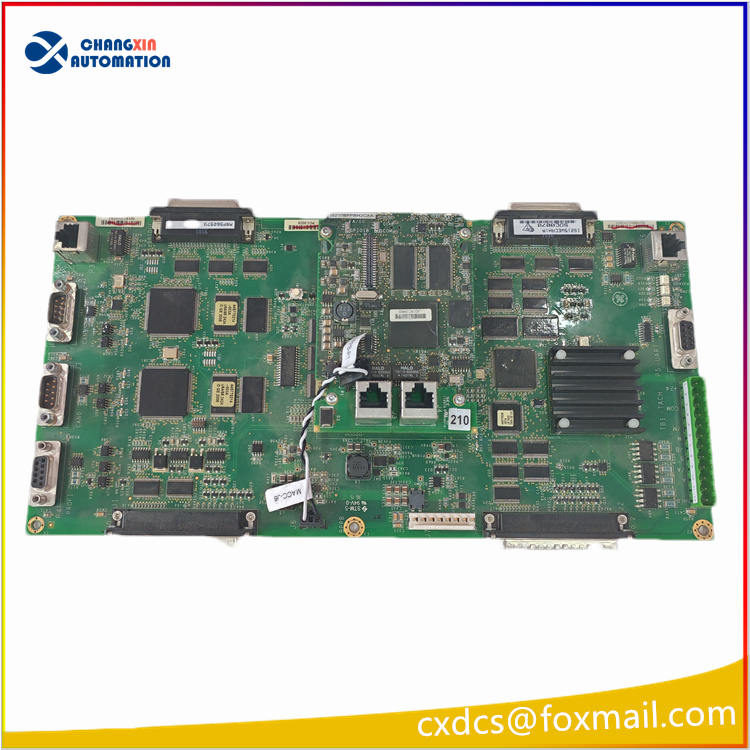

General Electric IS210MACCH1AKH PC Board

The GE Fanuc IS210MACCH1AKH is a circuit board used in GE’s Mark VI and Mark VIe control systems, which are essential for high-speed, real-time control and monitoring in industries such as power generation and oil and gas.

Technical Specifications:

• Dimensions: 3.5 cm x 13 cm x 13.5 cm
• Weight: 0.3 kg
• Connector Type: 37-pin connector
• Country of Origin: USA
• Design: Compact and robust, designed for industrial applications
• Performance: High-speed processing capabilities for real-time control and monitoring
•

• Dimensions and Weight:

  • Dimensions: 6.5 inches x 4.2 inches x 1.5 inches (165 mm x 107 mm x 38 mm)
  • Weight: 3.2 pounds (1.45 kilograms)

  Power:

  • Power Supply: 24 VDC, 50/60 Hz
  • Power Consumption: 12 watts

  Environmental Limits:

  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Humidity: 5% to 95% RH, non-condensing

  Input/Output:

  • Digital Inputs: 48 points
  • Digital Outputs: 32 points
  • Analog Inputs: 16 channels, ±10V
  • Analog Outputs: 8 channels, ±10V

  Communication:

  • Ethernet
  • RS-485
  • CANbus

  Processing and Memory:

  • Processing Speed: 200 MHz
  • Memory:
    • RAM: 128 MB
    • Flash: 256 MB
    •
