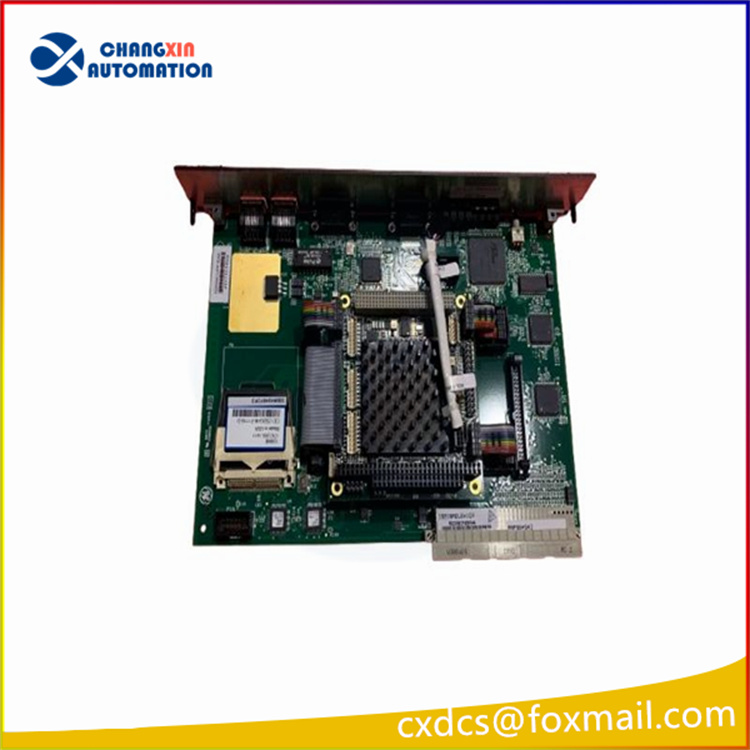

General Electric IS215AEPCH1EB Application Control Layer Module

The GE IS215AEPCH1EB is an Application Control Layer Module designed for use with Innovation Series drives. This microprocessor-based controller is equipped to handle communication over networks like ISBus and Ethernet. It provides a reliable and robust solution for industrial control systems, enabling precise control and easy integration into complex systems. The module offers advanced software features, including I/O points control, internal Boolean forcing, and online configuration loading.

Key Features and Specifications:

Functionality:

• Microprocessor-based controller for effective management of industrial applications.
• Primary Use: Communication over ISBus and Ethernet networks.
• Software Features:
  • I/O points and internal Booleans for application control in Innovation Series drives.
  • Non-volatile flash memory for secure data storage.
  • Online application configuration loading for real-time updates.
  • Control block management for efficient operation.

Hardware Features:

• Ethernet Connection: Uses IRQ 5, initialized by the BIOS function for smooth data transmission.
• PCI Controller: Handles inputs, outputs, configuration transfers, and memory functions.
• L2 Cache: 128 KB, controlled by the PCI controller to optimize data flow.
• Flash Memory Device: Located on the local bus side (Device 1), accessed in byte mode for fast read/write operations.

Performance:

• Reliable control and communication functions for Innovation Series drives.
• Supports efficient I/O management, with fast data processing and real-time system configuration.
