Description

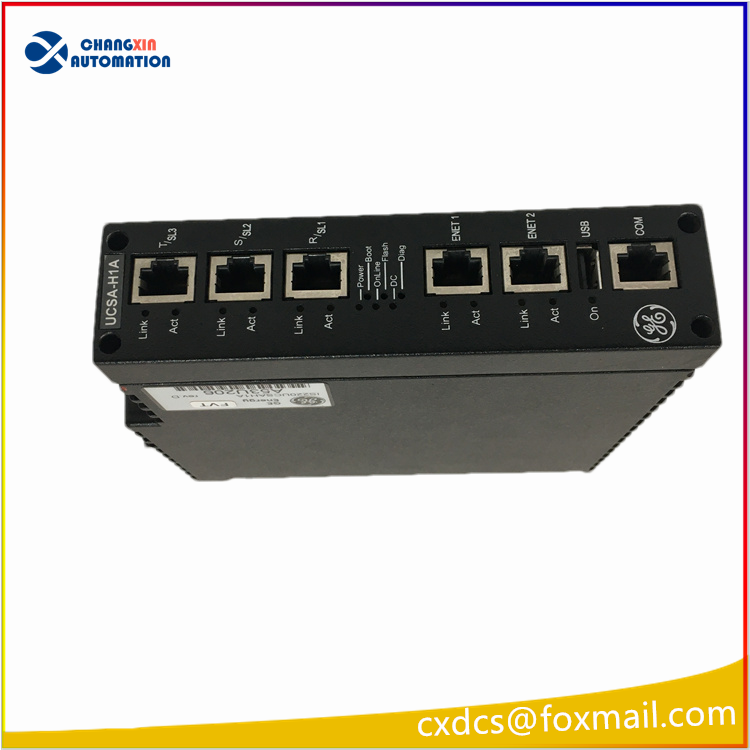

The IS220UCSAH1A is a LAN Communication Module from General Electric, designed for use in Mark V Turbine Control Systems. It enables high-speed Ethernet communication, facilitating data transfer and integration between control systems and supervisory devices in industrial environments.
Features:
- Ethernet Communication:
Provides reliable Ethernet connectivity for data exchange between turbine control units and other networked systems. - Flexible Protocol Support:
The module supports a variety of industrial communication protocols, ensuring compatibility with multiple system configurations. - System Integration:
Specifically designed for integration with Mark V turbine control systems, enhancing communication and overall system performance. - Diagnostic Capabilities:
Offers diagnostic features to monitor communication health and ensure consistent system performance.
Technical Specifications:
| Parameter | Description |
|---|---|
| Product Type | LAN Communication Module |
| Part Number | IS220UCSAH1A |
| Manufacturer | General Electric |
| Country of Manufacture | USA |
| Interface Type | Ethernet (LAN) |
| Communication Protocols | Supports TCP/IP, Modbus, and other industrial protocols |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Power Supply | Powered by system backplane (5V DC) |
| Dimensions | Approx. 150mm x 100mm x 25mm |
| Weight | Approx. 0.25 kg (0.55 lbs) |
| Connectors | Multiple connectors for Ethernet and power supply |
| LED Indicators | Status and diagnostic LEDs |
Functional Description:
- Primary Role:
The IS220UCSAH1A module enables seamless Ethernet communication for Mark V Turbine Control Systems, ensuring fast and reliable data transfer across connected devices. - Protocol Flexibility:
It supports multiple industrial communication protocols, including TCP/IP and Modbus, allowing for easy integration with a wide range of industrial networks. - Real-time Monitoring and Diagnostics:
The module is equipped with diagnostic LEDs that help monitor the status and health of the communication network in real-time, minimizing downtime and improving operational efficiency. - System Compatibility:
The module integrates smoothly with Mark V turbine control systems, ensuring high-performance operation and better overall control of turbine processes. - More Related Modules
