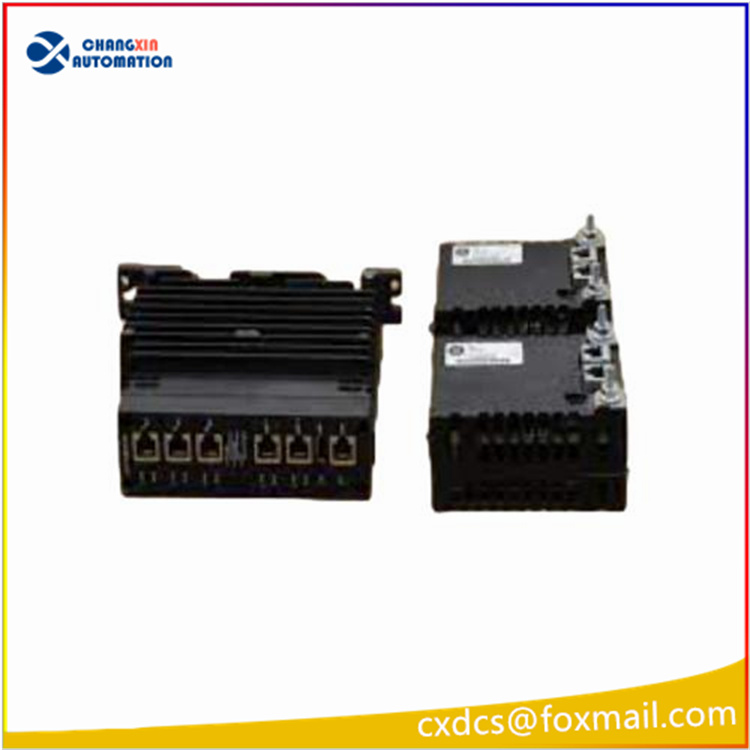

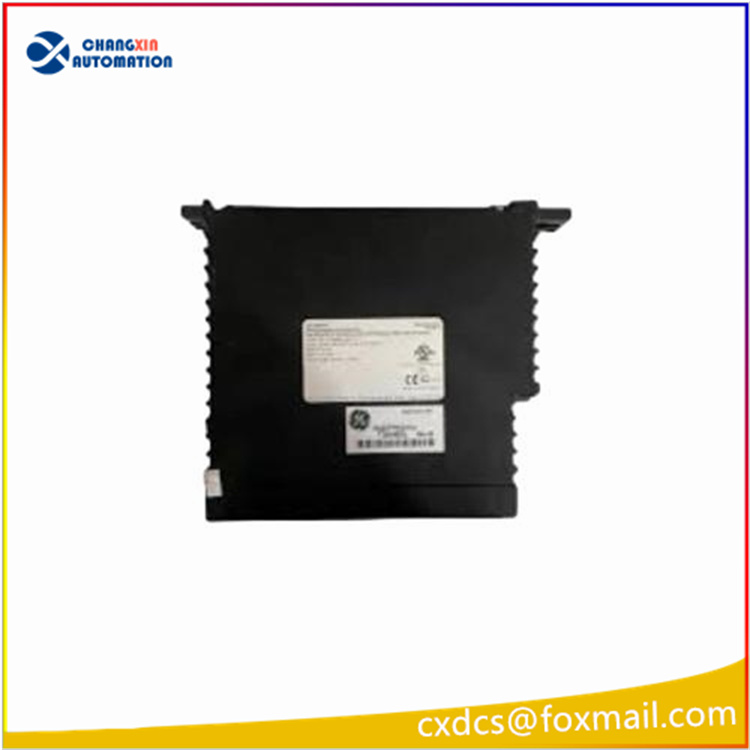

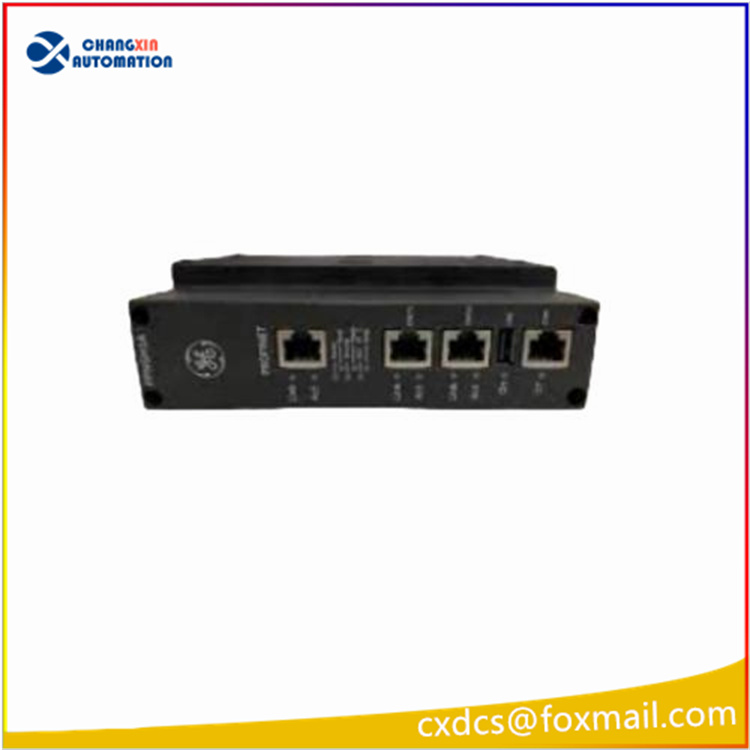

General Electric IS420PPNGH1A Controller Gateway Module

Product Details

The IS420PPNGH1A model is a Profinet Gateway Model designed by General Electric to be used within the Mark VIe/VIeS System. The processor used is a 1066 MHz EP80579 Intel. The IS420PPNGH1A model can be mounted with a UCSC controller which will allow for different communications.

IS420YAICS1B is an analog I/O module designed and developed by GE General Electric, which is part of the GE Mark VIeS control system. The main function of this module is to receive input voltage signals from relevant terminal boards and serve as a service interface for maintenance services during startup and shutdown or fault detection during operation.

The IS420PPNGH1Amodule is designed to connect one or two I/O Ethernet and an analog I/O terminal board, with powerful electrical interface capabilities. It can interface with up to two I/O Ethernet interfaces and supports up to 10 analog inputs. The first 8 can be configured as 5V or 10V or 4-20mA current loop inputs, and the last two inputs can be set as 1mA or 0-20mA current inputs. This design enables the IS420YAICS1B module to flexibly adapt to various analog input requirements.

In terms of hardware specifications, the IS420PPNGH1A module consists of a processor board and an acquisition board. The processor board is a BPPC and has specific input functions. This module is compatible with the BPPC processor board and supports firmware version V05.01 or higher, while the ControlST software should be V06.01 or higher. In addition, the environmental temperature range of the module is wide, from -40 ° F to 158 ° F, ensuring stable operation in various working environments.

In terms of communication, the IS420PPNGH1A module sends and receives data through dual RJ45 Ethernet connectors, achieving efficient data transmission and communication. This design enables the module to seamlessly connect with other devices, achieving real-time sharing and control of information.

In terms of application, the IS420PPNGH1A module is mainly used in industrial control systems, especially in situations where analog input/output functions are required. It can be used to manage and control industrial turbine systems, such as rectifiers, where the motor armature is powered by a three-phase fully controlled bridge. In addition, it can also be applied to various industrial automation scenarios that require precise simulation of signal processing, such as petrochemical, power, manufacturing and other fields.

Overall, the IS420PPNGH1A analog I/O module is a powerful and stable industrial automation control equipment that can meet the needs of various complex industrial scenarios.
