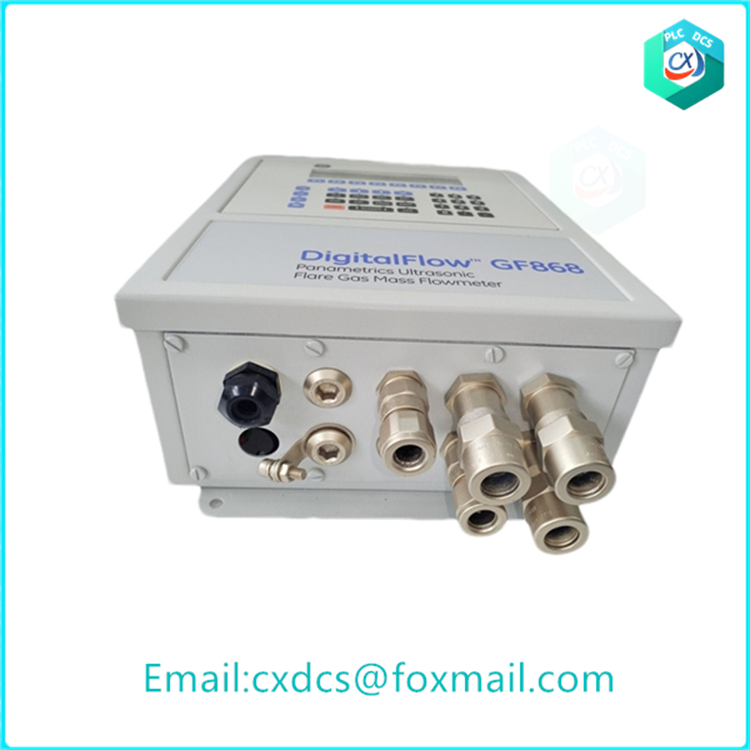

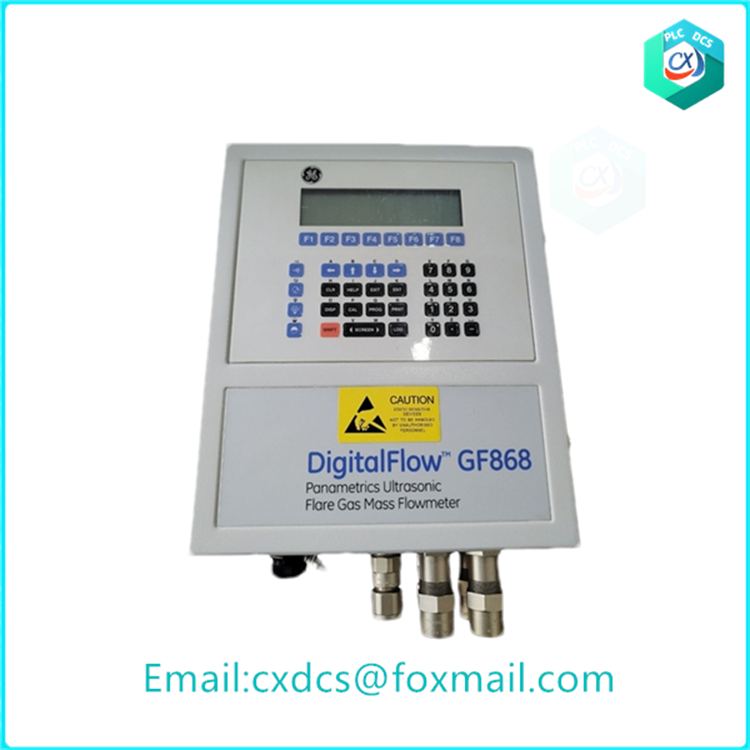

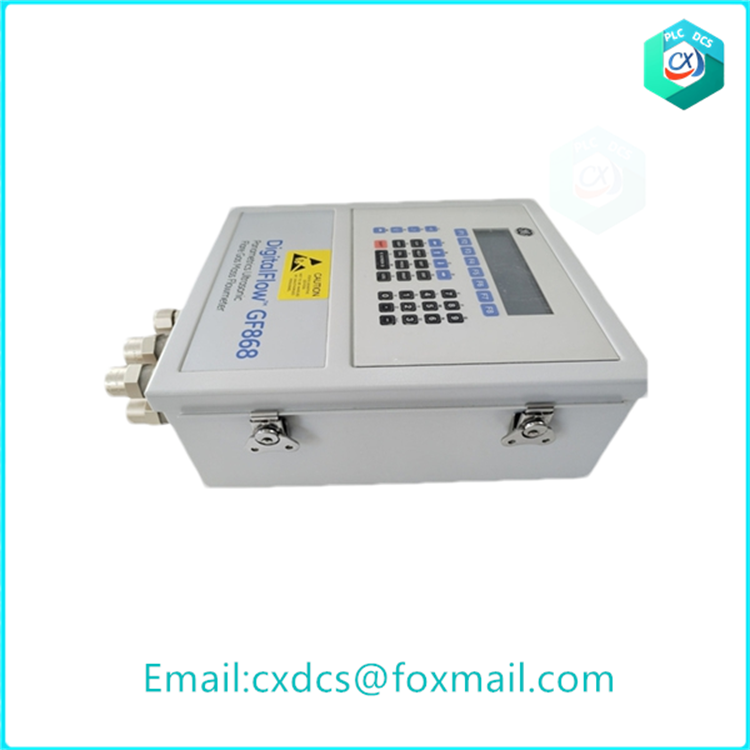

GF868-1-2-1-2-1-B-1-4-0-0-0-CC-RPT Ultrasonic Torch Flowmeter

The GF868 ultrasonic torch flowmeter is a high-precision flow measurement device specially designed for complex working conditions such as flare gas. The following introduces it from three aspects: core functions, technical parameters, and application advantages.
I. Core Functions
Multi-component Gas Measurement:
Can adapt to changes in gas components, accurately measure complex media such as flare gas and exhaust gas, and achieve high-precision detection through the Correlation Transit-TimeTM technology.
Multi-parameter Measurement:
Real-time output of flow rate, volumetric flow rate, mass flow rate, and instantaneous average molecular weight. Supports measurement of both hydrocarbon gases and non-hydrocarbon gases, meeting the requirements of industrial process monitoring.
High Reliability Design:
Uses fully metal sensors and a structure without moving parts, adapted to environments with impurities and humidity, reducing maintenance requirements and ensuring long-term stable operation.

Technical Specifications
Range and Accuracy:
The range ratio is as high as 3940:1. It supports a flow rate range from 0.03m/s to 120m/s. The bidirectional flow rate measurement accuracy is ±1%FS, meeting the requirements for wide-range flow measurement.
Installation and Configuration:
It provides 1 or 2 channel/path configuration. It supports pipeline installation with diameters ranging from 76mm to 3m. It is compatible with various installation methods such as hot drilling/cold drilling.
Environmental Adaptability:
Protection grade IP65. The built-in power supply can power the temperature and pressure transmitters. It can operate in a working environment ranging from -10℃ to +45℃.

Application Advantages
Energy Saving and Emission Reduction:
By precisely measuring the flow rate of flare gas and optimizing the amount of steam injection, unnecessary emissions can be reduced, thereby lowering energy consumption and operational costs.
Compliance Management:
Meet the monitoring requirements of environmental protection authorities for pollution emissions, helping enterprises achieve green production and compliant operations.
Process Optimization:
Quickly locate leakage sources, reduce product and energy losses, and improve the material balance and production efficiency of the factory.
