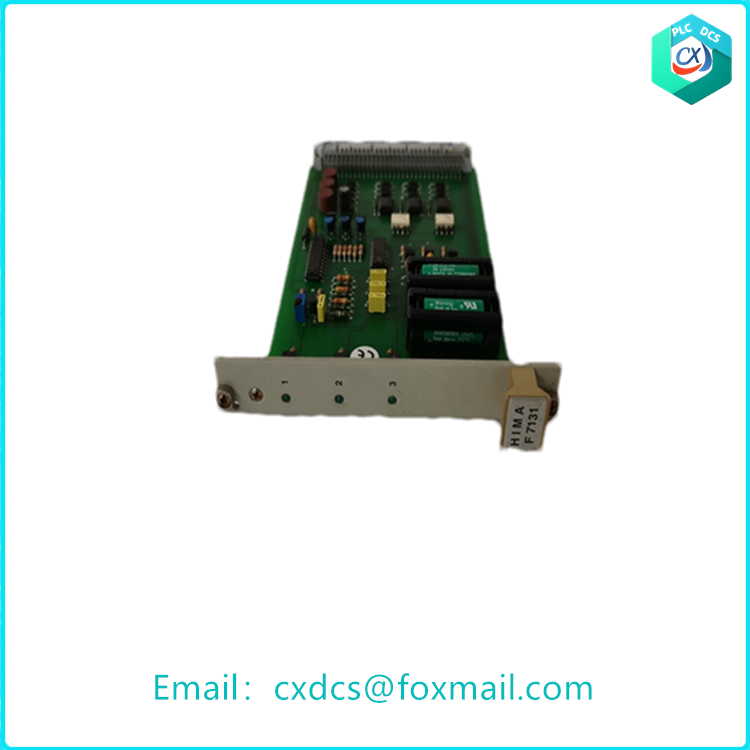

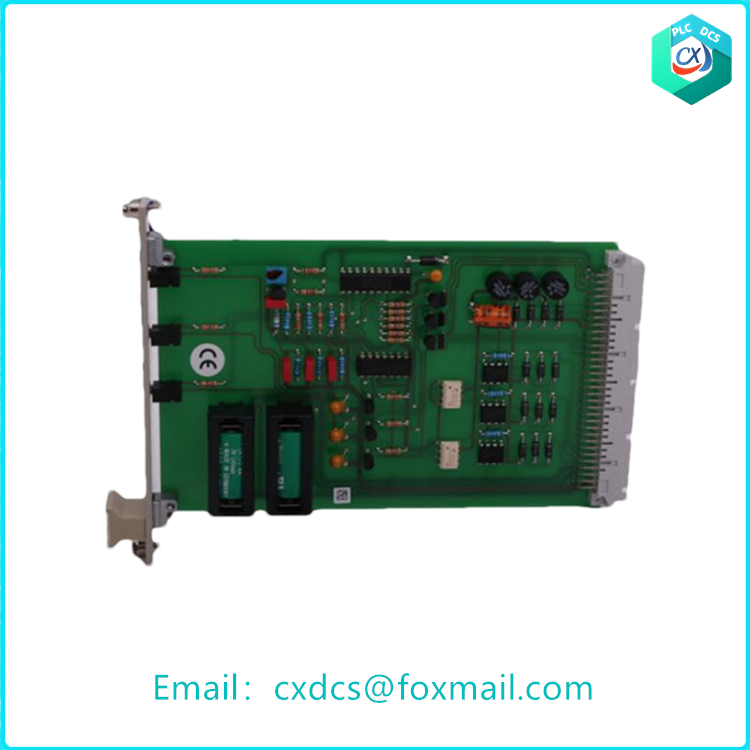

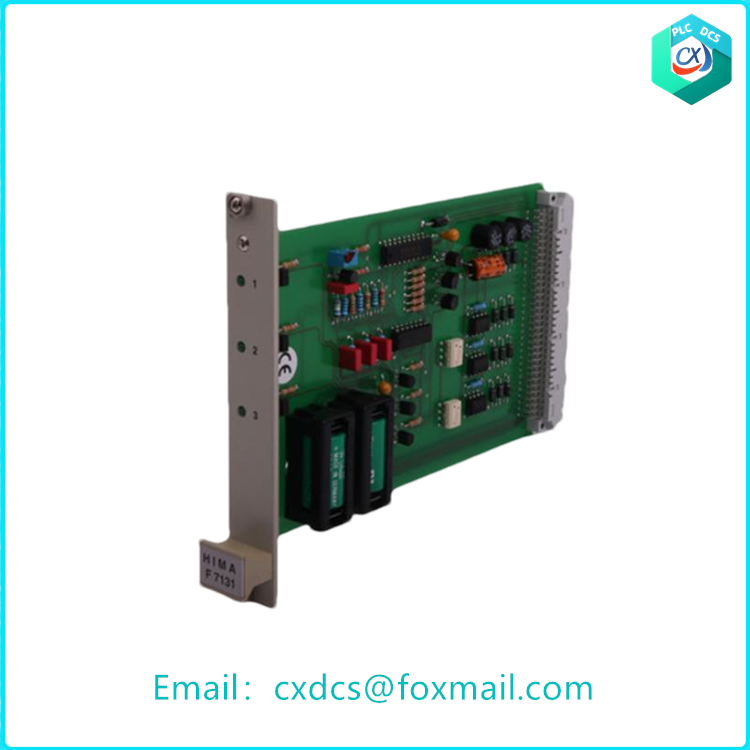

HIMA F7131 981713102 | Power Supply Monitoring Module | F-7131.The HIMA F7131 Power Supply Monitoring Module is a component used for monitoring and controlling the power supply in industrial automation systems. It is commonly used in safety applications to ensure the availability and reliability of power to critical equipment.To gather more information about the HIMA F7131 Power Supply Monitoring Module, we can follow these steps:
Manufacturer’s Documentation: The first step is to locate the manufacturer’s documentation for the module. Visit the official website of HIMA or contact their support team to obtain the datasheet, user manual, and technical specifications for the F7131 Power Supply Monitoring Module. The documentation will provide detailed information on features, installation, configuration, and usage guidelines.
Functional Features
Redundancy Design: Supports dual-channel hot standby redundancy. In the event of a main channel failure, the backup channel can seamlessly switch within 10ms, ensuring continuous system operation.
Safety Integrity Level: Complies with IEC 61508 SIL 3 certification, suitable for critical safety functions such as emergency stop systems (ESD), fire and gas detection systems (F&G).
Channel-level Diagnosis: Through LED indicators and HMI interface, the channel status (normal/fault/open circuit) is displayed in real time. The “channel bypass” function is supported, allowing the temporary shielding of a channel in case of a single-channel failure to avoid system shutdown.
Signal Quality Monitoring: Built-in ADC sampling circuit, capable of real-time monitoring of input signal voltage fluctuations. When the voltage exceeds the range of 20.4V to 28.8V, a three-level alarm mechanism is triggered.
HART Protocol Support: Can simultaneously connect HART intelligent instruments to achieve digital transmission and diagnosis of analog signals such as pressure and temperature.
Modular Expansion: Through F3 system bus, it can be expanded to 64 I/O modules, supporting mixed configurations (such as DIO + AIO), meeting the requirements of complex process flows.
Application scenarios
Petrochemical industry: Real-time monitoring of the status of 128 valves in the catalytic cracking unit of a refinery. The fault response time has been reduced from 200ms in the traditional solution to 15ms, avoiding major safety accidents.
Energy: In nuclear power plants, its SIL 3 certification and redundant design ensure zero false alarms in the monitoring of key valve status, reducing the fault response time for nuclear safety-level equipment from 300ms to 20ms.
Water treatment: Used to achieve safe monitoring and control of industrial processes.
Pharmaceuticals: Through expansion modules, quadruple redundant monitoring of reaction vessel pressure, temperature, and liquid level is implemented.
Food and beverages: Used to protect the safety of operators and equipment.
Automobile manufacturing: Supports the EtherCAT protocol and can synchronously control 256 robot I/O signals.
