Description
Dimensions: 2.5 x 12.7 x 20.3 cm
Weight: 0.1kg

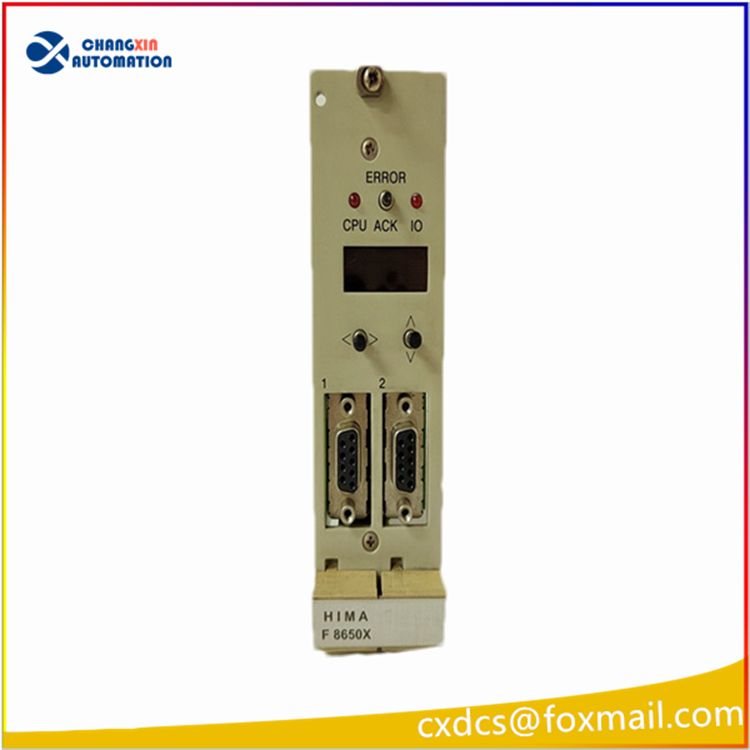

Diagnostic display of the central module:
– 4 digits alphanumerical display
– 2 LEDs for the common display of errors (CPU for the central modules,IO for the testable IO-modules
– 2 switch-over pushbuttons marked with <> and to request detailedinformation
– Push-button ACK resets the error indication. In failure stop, ACK willreact like the switch on of the system.
For further information on the diagnostic display refer to the documentation”functions of the operational system BS 41q/51q”.
Hints for start-up and maintenance:
– Lifetime of the buffer battery without voltage feeding:
2500 days at TA = 25 °C
100 days at TA = 60 °C
– It is recommended to change the buffer battery after 4 years (lithiumbattery, e. g. type CR 2477N, HIMA part no. 44 0000018 )
– Check the bus station no. and trans the rate at switch S1 for correct settings
