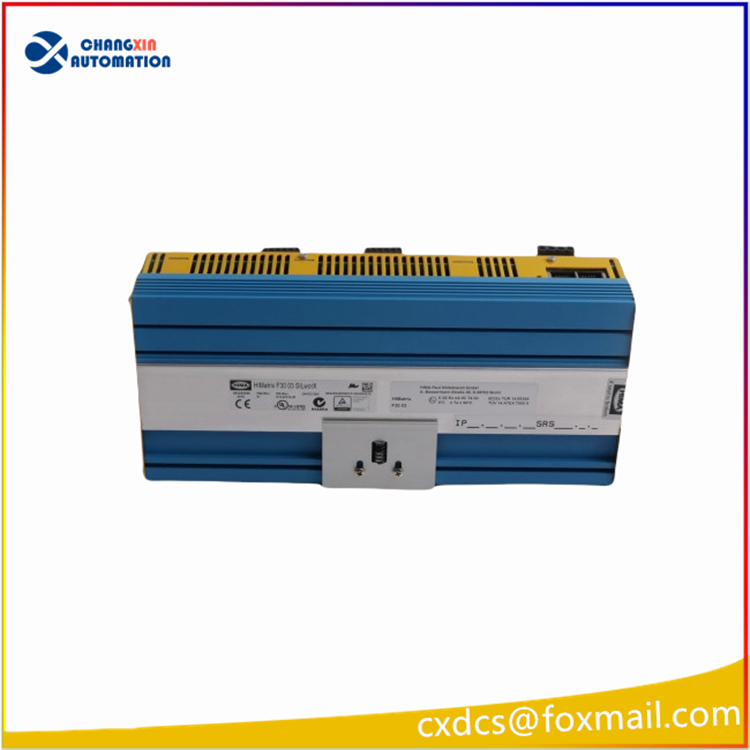

The HIMATRIX F3 DIO 8/8 01 is a high-performance digital input/output (DIO) module produced by HIMA. The following is a detailed introduction to this module:
I. Basic Parameters
Input/Output Channels: Provides 8 digital input channels and 8 digital output channels, supporting 24V DC signals.
Response Time: Input response time is less than 5ms, meeting high real-time requirements.
Output Load Capacity: Each output channel has a load capacity of 500mA, capable of driving relays, solenoid valves, and other industrial loads.
Electrical Parameters: Operating voltage range is 20.4V to 28.8V DC, peak power consumption is 8W, with built-in overvoltage/reverse connection protection circuits, and can withstand transient pulse voltages of ±2kV.
Communication Interfaces: Supports mainstream protocols such as HART, Modbus RTU, and PROFIBUS DP, and is compatible with mainstream DCS systems like Siemens S7-300/400 and Yokogawa CENTUM VP.
Environmental Adaptability: Features an IP20 protection rating, operating temperature range of -20°C to +60°C, vibration resistance level IEC 60068-2-6 (10g/10-500Hz), and can withstand 95% humidity and strong electromagnetic interference environments.
Functional Features
Redundancy Design: Supports dual-channel hot standby redundancy. In the event of a main channel failure, the backup channel can seamlessly switch within 10ms, ensuring continuous system operation.
Safety Integrity Level: Complies with IEC 61508 SIL 3 certification, suitable for critical safety functions such as emergency stop systems (ESD), fire and gas detection systems (F&G).
Channel-level Diagnosis: Through LED indicators and HMI interface, the channel status (normal/fault/open circuit) is displayed in real time. The “channel bypass” function is supported, allowing the temporary shielding of a channel in case of a single-channel failure to avoid system shutdown.
Signal Quality Monitoring: Built-in ADC sampling circuit, capable of real-time monitoring of input signal voltage fluctuations. When the voltage exceeds the range of 20.4V to 28.8V, a three-level alarm mechanism is triggered.
HART Protocol Support: Can simultaneously connect HART intelligent instruments to achieve digital transmission and diagnosis of analog signals such as pressure and temperature.
Modular Expansion: Through F3 system bus, it can be expanded to 64 I/O modules, supporting mixed configurations (such as DIO + AIO), meeting the requirements of complex process flows.
Application scenarios
Petrochemical industry: Real-time monitoring of the status of 128 valves in the catalytic cracking unit of a refinery. The fault response time has been reduced from 200ms in the traditional solution to 15ms, avoiding major safety accidents.
Energy: In nuclear power plants, its SIL 3 certification and redundant design ensure zero false alarms in the monitoring of key valve status, reducing the fault response time for nuclear safety-level equipment from 300ms to 20ms.
Water treatment: Used to achieve safe monitoring and control of industrial processes.
Pharmaceuticals: Through expansion modules, quadruple redundant monitoring of reaction vessel pressure, temperature, and liquid level is implemented.
Food and beverages: Used to protect the safety of operators and equipment.
Automobile manufacturing: Supports the EtherCAT protocol and can synchronously control 256 robot I/O signals.
