HONEYWELL CC-PAIH01 Industrial Control Module

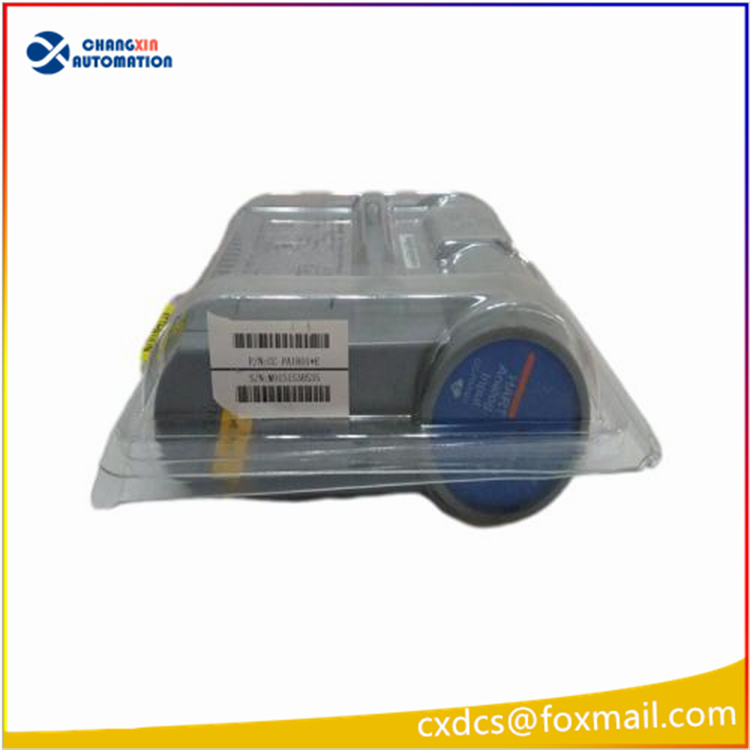

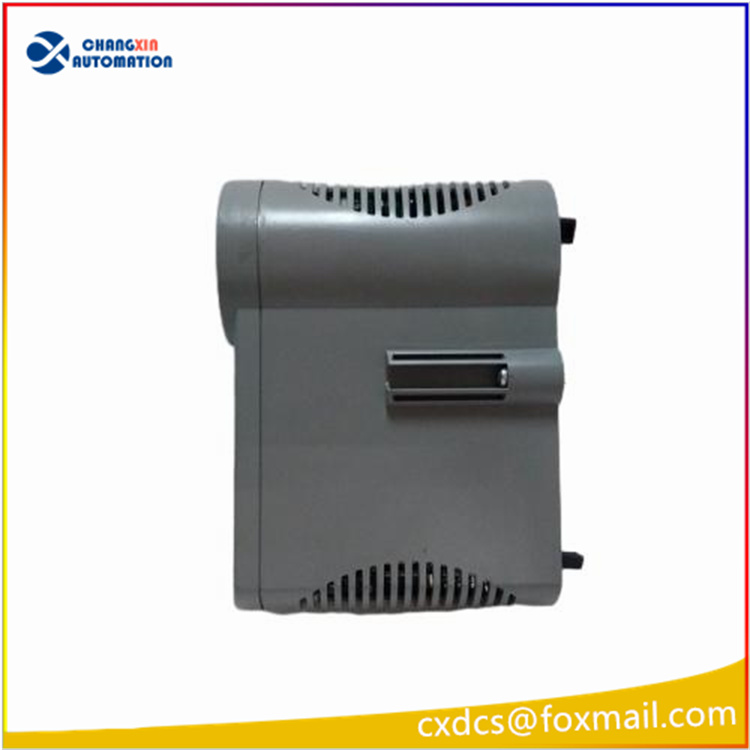

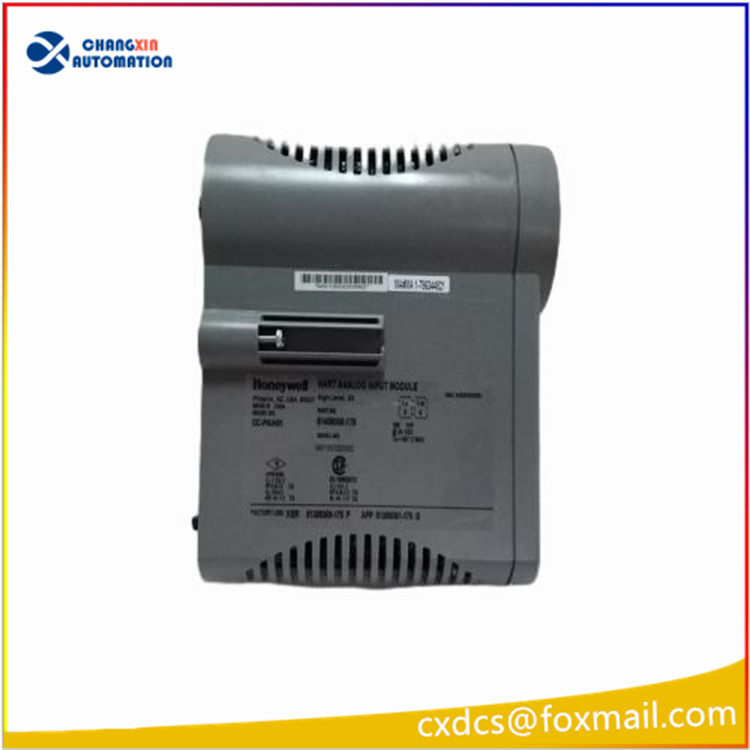

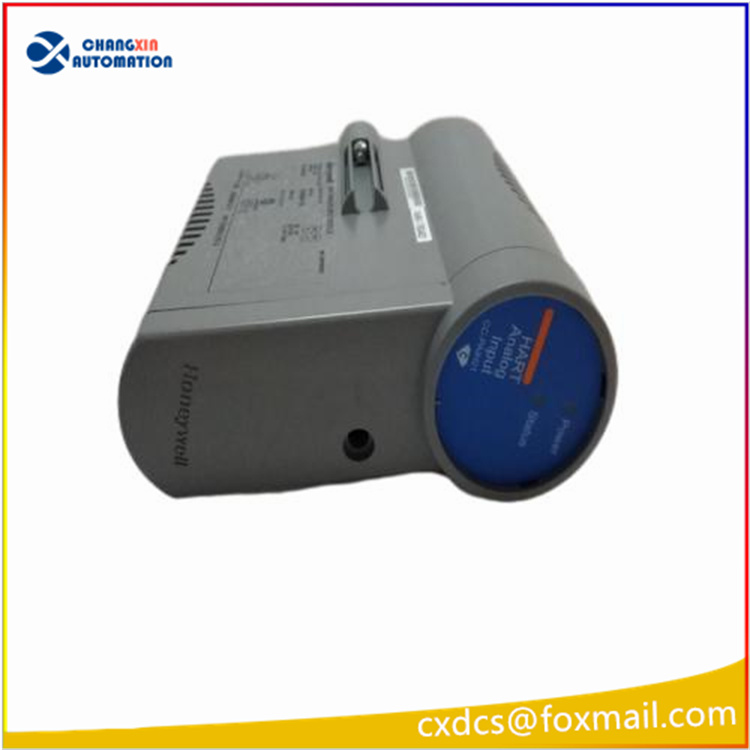

Honeywell CC-PAIH01 51405038-175 Industrial Control Module Analysis
I. Product Positioning and Core Functions
The Honeywell CC-PAIH01 51405038-175 is a high-performance analog input module, specifically designed for industrial automation systems. It is a key component of the Honeywell PKS or C300 series DCS (Distributed Control System). Its core functions include:
Simulation signal acquisition and conversion: Receive external analog signals (such as temperature, pressure, flow rate, etc.) and convert them into digital signals for monitoring, control and data processing by the control system.
High-precision data acquisition: Support simultaneous acquisition of multiple channels to ensure real-time and accuracy of the signals.
HART protocol support: The module is compatible with the HART communication protocol and can achieve two-way digital communication with intelligent sensors to obtain additional data such as device status and diagnostic information.

Analysis of Honeywell CC-PAIH01 51405038-175 Industrial Control Module
I. Product Positioning and Core Functions
The Honeywell CC-PAIH01 51405038-175 is a high-performance analog input module specifically designed for industrial automation systems. It is a key component of Honeywell’s PKS or C300 series DCS (Distributed Control System). Its core functions include:
Analog signal acquisition and conversion: Receives external analog signals (such as temperature, pressure, flow, etc.) and converts them into digital signals for monitoring, control, and data processing by the control system.
High-precision data acquisition: Supports simultaneous acquisition of multiple channels to ensure real-time and accuracy of the signals.
HART protocol support: This module is compatible with the HART communication protocol and can achieve two-way digital communication with intelligent sensors to obtain additional data such as device status and diagnostic information.

Application scenario
Process Control: In industries such as chemical, petroleum, and power, monitor key parameters such as reactor temperatures and pipeline pressures to achieve automated process control.
Equipment Condition Monitoring: Real-time collection of operation data for equipment like motors and pumps, and obtain equipment health status through the HART protocol to prevent failures.
Energy Management: Monitor energy consumption (such as steam and gas flow rates), optimize production processes, and reduce energy consumption.
Environmental Monitoring: In industries such as pharmaceuticals and food, monitor environmental parameters such as temperature and humidity in clean rooms to ensure production compliance.
