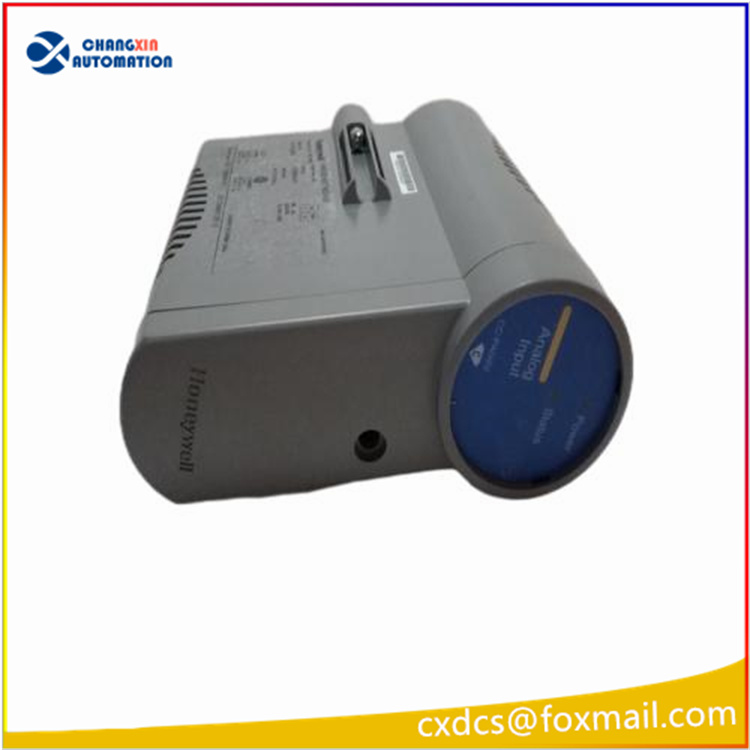

Honeywell CC-PAIX02 51405038-475 is a high-performance analog input module, belonging to the Experion® series of C I/O products of Honeywell. It is often used in conjunction with the C300 controller. Here is a detailed introduction about this module:
I. Main Features
High channel density: Up to 16 analog input channels (12 single-ended and 4 differential) are provided in a single module, effectively reducing the hardware cost of the system and the occupied control cabinet space.
Flexible signal type support: It can receive various commonly used high-level voltage and current signals, such as voltage (0-5V, 1-5V, 0.4-2V) and current (4-20mA, requiring an external 250Ω resistor). Through simple configuration, it can adapt to different field instruments and sensors.
High-precision data acquisition: A 16-bit high-resolution A/D converter is adopted to ensure the accuracy of the conversion from analog signals to digital signals, providing reliable input data for the control system.
Support for HART® protocol: Some models of CC-PAIX02 modules support the HART® protocol, enabling digital communication with intelligent field instruments and achieving higher-level equipment management and diagnostic functions.
Excellent anti-interference performance: It has good common-mode suppression (70 dB, DC to 60 Hz) and differential-mode suppression (19 dB, at 60 Hz), effectively filtering out noise interference from industrial sites, ensuring the accuracy and stability of data acquisition.
Hot-swappable design: Supports hot-swapping, allowing for the replacement or addition of modules while the system is running, improving system availability and maintenance efficiency.
Comprehensive self-diagnosis function: The module has comprehensive self-diagnosis capabilities, capable of real-time monitoring of its own working status and the integrity of input signals, promptly reporting fault information, facilitating maintenance and fault resolution by users.
Application fields
The Honeywell CC-PAIX02 51405038-475 is widely used in various industrial automation fields, and is used to collect high-level analog signals from on-site instruments and sensors, including:
Process Control: In industries such as chemical, petroleum, natural gas, and power, process parameters such as temperature, pressure, flow rate, and liquid level are collected.
Factory Automation: In the manufacturing sector, analog signals from equipment, such as sensor outputs and transmitter signals, are collected.
Water Treatment: Monitoring analog signals such as water quality parameters, flow rate, and pressure to achieve automated control of the water treatment process.
Building Automation: Collecting analog signals such as environmental parameters and equipment operation status to realize intelligent management of building equipment.
Pharmaceutical Industry: Collecting key parameters during the production process to ensure product quality and production safety.
