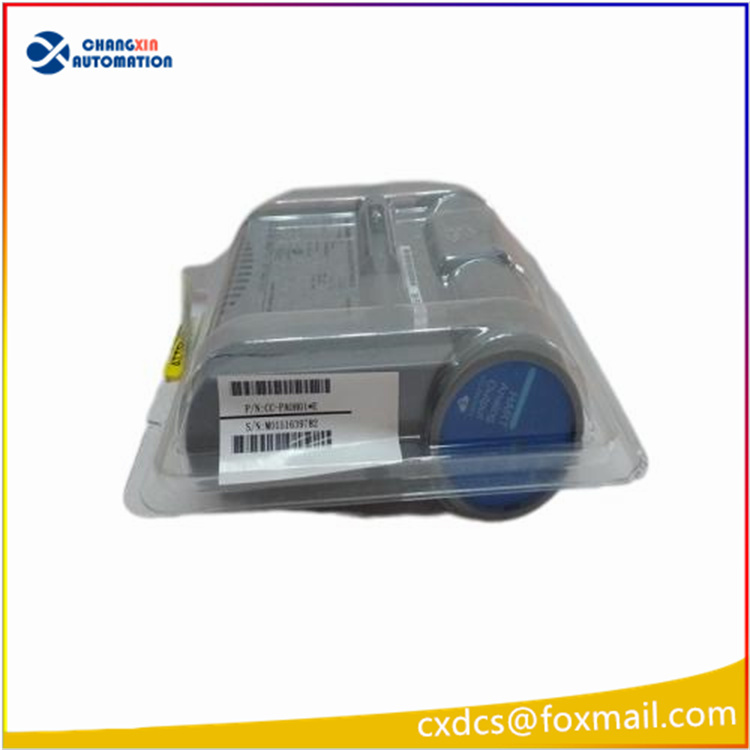

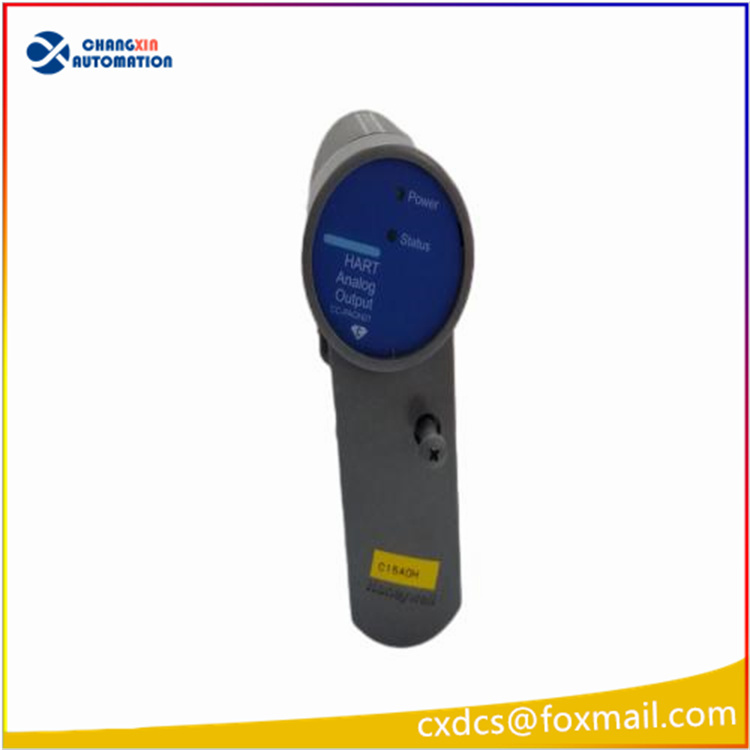

Honeywell CC-PAOH01 Analog Output Module

Honeywell CC-PAOH01 is a C300 series analog output module produced by Honeywell. It features high reliability, high performance, and stability, and supports the HART protocol. It is suitable for various industrial automation and control systems. Here is a detailed introduction about this module:
I. Main Features
High Reliability: The CC-PAOH01 module inherits the high reliability of Honeywell products and can operate stably for a long time in various harsh industrial environments.
High Performance: With advanced circuit design and technology, the module ensures excellent analog signal processing capabilities, meeting the requirements of complex industrial applications.
Support for HART Protocol: This module supports multi-variable instruments of the HART protocol, enabling rapid collection of control variables and enhancing the flexibility and scalability of the system.
Self-Diagnosis Function: The CC-PAOH01 module has a wide range of self-diagnosis functions, which can regularly check its own health status, identify potential problems, and report them at an early stage, thus ensuring the stability and safety of the system.
Redundant Design: Optional redundant design is available to enhance the reliability and availability of the system. When the main module fails, the backup module can quickly take over the work, ensuring the continuous operation of the system.
Multiple Communication Interfaces: Multiple communication interface options are provided, including optical interfaces, which can be used for connecting upper-level devices, facilitating the integration and expansion of the system.

Technical Specifications
Input voltage: 24VDC
Input signal: 4-20mA
Output signal: 4-20mA
Product specifications: Dimensions: 76.2mm x 12.7mm x 86.4mm, Weight: 0.45kg
Working humidity: 5% to 95%RH
Protection level: IP20
Communication rate: Supports multiple communication rates, including 9.6kBit/s, 19.2 kBit/s, 45.45kBit/s, 93.75k kBit/s, 187.5kBit/s, 500kBit/s, 1.5MBit/s, 6MBit/s and 12MBit/s
Fiber optic wavelength: Multi-mode 850nm, 1310nm; Single-mode 1310nm, 1550nm
Transmission distance: Multi-mode 2Km, Single-mode 20Km (Longer distances available upon request)

Application scenarios
The CC-PAOH01 module is widely used in various fields, including but not limited to:
Petrochemicals: Used for monitoring and controlling various process variables such as temperature, pressure, flow rate, etc.
Pharmaceuticals: In the pharmaceutical process, it is necessary to precisely control various parameters to ensure product quality. The high reliability and high precision of the CC-PAOH01 module make it particularly suitable for the pharmaceutical industry.
Food processing: In the food processing process, it is necessary to monitor and control parameters such as temperature and humidity to ensure the safety and quality of food. The CC-PAOH01 module can meet these requirements.
Automobile manufacturing: In the automobile manufacturing process, it is necessary to precisely control various production parameters to ensure product quality and production efficiency. The CC-PAOH01 module can provide reliable data collection and transmission support.
