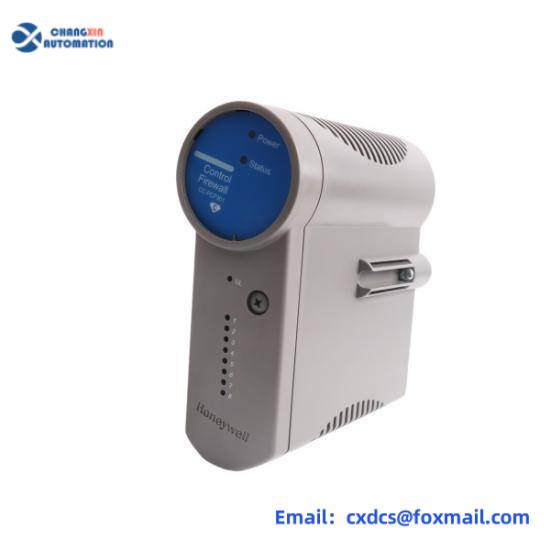

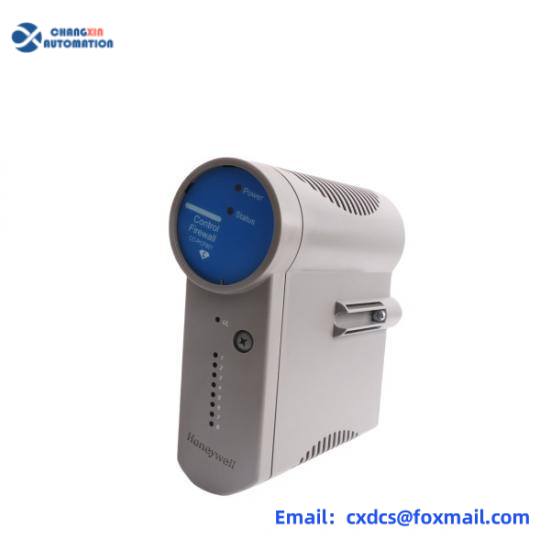

HONEYWELL CC-PCF901 51405047-175 Industrial Control Module

HONEYWELL CC-PCF901 51405047-175 Industrial Control Module is a high-performance firewall module specially designed by Honeywell for industrial automation environments. The following is an introduction to this module:
I. Product Overview
Model: CC-PCF901 51405047-175
Brand: Honeywell
Product Type: Control Firewall Module
Application: Protect industrial automation systems from network attacks, ensuring the integrity of data and the stability of the network.

Main function
Cybersecurity protection:
Utilize advanced firewall technology to effectively defend against various network threats, such as DDoS attacks, port scanning, etc.
Support encryption communication protocols to prevent data from being stolen or tampered with during transmission.
Inbuilt intrusion detection system (IDS) that provides real-time alerts and records suspicious activities, assisting in security audits.
Access control:
Implement refined permission management based on IP addresses, port numbers, or MAC addresses to prevent unauthorized devices from accessing.
Support VLAN division to isolate devices of different security levels, such as production equipment and management terminals.
Data monitoring and management:
Display key indicators such as data throughput and error rate in real time, assisting in network optimization.
Offer rich management functions to facilitate remote monitoring and configuration by users.
Save operation logs and security events to meet compliance auditing requirements.

Technical Features
Ports and Interfaces:
Equipped with 9 10/100 Mbps Ethernet ports (8 downstream ports + 1 upstream port), supporting FTE (Fault Tolerant Ethernet) redundant communication protocol.
Compatible with standard RJ45 interface, supporting industrial communication protocols such as Modbus, TCP/IP.
Performance Parameters:
Operating Voltage: 24VDC direct current power supply, input current 0.112A, rated power approximately 2.7W (calculated based on 0.112A), typical power consumption 10W.
Operating Temperature Range: -40℃ to 85℃, suitable for extreme temperature environments.
Humidity Range: 5% to 95% non-condensing humidity, adaptable to high humidity or humid scenarios.
Vibration/Shock Resistance: 5g peak vibration (20-500Hz), 30g peak shock (11ms), ensuring stable operation during mechanical vibration or transportation.
