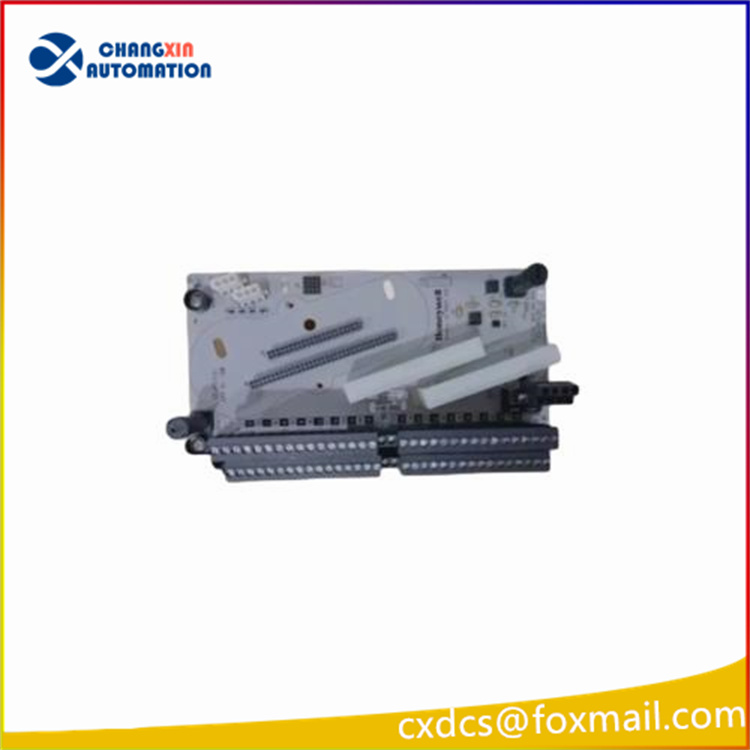

Honeywell CC-TPIX11 IOTA (Input/Output Termination Assembly) Model

Product Description
• The Honeywell CC-TPIX11 IOTA is an I/O interface module designed for Honeywell TDC 3000 and Experion control systems.
• It serves as a communication link between field devices and the controller, ensuring accurate signal processing and reliable system integration.
• The module is built for high stability in industrial automation, supporting continuous operation in demanding process environments.
• It provides secure mounting in Honeywell standard chassis and offers robust electrical isolation for improved safety.

Technical Specifications
• Part Number: CC-TPIX11 IOTA
• Module Type: I/O Interface Module
• Input/Output Capacity: 16 channels (configurable for digital or analog depending on system requirements)
• Signal Type: Supports 24 VDC digital signals or 4–20 mA analog signals
• Power Supply Voltage: 24 VDC nominal
• Current Consumption: Approximately 6–8 W
• Isolation: Channel-to-channel and channel-to-system isolation for noise immunity
• Operating Temperature Range: 0 °C to +60 °C
• Storage Temperature Range: –40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Response Time: Typically < 5 ms
• Dimensions: Approx. 233 mm × 105 mm (standard Honeywell module size)
• Weight: 0.3–0.5 kg
• Mounting: Rack-mounted within Honeywell system chassis
• Application Areas: Distributed control systems, process monitoring, signal interfacing between field devices and controllers
