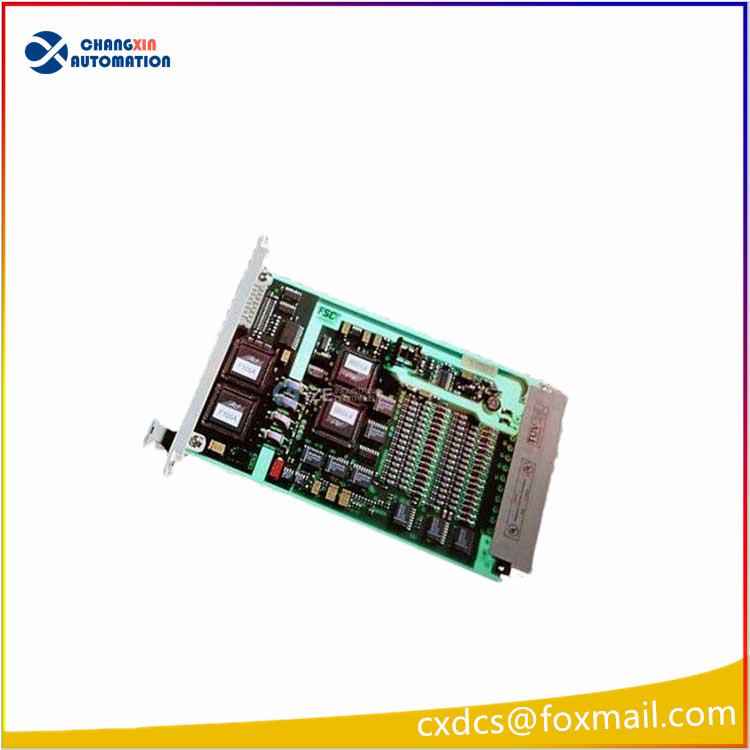

Honeywell FC-RO-1024 Remote Output Module

Product Description
• The Honeywell FC-RO-1024 is a Remote Output Module designed for use in Honeywell process control and safety systems.
• It provides reliable digital output functionality, enabling control of field devices such as relays, solenoids, and indicators.
• The module is intended for distributed control architectures, ensuring high system availability and redundancy options.
• Built for harsh industrial conditions, it offers stable performance and integration within Honeywell’s control platforms.

Technical Specifications
• Part Number: FC-RO-1024
• Module Type: Remote Output Module
• Output Channels: 16 digital output channels
• Output Type: Relay or solid-state, depending on configuration
• Output Voltage Range: 24 VDC nominal
• Current Rating per Channel: Up to 0.5 A
• Isolation: Channel-to-channel and channel-to-system isolation to ensure safety and reduce interference
• Response Time: Typically < 5 ms switching time
• Operating Temperature Range: 0 °C to +60 °C
• Storage Temperature Range: –40 °C to +85 °C
• Relative Humidity: 5% to 95% non-condensing
• Power Consumption: Approx. 8–10 W depending on output loading
• Dimensions: Standard Honeywell rack-mount module size, approx. 233 mm × 105 mm
• Weight:  0.3–0.5 kg
• Mounting: Installs in Honeywell system chassis or remote I/O baseplate
• Applications: Field device actuation, process control outputs, alarm signaling
