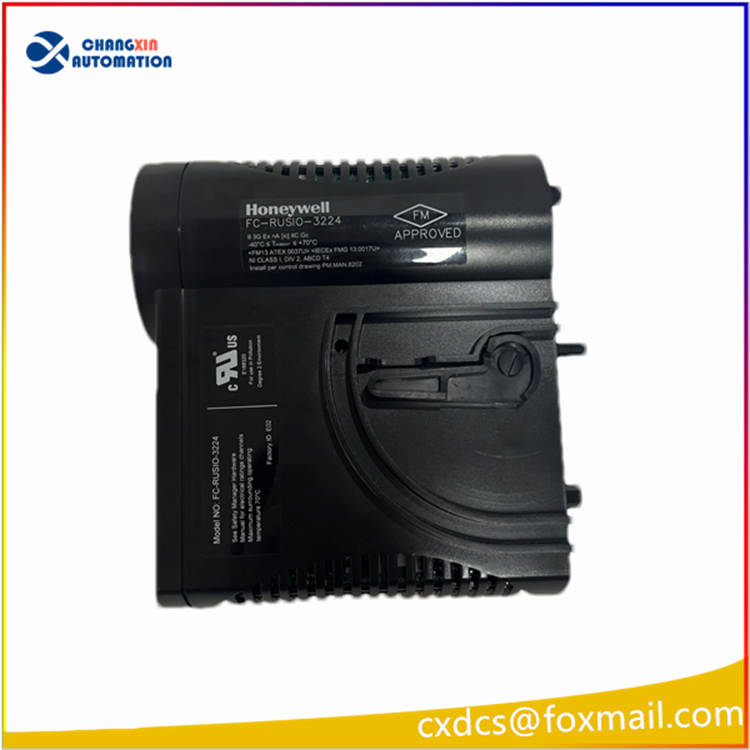

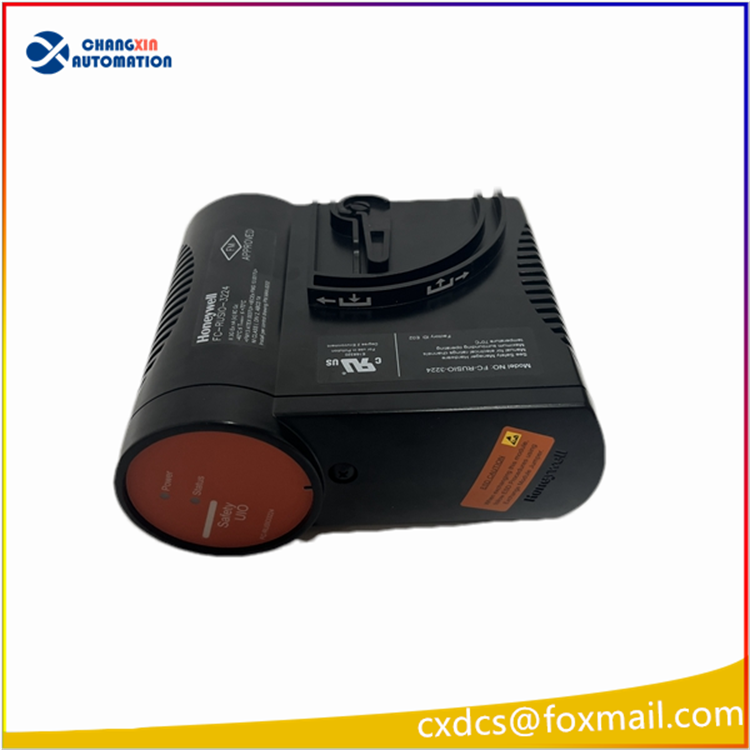

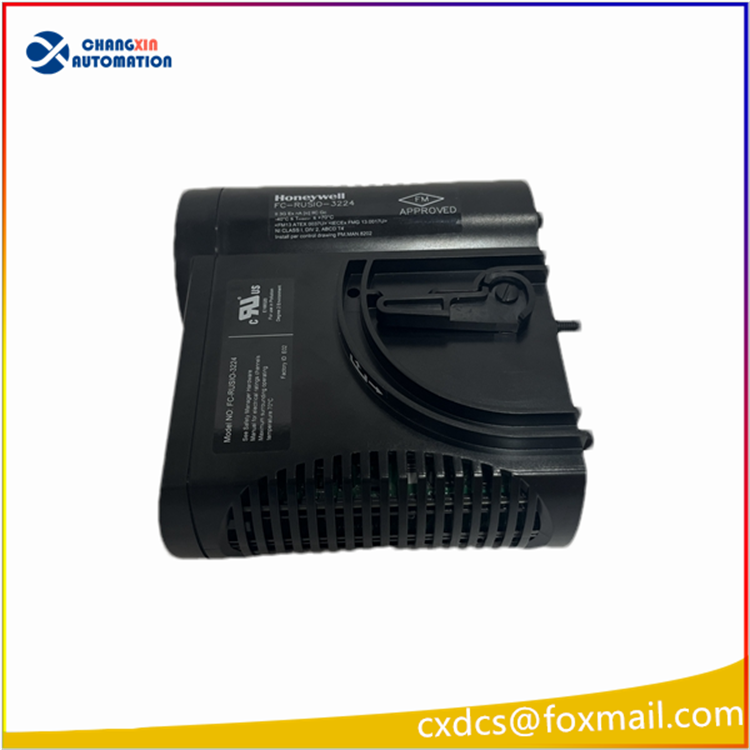

Honeywell FC-RUSIO-3224 is a remote universal safety input/output (I/O) module, specifically designed for industrial automation systems, featuring high reliability and functional safety. Here is a detailed introduction of it:
Core function
Multi-channel configuration:
Provides 32 general-purpose safety I/O channels. Each channel can be flexibly configured through software as digital input (DI), digital output (DO), analog input (AI), or analog output (AO).
Analog input supports 0-20mA or 4-20mA current signals, as well as voltage signals, meeting the needs of various sensors.
High-precision signal processing:
Integrates high-precision AD/DA converters to ensure the accuracy of analog signal acquisition and output, providing precise control for industrial processes.
Communication protocol support:
Supports mainstream industrial protocols such as EtherNet/IP, Modbus TCP/RTU, facilitating data exchange with other devices.
Connects to the enterprise local area network via Ethernet interface to achieve remote monitoring and management.
Remote monitoring and diagnosis:
Built-in remote monitoring function, allowing users to view the equipment operation status in real time through the upper computer software.
Automatically triggers alarms in case of faults, and provides detailed diagnostic information to accelerate problem location and resolution.
Redundancy and protection mechanism:
Modules operate in redundant parallel mode, with a single point failure not affecting the overall system.
Integrated overcurrent, overvoltage, and short-circuit protection to ensure stable operation of the equipment in harsh environments.
Anti-interference design:
Digital input/output interfaces adopt optical isolation technology, effectively isolating electrical interference, enhancing system stability. Technical Specifications
Input voltage: 24VDC (220VAC is supported in some scenarios, please confirm with specific model)
Power: 2700W (High power design meets the demand for driving multiple devices)
Protection level: IP65 (Dustproof and waterproof, suitable for harsh environments)
Size: 26×33×37cm (Modular design, convenient for installation and expansion)
Weight: 2.3kg (Compact structure, saves space)
Number of channels: 32 universal safety I/O channels (32 analog inputs, 24 analog outputs)
Application scenario
Oil and gas industry:
Used in emergency shutdown systems (ESD), fire and gas detection systems (FGS), as well as safety-critical applications in drilling, production, refining, transportation, and storage facilities.
Monitor critical parameters such as pressure, temperature, and leakage, and perform safety shutdown operations in dangerous situations.
Chemical and petrochemical industry:
Used in factories handling toxic, flammable, or corrosive substances, for safety interlock systems, over-temperature/over-pressure protection, and reactor safety control.
Prevent accidents such as explosions and leaks, ensuring production safety.
Electricity industry:
Used for remote monitoring in substations and power plants, collecting real-time parameters such as voltage and current to ensure grid safety.
Manufacturing industry:
Monitor the status of production line equipment (such as robotic arms, conveyor belts), achieving fault early warning and production scheduling optimization.
Smart buildings:
Integrated into smart building systems to manage equipment such as air conditioning and lighting, achieving energy optimization and comfort regulation.
Summary of Advantages
High Precision and Reliability: The AD/DA converter and redundant design ensure the accuracy of signal processing and the stability of the system.
Strong Compatibility: Supports multiple communication protocols and seamlessly integrates with existing industrial networks.
Easy Maintainability: Remote diagnostic function reduces the frequency of on-site inspections and lowers operation and maintenance costs.
Environmental Adaptability: IP65 protection level and wide temperature design, suitable for harsh environments such as high temperatures, high humidity, and dust.
