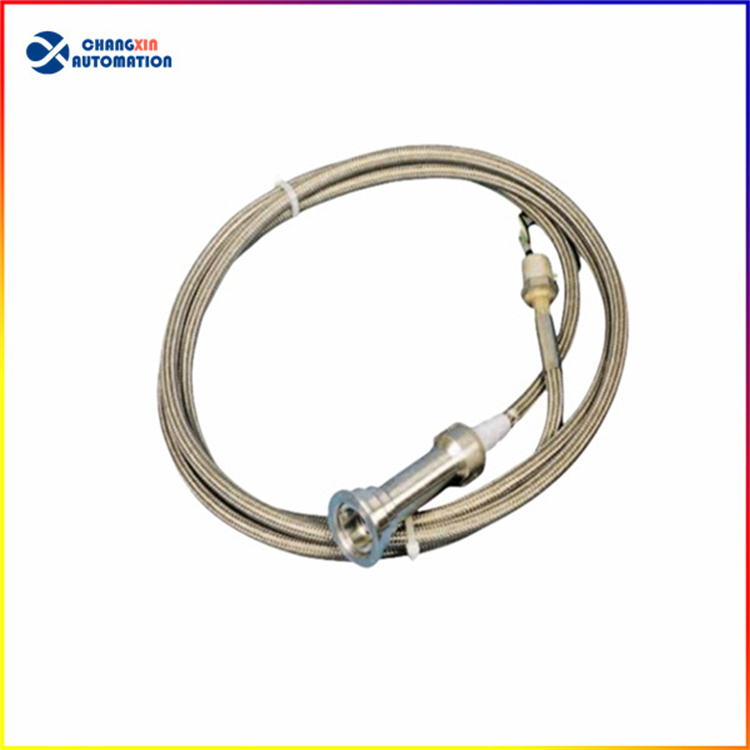

Honeywell LG1093AC01 Flame Sensor

product description

HONEYWELL LG1093AC01 261A1812P012 Flame Detector C-7012F. —-The Honeywell LG1093AA24 is an ultraviolet (UV) flame sensor designed for detecting flames in various industrial and commercial applications.

Key Features：

UV Flame Detection:Uses ultraviolet light to detect flames

Effective across a range of applications

Sensitivity and Speed:Highly sensitive (< 5 mW/cm²)

Fast response time (< 10 milliseconds)

Durability:Rugged design for long-lasting performance

IP65 rated enclosure for protection against dust and water

Field of View:80° field of view provides wide coverage

Temperature Range:Operates in temperatures from -40°C to 85°C

Fire detection systems：

Combustion control systems

Industrial process control

Safety monitoring in various industrial environments.

Technical Specifications：

Detection range: 250 to 350 nanometers

Field of view: 80°

Operating temperature range: -40°C to 85°C

Enclosure rating: IP65

Specifications
• Sensor Type: Geiger Mueller-type sensor phototube
• UV Detection Range: 180-260 nm
• Temperature Range: -40°C to 176°C
• Shelf-life: 2 years
• MTBF: 10,000 hours
• Operating Hours: Over one billion (10^9) hours
Hardware Outputs
• EG1033AA: Transistor open collector
• EG1033AB and EG1033AC: Relay contacts (SPDT)
Features
• High Sensitivity: Fast Flame Present Response Time (0.1 sec typical)
• Flame Loss Response Time: 0.2 sec max.
• Voltage Requirements for Amplifiers:
◦ 28 VDC
◦ 20-35 VDC
◦ 115 VAC
• Operating Distance: Up to 330 meters (1000 feet) from sensor to amplifier
• Qualified for: General Electric turbines
• Compliance:
◦ CE mark for EMC 89/336/EEC, LVD 73/23/EEC
◦ ATEX Explosive Atmosphere 94/9/EC (EEx d IIA T3 or EEX d IIC T3, Zone 1 and 2)
◦ Factory Mutual approval for explosive atmospheres (Class I, Div 1 and 2, Groups B, C, and D)
Additional Information
• Flame Sensor Dimensions: 1.73″ O.D. by 0.14″ wide flange
• Cable: 2-conductor armoured cable, 9 feet (2.7 meters) in length
• Viewing Window Rating: 428 mbar (6.3 psi)
• Weight: 0.91 kg
• Shipping Weight: 3 kg
