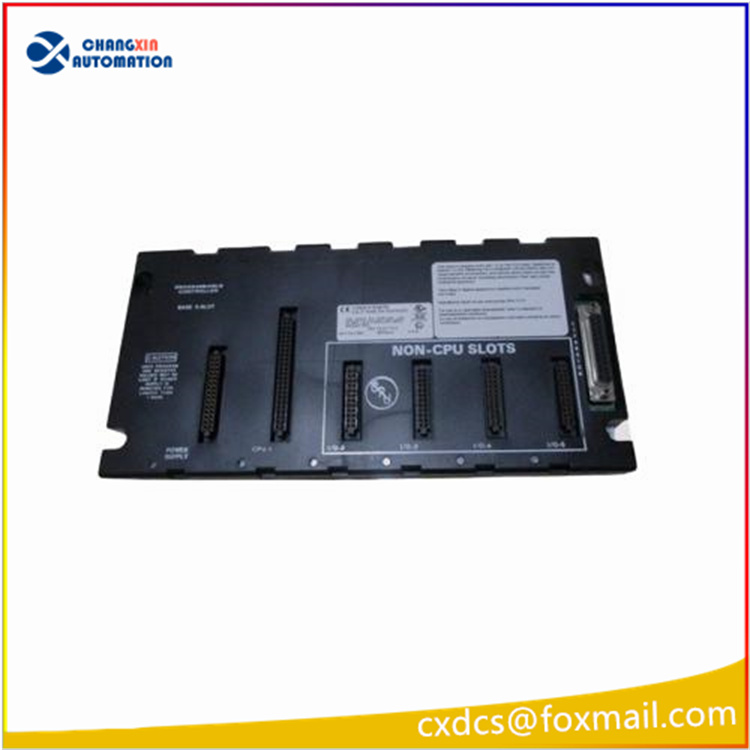

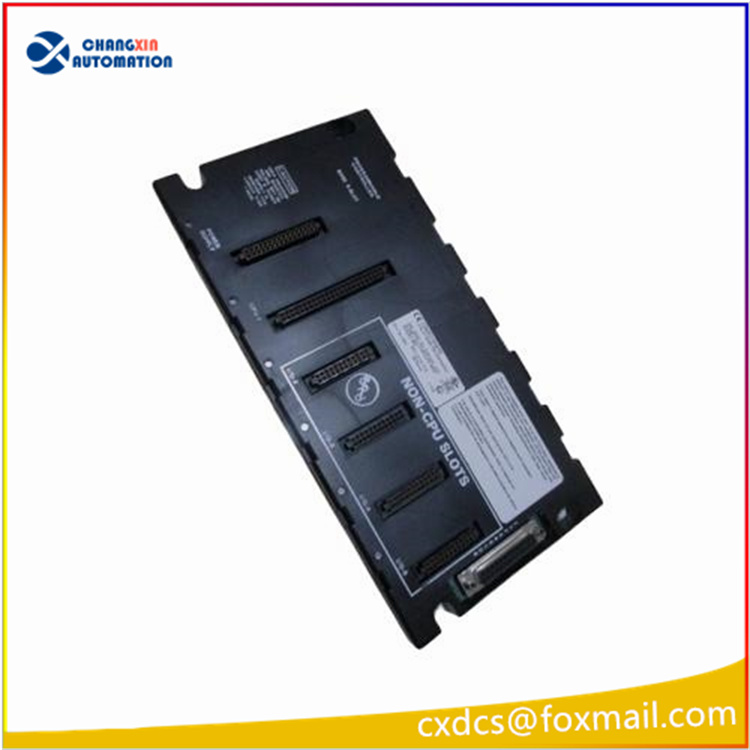

IC693CHS397M General Electric anuc base plate

The IC693CHS397M is a 5-slot modular CPU baseboard launched by General Electric, belonging to the GE Fanuc Series 90-30 PLC platform. It is specially designed for industrial automation control systems, featuring high reliability and safety. It is applicable to fields such as CNC machinery, oil and gas, metallurgy, power, automotive manufacturing, and rail transit.
I. Product Overview
Model: IC693CHS397M (Some documents may label it as IC693CHS397, which could be a variant or a labeling difference).
Brand: General Electric (GE), USA.
Series: GE Fanuc Series 90-30 PLC platform.
Function: As a CPU baseboard, it provides modular expansion capabilities for PLC systems, supporting the collaborative operation of CPU, I/O, communication, and other modules.

II. Core Features
Modular Design
It offers five expansion slots, allowing flexible configuration of CPU, I/O, communication, and other modules to meet the demands of various industrial scenarios. The leftmost slot is dedicated to power modules (only power modules are supported), ensuring stable power supply. Slot 1 supports CPU modules or special option modules, while the other slots can be freely configured.
High Reliability
It features an industrial-grade design, capable of withstanding harsh environments such as high temperatures, vibrations, and electromagnetic interference. Some models (e.g., IC693CHS397L) have enhanced EMI capabilities, further reducing the impact of electromagnetic interference on the system.
Safety Performance
The metal backplane of the baseboard must be grounded to minimize the risk of electric shock (connect using AWG #12 wire and ring terminals to the ground terminal). All baseboards in the same Series 90-30 PLC system must share a common ground connection to ensure system stability.
Compatibility
It is compatible with PACSystems and VersaMax systems and can seamlessly work with other GE modules such as CPU, I/O, and communication modules.

IC693CHS397M is widely applied in the following fields:
Numerical control machinery: Achieving precise motion control.
Petroleum and natural gas: Operating stably in harsh environments and supporting remote monitoring.
Metallurgy: Tolerating extreme conditions such as high temperatures and dust.
Electricity: Ensuring the reliable operation of power grid automation systems.
Automobile manufacturing: Supporting the automation control of production lines.
Rail transportation: Guaranteeing the stable communication of train signal systems.
