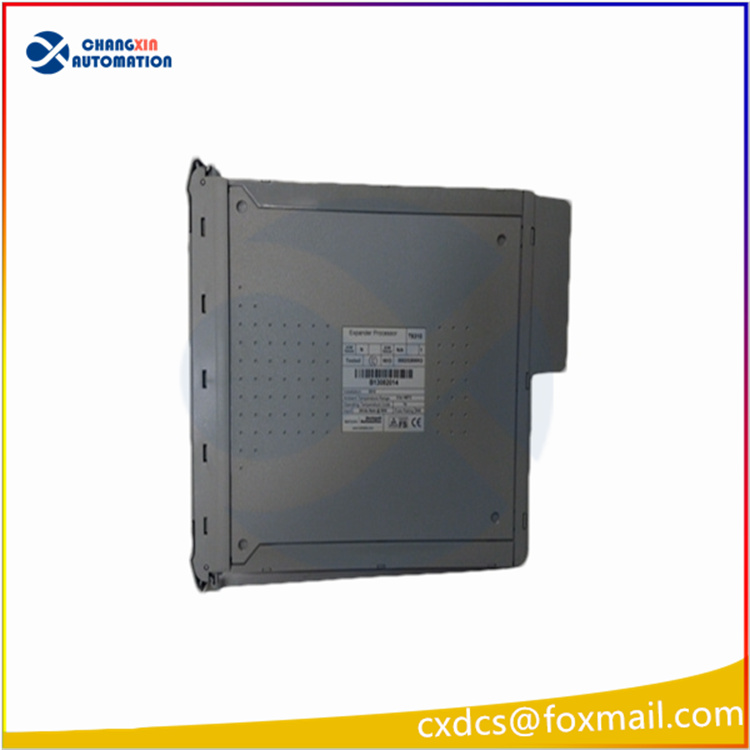

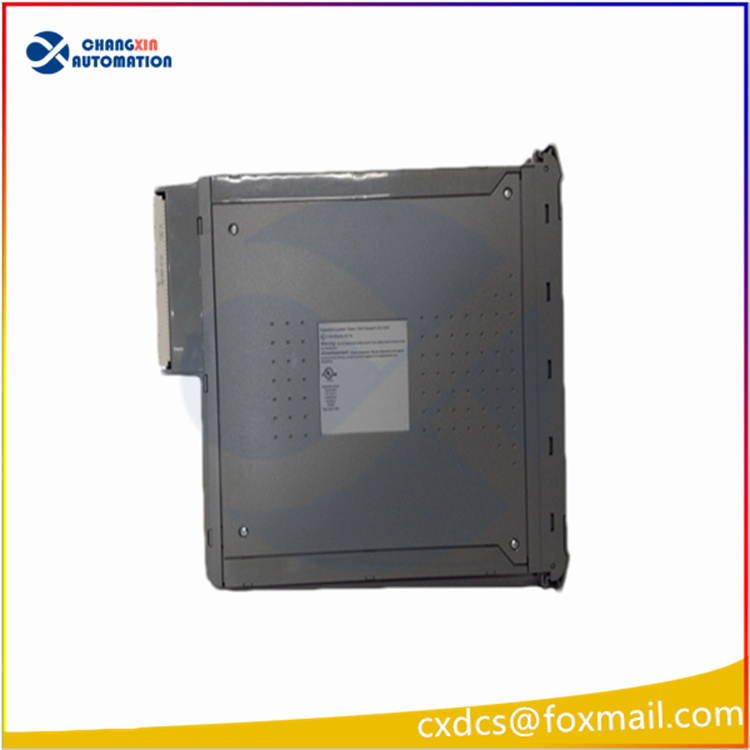

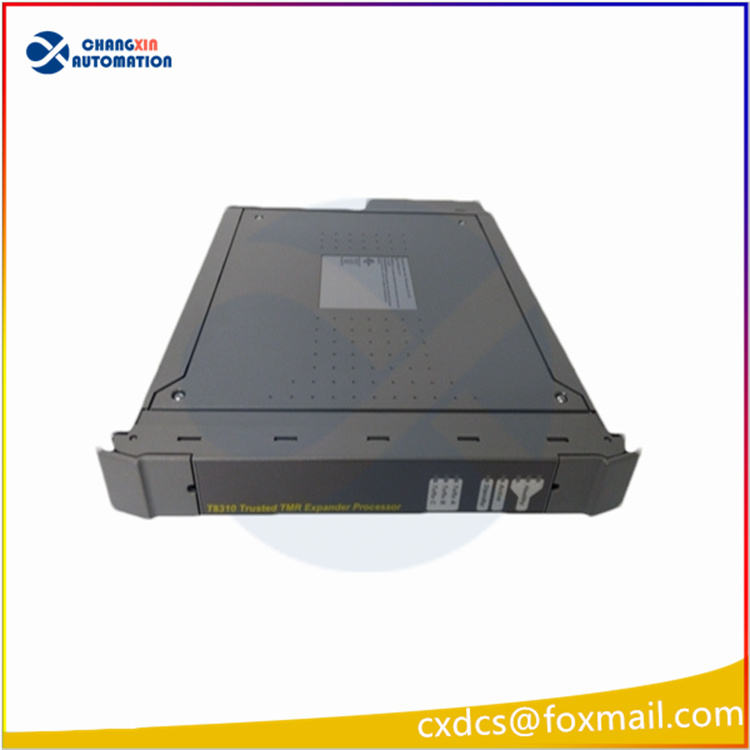

ICS TRIPLEX T8310 Trusted TMR Expander Processor | CPU Module

Rockwell Automation ICS TRIPLEX T8310 Trusted TMR Expander Processor.The ICS TRIPLEX T8310 is a CPU that is specifically designed as a vector processor. It is a communication spare part that is used in various applications, particularly in SCXI systems.  The Trusted TMR Expander Processor Module resides in the processor slots of the Trusted Expander Chassis and provides the ‘slave’ interface between the Expander Bus and the Expander Chassis Backplane. The Expander Bus allows multiple chassis systems to be implemented using Unshielded Twisted Pair (UTP) cable connections whilst maintaining the fault tolerant, high bandwidth Inter-Module Bus (IMB) capabilities. The Module provides fault containment for the Expander Bus, the Module itself and the Expander Chassis, ensuring that the effects of these potential faults are localised and system availability maximised. The Module is fault tolerant with HIFT TMR architecture. Comprehensive diagnostics, monitoring and testing provide rapid fault identification. Hot-standby and module spare configurations are supported, allowing automatic and manual repair strategies.[Click on the understanding of related products:ICS TRIPLEX T9451]

Technical Specifications
Input voltage range: Generally 0-6V. It can accurately collect and process analog signals within this voltage range.
Number of channels: Equipped with 60 analog input channels, capable of connecting multiple sensors simultaneously to achieve synchronous collection and processing of multiple analog signals.
Accuracy:

Possesses high measurement accuracy, capable of precisely converting analog signals into digital signals, ensuring the collected data is accurate and reliable.
Sampling rate: Supports a high sampling rate, able to quickly sample analog signals to meet the requirements of real-time applications with high performance. Functional Features
High reliability:

The TMR architecture and fault-tolerant design enable stable operation in harsh industrial environments, such as high temperatures, humidity, and strong electromagnetic interference, ensuring the continuity and stability of the system in critical tasks.
High precision acquisition: It can accurately acquire analog signals, providing accurate data support for the control system, which helps improve control accuracy and system performance.
Rich diagnostic functions:

It has self-diagnosis capabilities, which can monitor the working status of the module in real time, detect its own faults, and provide corresponding alarm signals, facilitating maintenance personnel to promptly identify and solve problems.
Flexible configuration: It can be configured through software or hardware methods to set the parameters of the input channels, such as range, filtering parameters, sampling rate, etc., to meet different application requirements.
Electrical isolation: It realizes electrical isolation between the input channels and other parts of the system, enhancing the module’s anti-interference ability, protecting the system from external electrical interference, and also preventing module faults from causing damage to other equipment.
