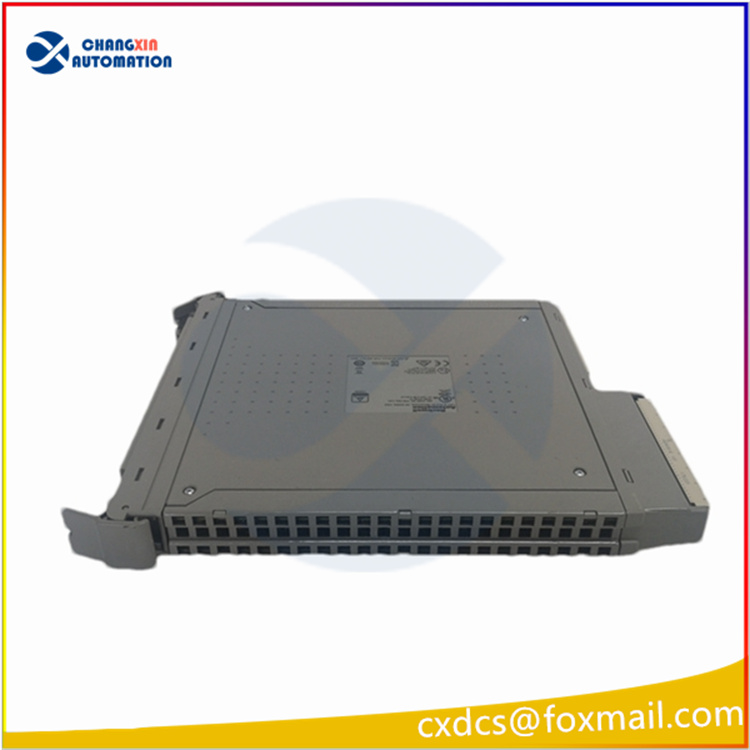

ICS Triplex T8461C Trusted TMR Digital Output Module

Core Analysis of ICS Triplex T8461C Trusted TMR Digital Output Module
I. Product Positioning and Core Value
The ICS Triplex T8461C is a digital output module based on the TMR (Triple Modular Redundancy) architecture, specifically designed for industrial safety-critical systems. Its core value lies in ensuring the continuous output of reliable control signals under extreme working conditions through hardware-level redundancy and fault-tolerant mechanisms. It is suitable for fields with strict safety requirements such as nuclear power, chemical engineering, and oil and gas.
II. Technical Architecture and Functional Features
TMR Triple Redundancy Design
The module integrates three independent channels internally, each containing a complete microprocessor, memory, and voting circuit.
The output signal is determined through a three-out-of-two voting mechanism. Even if a single channel fails, the system can still output the correct signal, achieving zero-fault interruption operation.
Electrical Parameters and Interfaces
Input Voltage: 120V DC (compatible with industrial standard DC power supplies).
Output Channels: Supports multiple digital outputs (the exact number of channels should refer to the model manual; some materials mention that similar modules have 40 channels).
Isolation Design: Employs 2500V pulse withstand isolation to block interference from the field side and protect the control loop.
Fault Diagnosis and Self-Testing
Automatic Line Monitoring: Continuously detects open circuit and short circuit faults in the field wiring and displays the status through the front panel LED indicator lights.
On-Board Event Sequence (SOE): Records the timestamp of output state changes with a resolution of 1ms, facilitating accident traceability.
Hot Swap Support: The module can be replaced while the system is running, eliminating the need for downtime maintenance.
Safety Certification
Complies with IEC 61508 SIL3 functional safety standards and has been certified by TUV, meeting the safety compliance requirements of industries such as nuclear power and chemical engineering.

Typical Application Scenarios
Nuclear Power Plant Safety Systems
Control emergency shutdown valves of reactors, containment isolation valves and other critical equipment to ensure reliable operation in the event of earthquakes, loss of water and other accidents.
Chemical Process Control
Drive emergency relief valves, feed cut-off valves to prevent overpressure or material leakage accidents in reactors.
Safety Instrumented Systems (SIS) for Oil and Gas Platforms
Monitor wellhead safety valves, fire and gas detection systems to achieve rapid isolation in the event of fire or leakage.
Railway Signal Control
Output turnout control, train route signals to ensure train operation safety (subject to specific industry certifications).

Summary
The ICS Triplex T8461C is based on a TMR redundant architecture and nuclear power-grade safety certification, providing a highly reliable digital output solution for industrial safety-critical systems. Its features such as 120V DC output, 1ms SOE recording, and hot-swappable maintenance make it the preferred module for SIS systems in fields like nuclear power and chemical engineering. When selecting, it is necessary to specify parameters such as voltage and channel count, and purchase through official channels to ensure the long-term stable operation of the system.
