GE IS200TBCIH1C is an important component of the GE Speedtronic MKVI gas turbine control system. Here is a detailed introduction to it:
I. Basic Functions
Analog Output Terminal Board: The IS200TBCIH1C is used as an analog output terminal board, which helps generate and distribute analog output signals. These signals are crucial for monitoring and controlling various devices in the turbine system.
Noise and Surge Suppression: Filters are designed to reduce high-frequency noise and suppress surges, ensuring signal integrity and system stability.
Current Load Capacity: The first 21 outputs can handle 2.5mA of current per point, and the last three outputs have a load capacity of 10mA, meeting different output requirements.
Hardware Configuration Simplification: No hardware settings or jumpers are required, simplifying the integration process within the Speedtronic MKVI system.
Specifications and Parameters
Product Type: Terminal Board
Manufacturer: General Electric (GE)
Series: MKVI Series
Description: Analog Output Terminal Board
Terminal Blocks: Two long green blocks, each with a maximum of 24 terminals
Connections: 6 socket connector ports, each with 37 female connector points

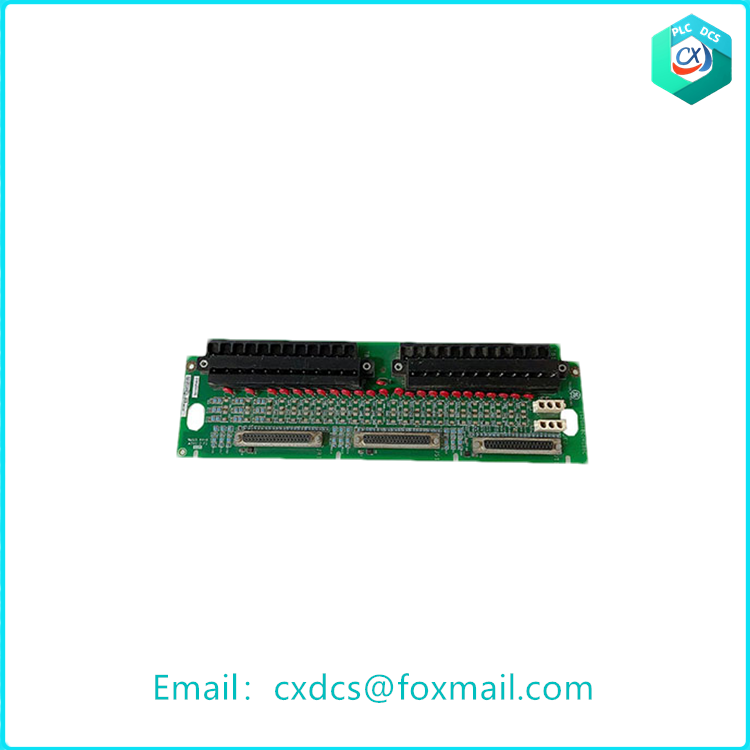

Potentiometers: 16 small potentiometers, arranged in two rows, enhancing control and adjustment capabilities, allowing for fine-tuning of the output signal
Operating Voltage: 24Vdc/120Vac
Output Frequency: 50/60Hz
Specification Dimensions: 101623
Color: Standard Color
Selling Area: Domestic and Foreign
Warranty: One Year
