product description：

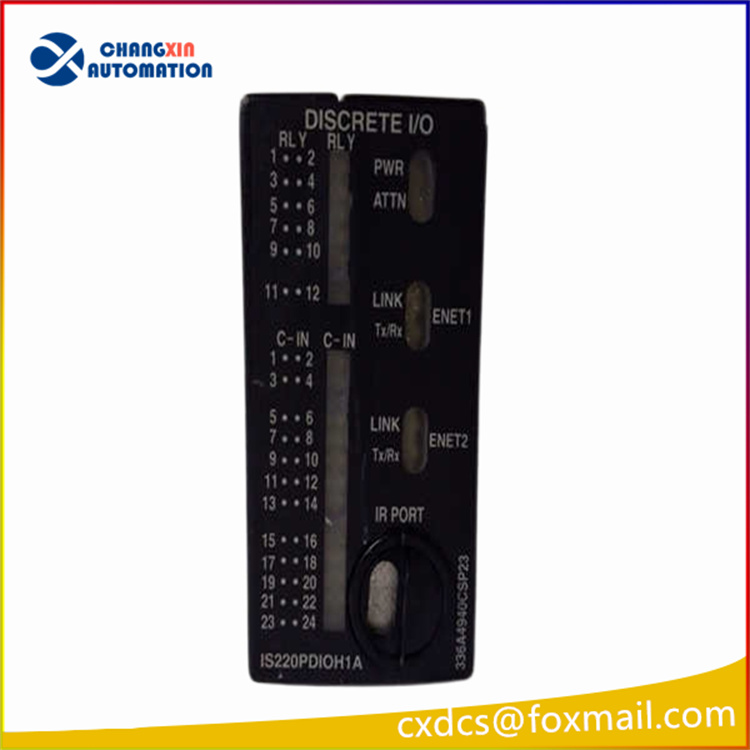

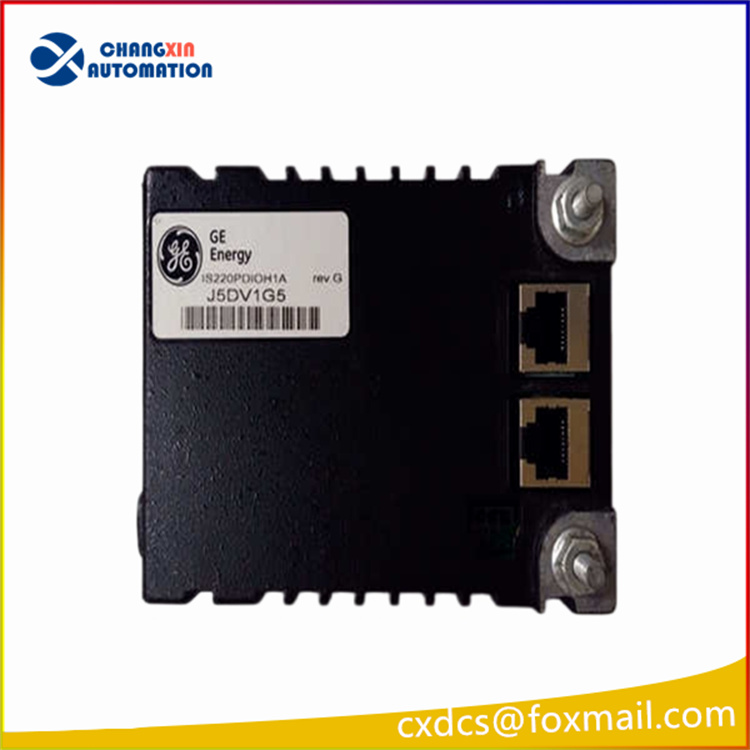

The GE IS220PDIOH1A is a digital input/output module in the Mark VI series of control systems produced by General Electric (GE). It features high reliability, modular design, and flexible configuration, and is widely used in industrial automation, process control, power systems, and other fields.
I. Product Overview
The IS220PDIOH1A is a core component of the GE Mark VI series control system and belongs to the discrete input/output module. It connects one or two I/O Ethernet to the discrete I/O terminal board through an electrical interface, achieving the collection and control of on-site digital signals (such as switch signals and discrete signals). This module adopts a redundant design and supports dual power input, ensuring stable operation in harsh industrial environments.
II. Core Functions
Digital Signal Acquisition and Output
Collect digital signals from on-site devices (such as limit switches, buttons, and relays), and convert them into digital signals recognizable by the control system.
Output digital signals from the control system to external devices (such as motors and valves) to achieve equipment control.
Redundant Power Supply Design
Supports dual power supply redundancy input (DC 9-36V, typical DC24V), with a power consumption of less than 4W. It features DC1500V voltage isolation and reverse connection protection to prevent system shutdown due to power failure.
Communication and Protocol Support
Equipped with two 10/100 Ethernet ports, supporting bus standards such as DeviceNet, CANOpen, and CAN BUS, with a communication rate up to 1Mbps.
Communicates with the controller via IONet network and supports Dynamic Host Configuration Protocol (DHCP) for automatic address allocation.
Fault Diagnosis and Protection
Built-in 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions to extend equipment lifespan.
Provides fiber link failure and power failure alarm outputs (contact capacity: DC48V/1A) and supports real-time status monitoring.
Technical Specifications
Power Supply: Dual redundant power input (DC 9-36V), typical DC 24V, power consumption < 4W.
Communication Interface: 2 10/100 Ethernet ports, supporting RJ45 connectors.
I/O Channels:
Input Channels: 24 DI (Digital Input), supports optical isolation up to 1500V.
Output Channels: 12 C-type relay outputs, contact capacity DC 48V/1A.
Environmental Adaptability:
Operating Temperature: -10°C to 70°C (wide temperature version available -40°C to +85°C).
Relative Humidity: ≤ 90% (no condensation).
Protection Grade: IP30, aluminum reinforced casing, suitable for industrial environment.
Mechanical Characteristics:
Dimensions: 132mm (height) × 105mm (depth) × 52mm (width).
Application scenarios
Industrial automation
Control equipment such as motors, valves, and pumps to achieve automation of production processes.
Example: In automotive manufacturing, the IS220PDIOH1A collects sensor signals on the production line and controls the movement of the robotic arm.
Process control
Monitor continuous production processes (such as in chemical and food processing) to ensure stable parameters.
Example: In a chemical reaction vessel, the module collects temperature and pressure signals to control the heating device and valve opening.
Power system
Monitor and control power plant and substation equipment to ensure safe operation of the power grid.
Example: In gas turbine control, the IS220PDIOH1A collects speed and vibration signals to achieve protection logic control.
Building automation
Control lighting, air conditioning, and other equipment to improve energy management efficiency.
Example: By collecting light sensor signals through the module, the lighting brightness is automatically adjusted.
V. Product advantages
High reliability
Use industrial-grade components, with redundant design and multiple protection mechanisms to ensure stable operation in harsh environments.
Modular design
Support hot swapping, facilitating installation and maintenance, and reducing system downtime.
Flexible configuration
Compatible with various terminal boards (such as TDBS, TDBT), supporting single-mode or TMR (triple-module redundancy) applications to meet different control requirements.
Seamless integration
Seamlessly integrated with GE Mark VI control system, simplifying system integration process and reducing development costs.
