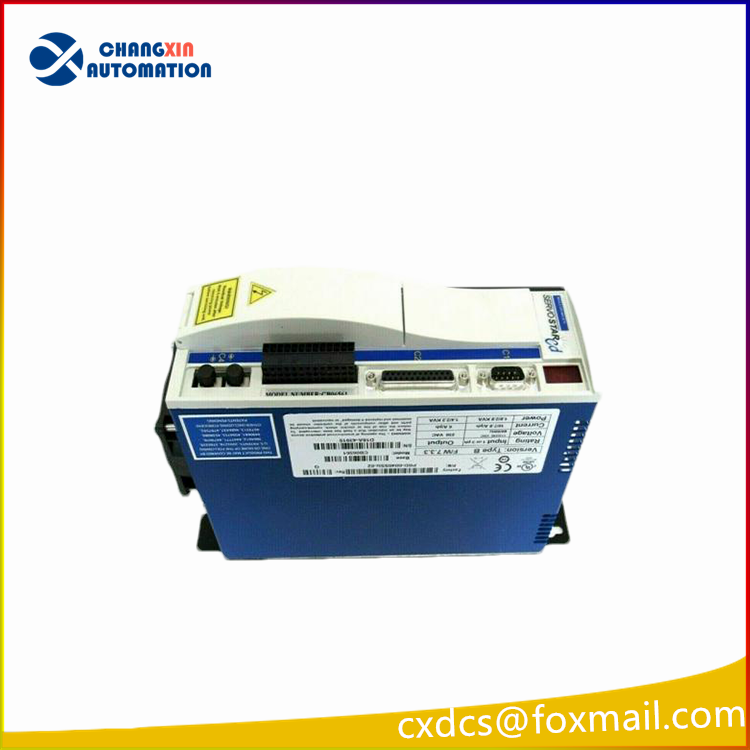

Kollmorgen CB06560 PRD-B040SAIB-62 Servo Drive Core Information Summary
I. Product Positioning and Core Functions
The Kollmorgen CB06560 PRD-B040SAIB-62 is a high-performance servo driver launched by Kollmorgen, which is a core control component in the field of industrial automation. Its core functions include:
High-precision motion control: Supports high-resolution encoder feedback to achieve micron-level positioning accuracy, suitable for scenarios with strict precision requirements such as CNC machines and packaging machinery.
Dynamic response optimization: Utilizes advanced current loop, speed loop and position loop three-loop control algorithms to ensure the motor remains stable during high-speed start-stop and load changes.
Multi-axis collaborative control: Supports industrial bus protocols such as EtherCAT and CANopen, and can be seamlessly integrated with PLCs, HMIs, etc., to achieve synchronous or interpolation motion of multiple axes.
Environmental adaptability: With a protection rating of IP67 (for some models), it has dust-proof and water-proof capabilities, and can operate stably in an environment ranging from -10°C to +40°C, adapting to harsh industrial sites.
Technical Parameters and Specifications
Parameter Categories Detailed Specifications
Model CB06560 PRD-B040SAIB-62
Brand Kollmorgen (Colmorgen)
Output Type Current output (4mA – 20mA)
Number of Channels 4 independent control channels
Output Frequency 60Hz
Voltage Range 24V DC (some models support 10 – 50V DC wide voltage input)
Power Range Ranges from 0.1kW to 7.5kW (specifically depending on the motor match)
Control Mode Position mode, speed mode, torque mode (supports mixed mode switching)
Communication Interface RS485, EtherCAT, CANopen (optional PROFINET, DeviceNet, etc.)
Protection Functions Real-time protection for overvoltage, undervoltage, overcurrent, overheating, short circuit, encoder failure, etc.
Size and Weight Specifications vary by model (e.g., 251mm × 213mm, approximately 2.3kg)
Application scenarios and industry cases Manufacturing industry
Case: In the automotive component processing line, the drive servo motor is used to achieve high-precision drilling, milling and other processes, resulting in a 15% increase in product quality rate.
Advantages: Through dynamic response optimization, it reduces processing vibration and extends the lifespan of the cutting tools.
Packaging Machinery
Case: On the beverage filling line, the control of multi-axis synchronous movement ensures that the bottle body positioning is precisely aligned with the filling head, with a speed of 1200 bottles per minute.
Advantages: Supports the EtherCAT bus, achieving microsecond-level synchronization, avoiding liquid leakage.
Printing Machinery
Case: The drive of the printing cylinder and the paper transmission system move in coordination, with the registration accuracy reaching ±0.05mm, meeting the requirements of high-end color printing.
Advantages: Through torque mode control, it adapts to different paper thicknesses and reduces the risk of paper breakage. Medical equipment
Case: In the CT scanner, the rotation table and the detector are precisely synchronized, resulting in a 30% increase in scanning speed and an improvement in image resolution.
Advantage: Low noise design (<50dB), meeting the requirements of the medical environment.
