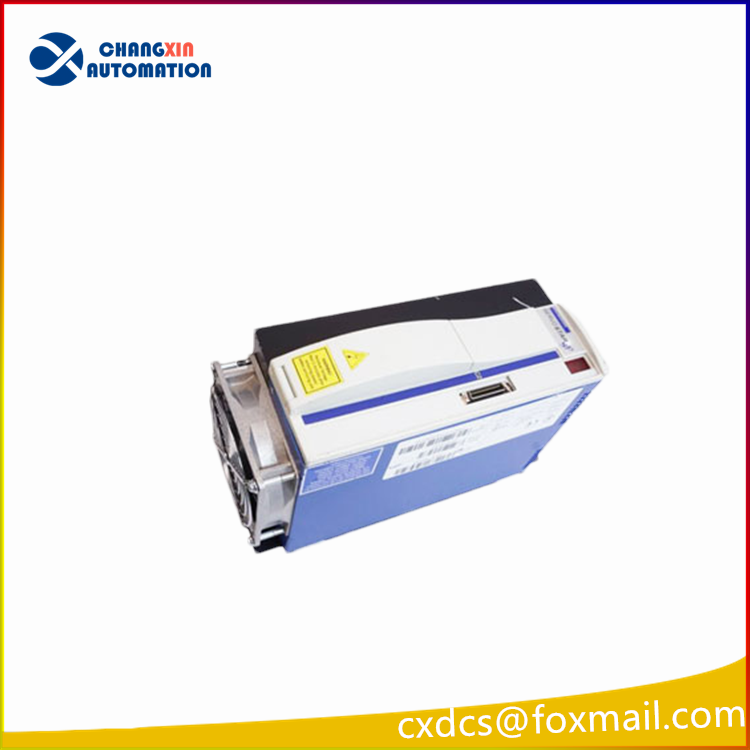

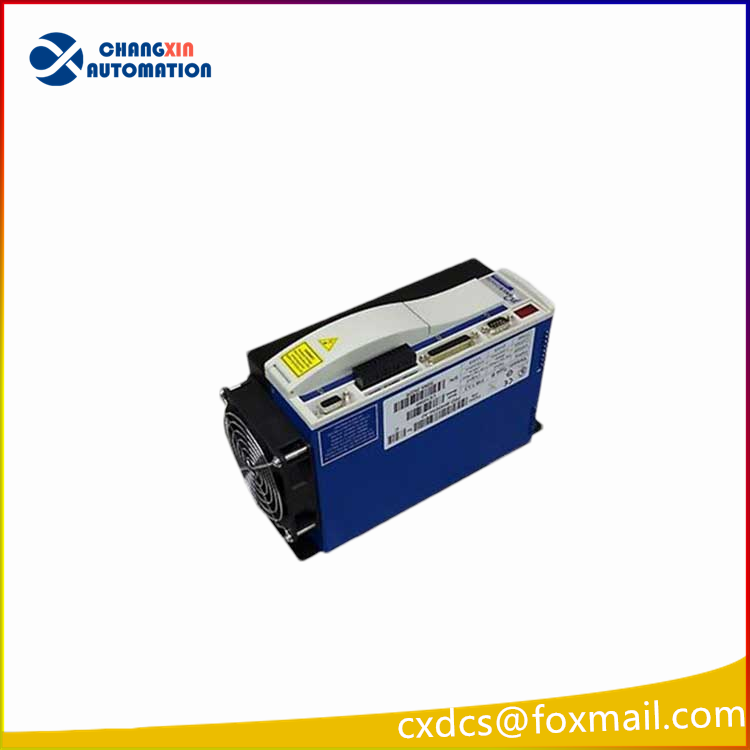

The Kollmorgen CR06200-000000 is part of the Servostar CD Drive Series. It is primarily designed for AC synchronous servo motors developed by Danaher Motion. The model can function with a single-phase or three-phase 110 – 230 VAC power source, operating at a frequency of 47-63 Hz.
Installation requires a minimum clearance of 12.7mm at the sides and 63.5mm at the top/bottom. The amplifier features both single and multi-speed resolver feedback for shaft position monitoring. The input current requirement for this unit is 10/7.8 A for a single/three-phase power source.
While operating at a single-phase voltage source, the motor generates the continuous power output of 0.89/1.8 A at 115/230 V. The model generates the rated power of 1.1/2.8 A at 115/230 V, while operating at the 3-phase power source. The model comes with a PWM frequency of 8 kHz and the internal heat dissipation of the module is 80 W. The servo amplifier can be stored ideally under the temperature range of 0 to +70 degree Celsius and the ideal operating temperature range for this unit is +5 to +45 degree Celsius.
