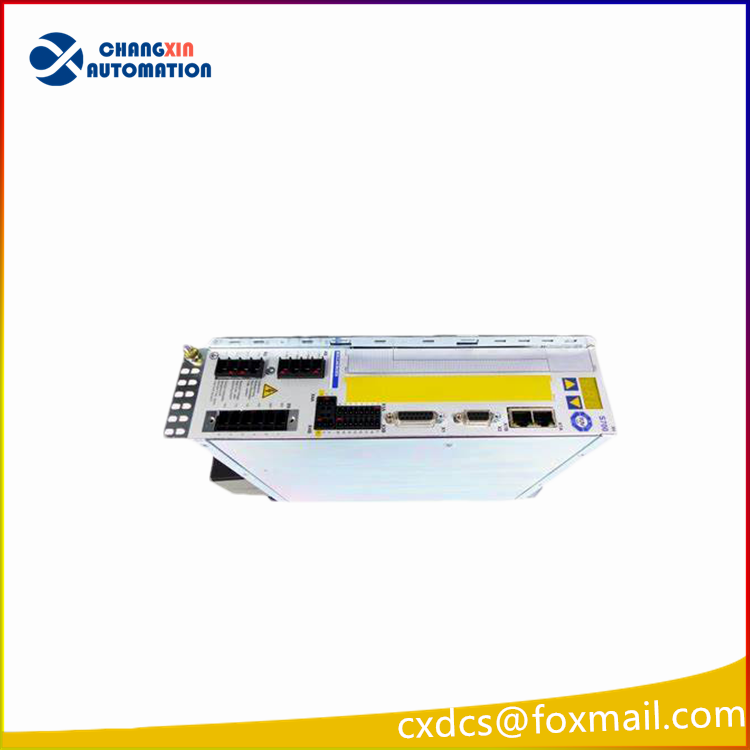

The Kollmorgen S71202-NANANA belongs to the Kollmorgen S700 series of servo drives. It is a high-performance, fully digital servo amplifier specifically designed for complex driving tasks. It supports various motor types and feedback systems and features high scalability and flexibility.
I. Product Features
High-performance Control
Supports high-speed current, speed and position control, achieving higher machine rotational speed and precision.
Integrates safety functions (such as SIL2/SIL3), enhancing machine availability and operational safety.
Includes IEC 61131 macro programming language, supporting flexible motion control logic.
Multiple interfaces and compatibility
Multi-interface design, compatible with all standard controllers (such as EtherCAT, CANopen, etc.).
Supports multiple feedback functions, compatible with all common feedback systems (such as rotary transformers, incremental encoders, BiSS, EnDat, etc.).
Built-in EMC filter, reducing electromagnetic interference.
Compact design and efficient heat dissipation
Low space occupation, suitable for switch cabinet installation.
Integrated power supply and braking resistor, simplifying system design.
Optimized heat dissipation structure, ensuring stable operation for a long time.
Flexible configuration and scalability
Supports storage card for parameter and firmware updates, facilitating maintenance and upgrades.
Built-in EtherNet interface, enabling real-time fieldbus communication without additional expansion cards.
Provides multiple rated current models (1.5A to 72A), meeting different application requirements.
Technical Specifications
Rated Line Voltage: 3×208V to 3×480V (±10%), 50/60Hz.
Rated Output Current: Varies by model, supports 1.5A to 72A (root mean square value).
Peak Output Current: Up to 140A (root mean square value).
Auxiliary Power Supply: 24V DC.
Dimensions (Width x Height x Depth): 70mm x 345mm x 243mm (Example: S71202)
Application fields
The Kollmorgen S700 series servo drives are widely used in industrial automation scenarios that require high precision and high dynamic response, including but not limited to:
Robot: Supports multi-axis collaborative control to achieve complex motion trajectories.
CNC machine tool: Provides high-precision position control to enhance processing quality.
Packaging machinery: Achieves high-speed and stable packaging processes.
Printing equipment: Ensures synchronization and accuracy in the printing process.
Textile machinery: Supports high-speed and low-vibration textile production.
