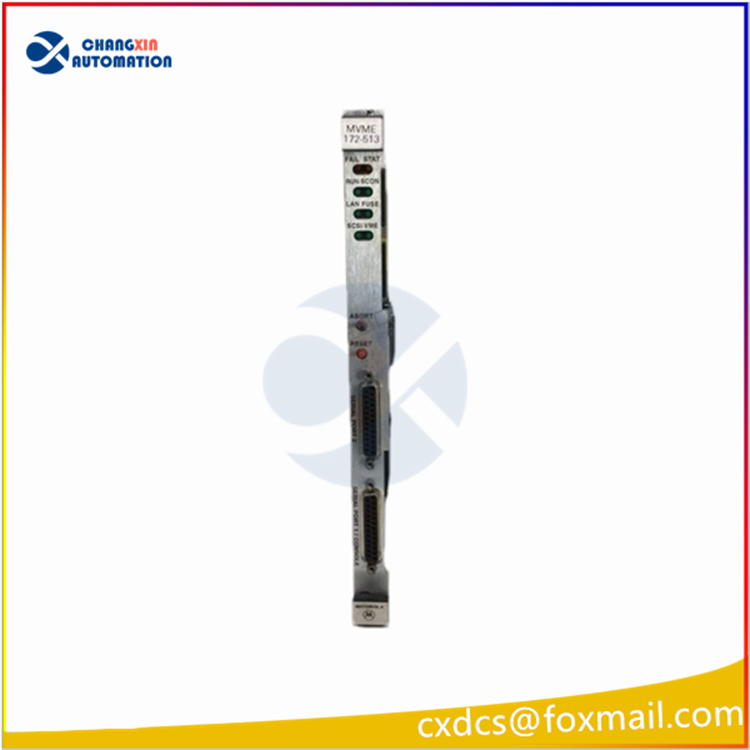

MVME172PA-652SE MOTOROLA MVME172P2 series VME embedded controller

product description:

Features:
60 MHz or 64 MHz processor
16 MB configurable SDRAM
128 KB SRAM with spare battery
2 MB flash memory
8K x 8 NVRAM and calendar clock with spare battery
Two 32-pin JEDEC DIP sockets for EPROM
The Emerson/MOTOROLA MVME172P2 series VME embedded controller with 2 IP slots enables VME embedded controller users to achieve the cost-effectiveness of the RISC architecture while maintaining compatibility with the MC68060 object code. By combining the superscalar performance of the MC68060 with a wide range of optional features and IndustryPack interfaces, Oems can select the right product for their applications instead of purchasing unnecessary features.

The new “Petra” application-specific integrated circuit (ASIC) has replaced the functions previously implemented in IP2 chips, MC2 chips and MCECC chips, improving the performance of the storage subsystem. The memory configuration switch enables users to customize the memory size for applications that require a smaller memory configuration.

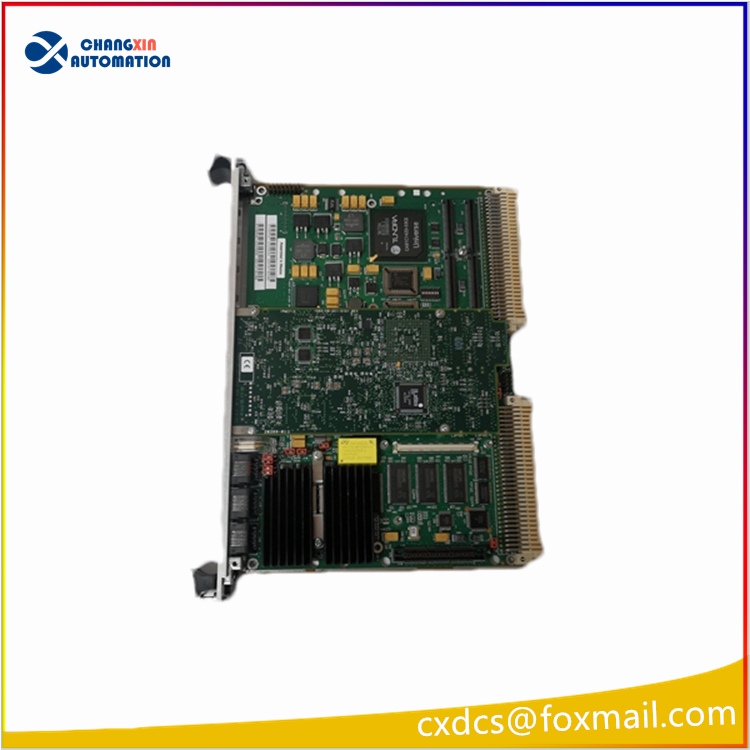

■ MPC7410, MPC750 or MPC755 class microprocessor with 32KB/32KB L1 cache
■ Up to 2MB of secondary backside cache
■ 100 MHz front-side bus
■ Up to 512MB of on-board ECC SDRAM—expandable up to 1GB with optional RAM500 memory expansion modules
■ 17MB Flash memory
■ Dual IEEE P1386.1 compatible 32/64-bit PMC expansion slots
■ 64-bit PCI expansion mezzanine connector allowing up to four more PMCs
■ Dual 16550 compatible async serial ports
■ Dual 10BaseT/100BaseTX Ethernet
■ 32KB NVRAM and time-of-day clock with replaceable battery backup
■ Four 32-bit timers and one watchdog timer
■ On-board debug monitor
■ Single VME slot even when fully configured with two PMC modules and both add-on memory mezzanines
