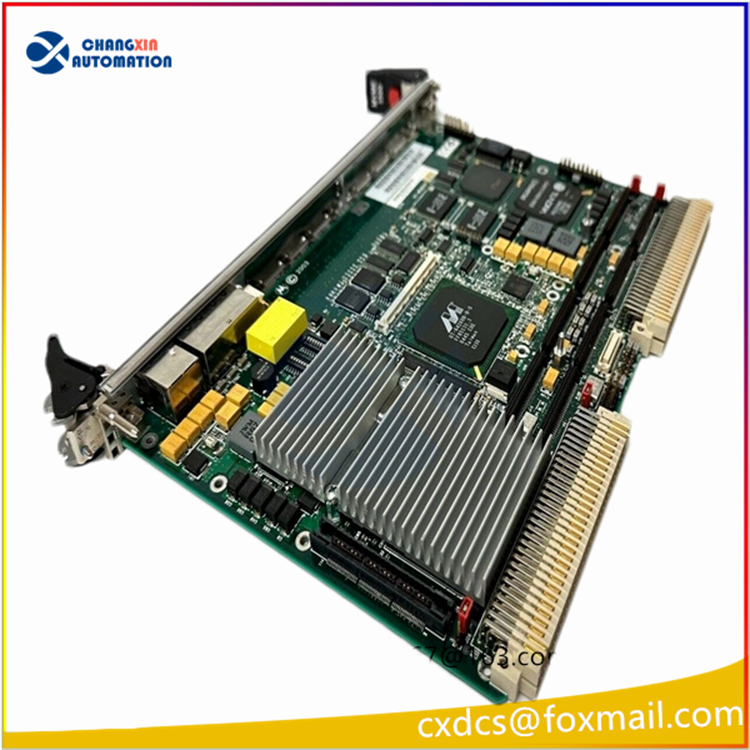

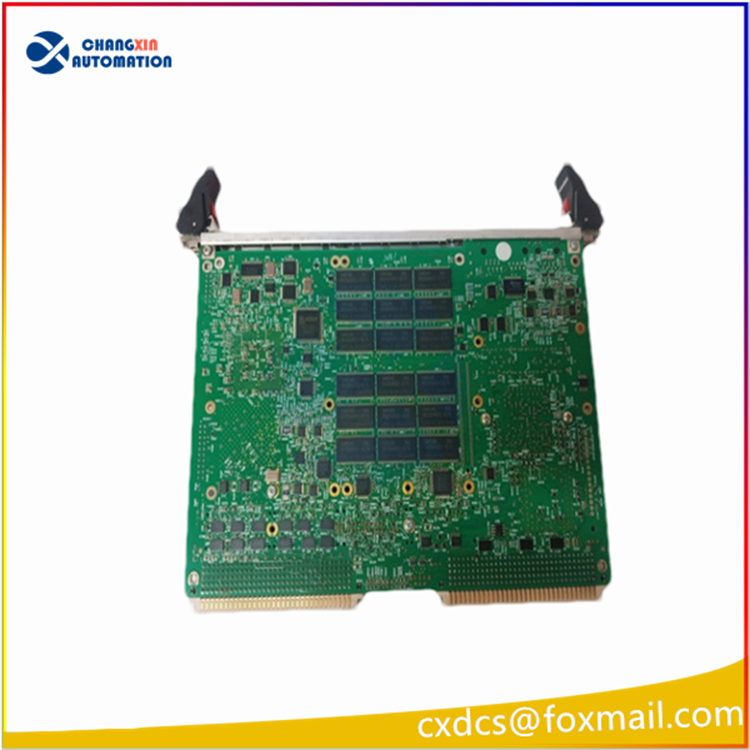

The SMART embedded computing MVME5500 uses an MPC7457 processor running at 1 GHz, balanced with memory, dual independent local buses, and I/O subsystems.
The powerful Marvell system controller supports 133 MHz host bus and 133 MHz SDRAM memory bus, which is highly compatible with high-speed processors. To match the system I/O with the outstanding processor performance, the MVME5500 provides dual 64-bit, 33/66 MHz PCI buses. Each PCI bus has a PMC site that supports cards operating at 33 or 66 MHz. The Universe II VME interface and the PMCspan connector are isolated from the PMC sites on a dedicated 33 MHz PCI bus segment, so both PMC sites can operate at 66 MHz.
The MVME5500 also offers a Gigabit Ethernet interface, a 10/100BASE-TX Ethernet interface and two serial ports. All of these constitute a well-balanced set of high-performance subsystems with unparalleled performance.
The MVME5500 series is designed to meet the needs of original equipment manufacturers, including defense and aerospace, industrial automation and transportation. Customers who wish to update the technology for their applications while maintaining backward compatibility with the existing VMEbus infrastructure can upgrade to the MVME5500 series and take advantage of enhanced performance features.
MPC7457 PowerPC® processor, 1GHz
512kb on-chip L2 cache and 2MB L3 cache
AltiVec coprocessors for high-performance computing applications
Two sets of welding flash memory (32MB and 8MB)
Dual independent 64-bit PCI buses and PMC sites, with bus speeds up to 66 MHz
A gigabit Ethernet interface plus an additional 10/100BASE-TX Ethernet interface
64-bit PCI expansion mezzanine connector, capable of accommodating up to 4 PMCS
I/O compatibility with the MVME51xx series
◆ Support Processor pmc (prpmc)
The MVME5500 series offers customers a migration path from the MVME2300, MVME2400, MVME2600, MVME2700, and MVME5100 boards to allow them to take advantage of features such as the MPC7455 processor, Gigabit Ethernet, and 33/66 MHz PMC sites.
