Description:
The EPRO PR6423/009-010-CN is an eddy current sensor that is used to measure AC or DC current. It has a measurement range of 0 to 1000A and an accuracy of ±1%. It is a non-contact sensor, so it does not need to be connected to the conductor being measured. It is also a very reliable sensor, with a mean time to failure of over 10,000 hours.

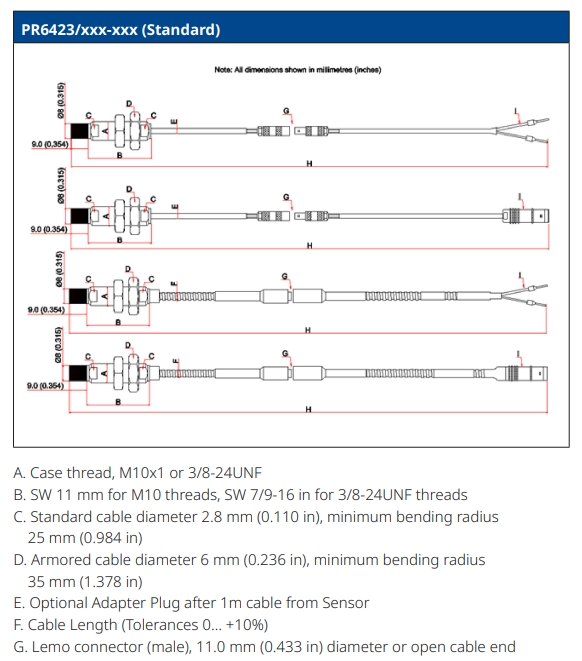

| Model No. | Case Thread X | Adapter Plug X | Cable Length X | Cable End X |
| PR6423/00
PR6423/01 PR6423/10 PR6423/11 |
0 25mm
1 35mm 2 45mm 3 55mm 4 65mm 5 75mm 6 85mm 7 95mm 8 105mm 9 115mm E 155mm H 195mm R Reverse Mount |
0 With
1 Without |
0 4.0m
1 5.0m 3 8.0m F 9.0m 4 10.0m |
0 Lemo*
1 Open
|
*Not available, if Reverse Mount without Adapter Plug is chosen
Additional Information:
| Features | |
| Tip diameter | 8mm |
| Case threads | M10x1 |
| Armored cable | Yes |
| Output signal | 4-20mA or 0-10V DC |
| Accuracy | ±0.25% |
| Repeatability | ±0.1% |
| Operating temperature range | -40°C to +125°C |
| Storage temperature range | -55°C to +150°C |
| Humidity | 95% RH non-condensing |
| Vibration | 20g peak to peak, 10-2000 Hz |
| Shock | 50g peak, 11ms, half-sine |
