Product Details:
| Brand Name | EPRO |
| Model | PR6423/00R-031 |
| Catalog | PR6423 |
| Origin | Germany |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 85389000 |
| Payment | T/T |
| Sales Price | $1500 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Features | |
| Measuring range | 2 mm, max. 4 mm |
| Sensor head diameter | 8 mm |
| Frequency range | 0 … 20 kHz (-3 dB) |
| Operational temperature | –35…+180 °C |
| Extended ranges up to 4 mm available by converter configuration | |
| Various threads and body lengths | |
| Cable length selectable 4…10 m | |
| ATEX certified | |
| In new project use: EZ1080+EZ1000 | |
| It is designed for connection to EZ1000, CON011, CON031, CON041 converters or directly to AMS3000 series modules | |
| Since 2020, they have been replaced by EZ1000 series sensors | |

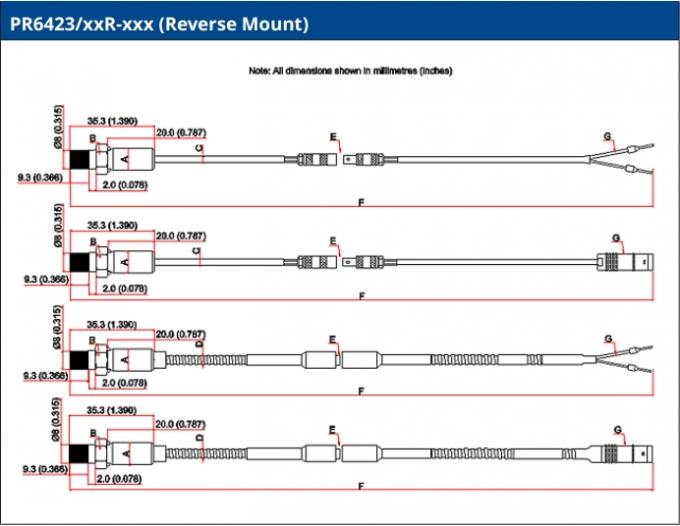

Description:
A. Case thread, M10x1 or 3/8-24UNF
B. SW 11 mm for M10 threads, SW 7/16 in for 3/8-24UNF threads
C. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius 25 mm (0.984 in)
D. Armored cable diameter 6 mm (0.236 in), minimum bending radius 35 mm (1.378 in)
E. Optional Adapter Plug after 1m cable from Sensor
F. Cable Length (Tolerances 0… +10%)
G. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
