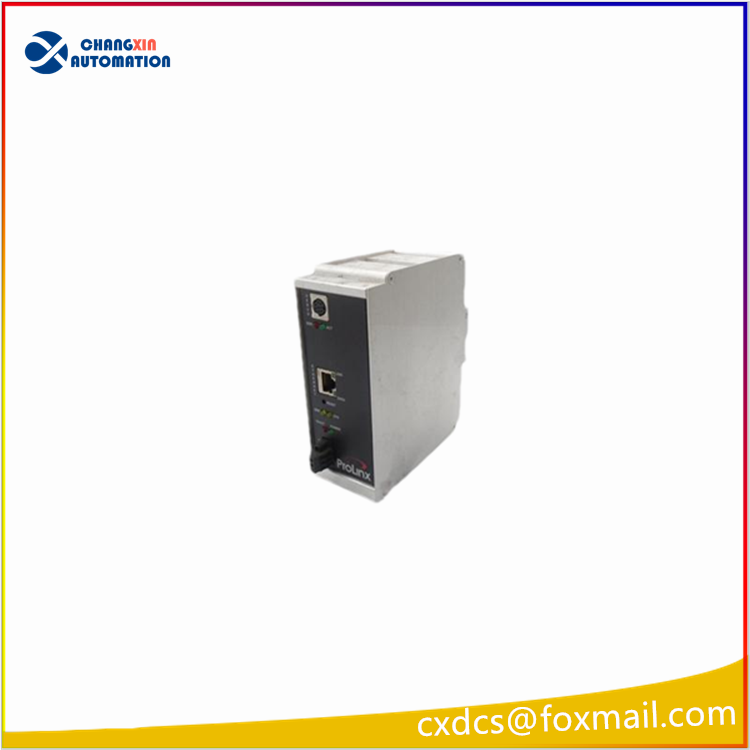

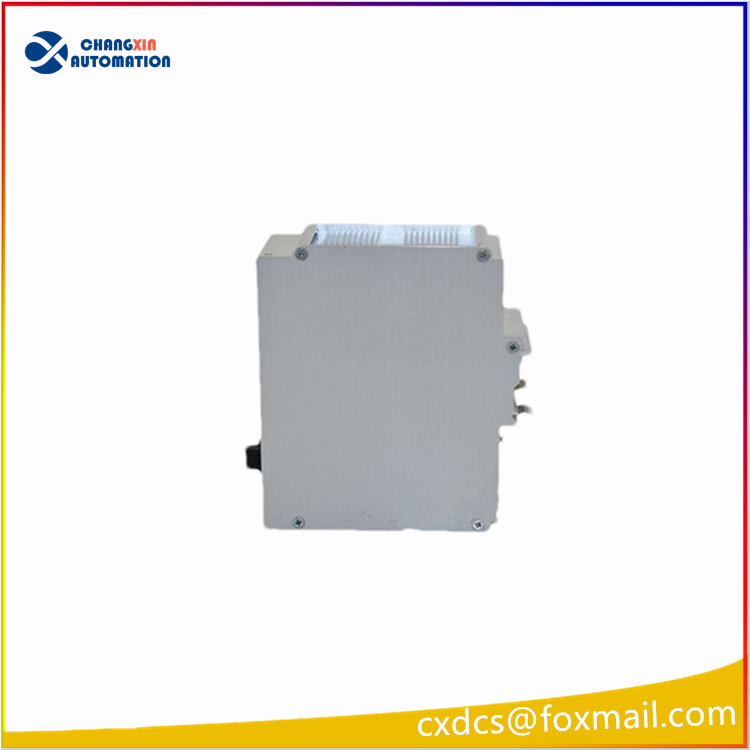

PROSOFT 5201-MNET-MCM is a communication module, serving as a gateway between Modbus TCP/IP network and Modbus RTU or ASCII serial devices. Here is a detailed introduction:
Features:
Protocol Conversion: It can convert data between Modbus TCP/IP and serial Modbus protocols, enabling devices on different networks to exchange information.
Support for Multiple Connections: The MNET driver supports client and server connections. When combined with the Web option, it can also provide Web/FTP interfaces. The server can support up to 5 independent connections with Modbus TCP/IP clients through the standard MBAP protocol on port 502, and also supports port 2000 for the server.
Port Configuration: It provides one Ethernet port and up to four serial ports. All Modbus serial ports can be configured individually, offering a powerful and flexible solution for host or device interfaces.
Technical Specifications:
Communication Ports: The Ethernet port is typically an RJ45 interface and supports 10Base-T half-duplex mode; the serial ports support RS232/RS422/RS485.
Power Requirements: Usually requires a 24VDC power supply, with an allowable range of 18 to 32VDC, and has positive, negative, and ground terminals.
Operating Environment: The operating temperature is generally -20°C to 50°C, the storage temperature is -40°C to 85°C, and the relative humidity is 5% to 95% (without condensation).
Electrical Isolation: The Ethernet port has an electrical isolation of 1500V RMS, the signal isolation of the serial ports is 2500V RMS, and the isolation between the ports and ground, as well as between the ports and the logic power supply, is at least 3000VDC.
Application fields:
This module can be applied in industries such as manufacturing, oil and gas, power, and food processing, to enable communication connections between different protocol devices, for purposes such as data collection, equipment monitoring, and system integration.
