product description：

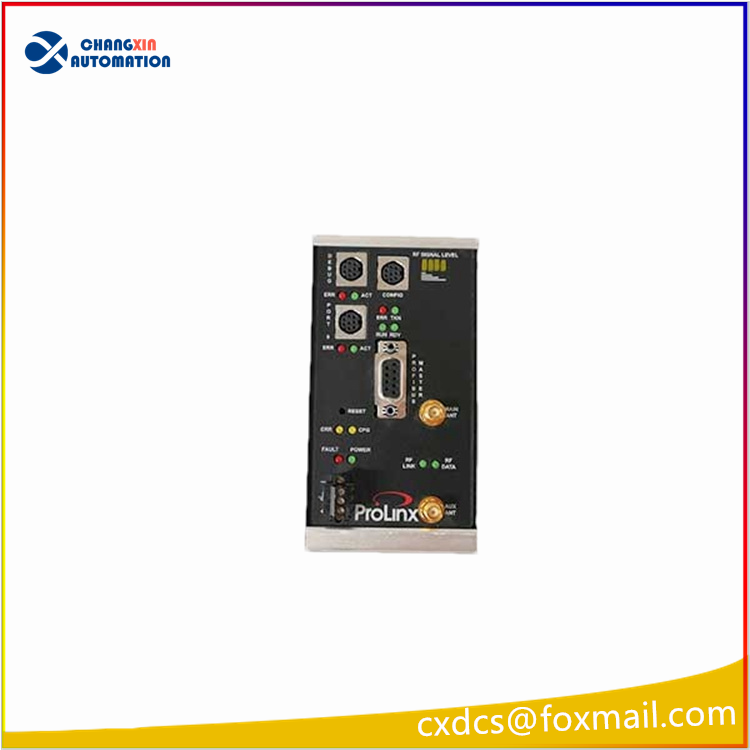

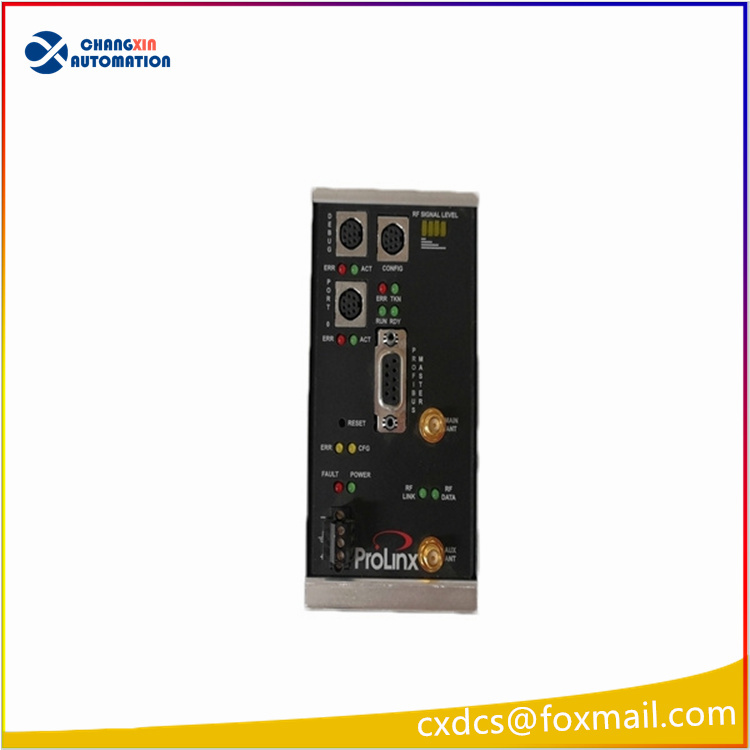

The PROSOFT 6104-WA-PDPM communication module is a communication interface module specifically designed for industrial automation. It is mainly used to establish communication connections between Rockwell Automation’s ControlLogix processors and Modbus master/slave devices. Here is a detailed introduction about this module:
I. Core Functions
Modbus Communication Support:
Supports various Modbus protocols such as Modbus TCP/IP, RTU, ASCII, and DF1, capable of adapting to different communication environments and requirements.
Can achieve data exchange within the Modbus network, including reading and writing data registers, coils, discrete inputs, etc.
PLC Integration:
Usually installed in Rockwell Automation’s ControlLogix PLC rack, connected to the PLC processor via the rear panel.
Closely integrated with the PLC to achieve efficient communication and control.
Data Exchange and Storage:
The module is equipped with register space for data exchange between the processor and the Modbus network.
Supports the storage and transmission of a large amount of register data to meet the requirements of complex applications.
Remote Monitoring and Control:
Through the MVI46-MCM module, users can monitor and control remote Modbus devices.
Suitable for scenarios where remote monitoring of the production process is required and control can be carried out as needed.
Technical Characteristics
Hardware Design:
Equipped with 2 Ethernet ports and 1 serial port, supporting various communication interfaces.
Compact design, capable of withstanding harsh industrial environments, with a temperature range of -40°C to +85°C.
Certified by UL/cUL, ATEX, and IECEx, can be safely used in hazardous areas.
Main Processor and Operating Mode:
The main processor is 32-bit, with a running frequency of 50Hz.
Adopts the 3-2-1-0 operating mode to ensure stable operation.
Diagnostic Function:
Equipped with advanced diagnostic functions, such as real-time monitoring of Modbus communication.
Helpful for quickly identifying and resolving communication issues, improving the reliability and maintenance efficiency of the system.
