Description

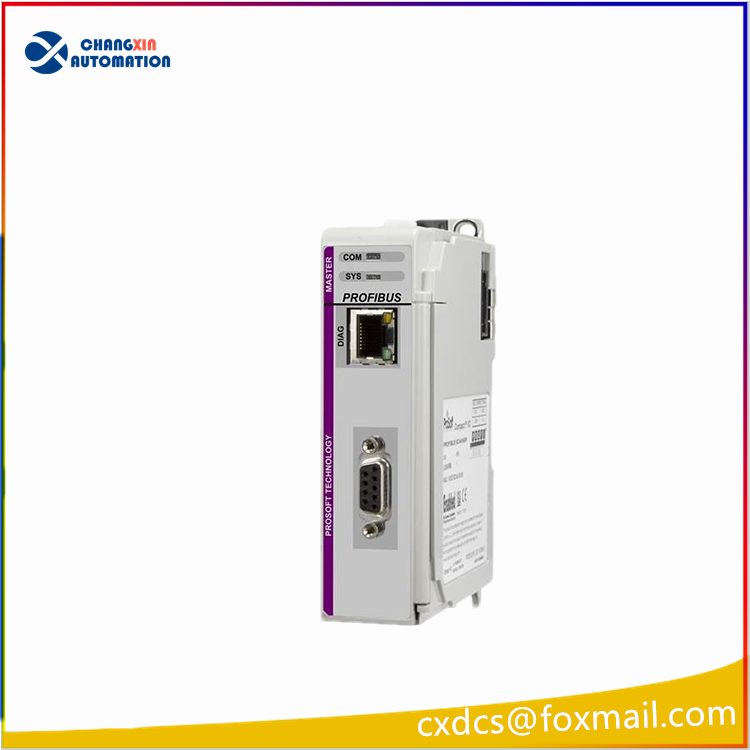

The ProSoft ILX69-PBS is a robust PROFIBUS Slave Communication Module designed for Rockwell CompactLogix™ 1769 systems. It enables seamless integration of PROFIBUS DP slave devices into your Allen-Bradley PLC system, enhancing the communication between PLCs and PROFIBUS-compatible devices. Whether you are integrating sensors, actuators, or other automation components, the ILX69-PBS offers reliable and high-speed communication for a variety of industrial applications.
Equipped with the netX 100 processor, the module supports PROFIBUS DP slave communication with configurable transmission rates, making it a flexible solution for systems requiring different data throughput levels. With up to 4 GB of expandable memory and SD/SDHC card support, the ILX69-PBS ensures ample storage for large-scale systems. Its 8 MB of integrated SDRAM provides fast, real-time data processing, ideal for demanding industrial environments.
The ProSoft ILX69-PBS is fully compatible with Rockwell Automation’s 1769-series backplane and incorporates Rockwell’s Mercury chip, ensuring excellent compatibility and smooth integration into CompactLogix™ PLCs.
Functional Highlights / Key Benefits / Main Features
- PROFIBUS DP Slave Communication: Seamlessly integrates PROFIBUS DP slave devices into Allen-Bradley systems, supporting multiple transmission rates for versatile applications.
- High-Speed Data Transfer: Offers configurable transmission rates ranging from 9.6 kBit/s to 12 MBit/s, ensuring high-speed data exchange for critical operations.
- Expandable Memory: Equipped with 8 MB SDRAM and 16 MB Flash EPROM, and supports SD/SDHC cards up to 4 GB for additional storage.
- Easy Integration: The ILX69-PBS easily integrates with CompactLogix™ 1769 systems using the 1769 Rockwell backplane and Rockwell Mercury chip for smooth communication.
- Flexible Memory Management: Supports FAT12/16/32 file systems for easy management of memory cards, ensuring flexibility in system storage needs.
- Wide Operating Range: Designed for operation in challenging industrial environments, it operates in temperatures ranging from 0°C to 60°C (32°F to 140°F).
- Reliable Performance: The module’s netX 100 processor ensures stable and fast processing, with reliable data transfer between PROFIBUS devices and your PLC.
Technical Data / Specifications
| Parameter | Specification |
|---|---|
| Module Type | PROFIBUS Slave Communication Module |
| Controller Type | netX 100 processor |
| Integrated Memory | 8 MB SDRAM |
| Flash Memory | 16 MB Flash EPROM |
| Memory Card | SD and SDHC (up to 4 GB) |
| Backplane Interface | 1769 Rockwell backplane |
| Chip | Rockwell Mercury chip |
| PROFIBUS Protocol | PROFIBUS DP slave |
| Transmission Rates | 9.6 kBit/s to 12 MBit/s |
| SD Card Connector | FPS009-2405-0 push/push |
| Power Supply | 5 VDC (500 mA max) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
Typical Applications / System Integration / Use Cases
The ProSoft ILX69-PBS is ideal for a wide range of industrial automation systems, providing reliable and efficient communication in diverse applications:
- Industrial Automation: Seamlessly integrates PROFIBUS devices, such as sensors and actuators, into Allen-Bradley PLCs, enabling data exchange across your control system.
- Remote Monitoring and Control: The module allows PROFIBUS devices to be connected over long distances, perfect for remote monitoring and control systems.
- Factory Automation: Ideal for environments where PROFIBUS DP slave devices need to be integrated with CompactLogix PLCs for reliable and high-speed data transfer.
- Process Control Systems: Perfect for process industries, including manufacturing, energy, and oil and gas, where integrating PROFIBUS-enabled equipment is crucial for efficient operations.
- SCADA Systems: Connects PROFIBUS devices to SCADA systems for real-time data acquisition, control, and monitoring.
The ILX69-PBS is flexible enough to support a range of automation needs, allowing for easy integration into various system topologies.
Support & Maintenance / Reliability & Service
- Comprehensive Support: Benefit from ProSoft’s industry-leading technical support for installation, configuration, and troubleshooting.
- Firmware Updates: The module supports field-upgradable firmware, allowing you to keep your system up to date with the latest features and improvements.
- Robust Design: Built for reliability, the ILX69-PBS is designed to operate in demanding environments, ensuring minimal downtime and maximum productivity.
- Documentation and Resources: Access detailed installation guides, manuals, and configuration tools to ensure smooth setup and continued support.
FAQ
1. What is the ProSoft ILX69-PBS module used for?
The ILX69-PBS is used to integrate PROFIBUS DP slave devices with Rockwell CompactLogix™ 1769 systems, facilitating reliable communication in industrial automation applications.
2. What are the transmission rates supported by the ILX69-PBS module?
The ILX69-PBS supports a range of transmission rates, from 9.6 kBit/s to 12 MBit/s, offering flexibility for various communication needs.
3. How much memory does the ILX69-PBS have?
The module includes 8 MB SDRAM and 16 MB Flash EPROM, as well as support for expandable SD/SDHC memory cards up to 4 GB.
