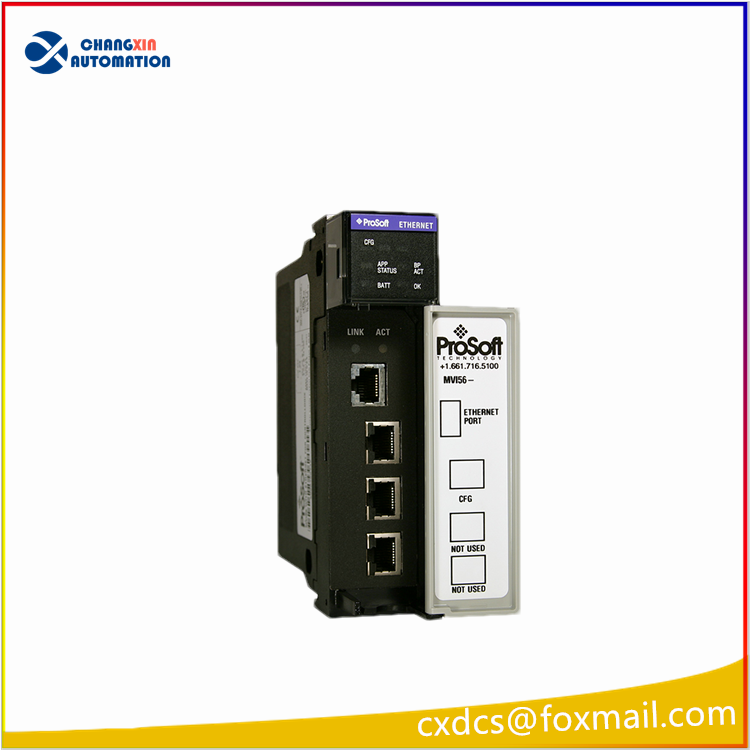

PROSOFT MVI56-101M COMMUNICATION MODULE

The PROSOFT MVI56-101M communication module is a network interface module specifically designed for industrial automation. It is mainly used to achieve the connection between Rockwell Automation’s ControlLogix processors and IEC 60870-5-101 protocol-compatible devices (such as relays, circuit breakers, substation communication modules, etc.). The following is a detailed analysis of its core functions and technical features:
Core Function
Protocol Conversion
As the main network interface module of IEC 60870-5-101, MVI56-101M enables the ControlLogix processor to directly communicate with slave devices that support the IEC 101 protocol, resolving compatibility issues between different protocol devices.
IEC 101 Protocol Characteristics: Supports timestamp and abnormal real-time reporting (TRBE), allowing the module to actively send event reports to the processor without polling, improving the real-time performance of critical data transmission.
Multiple Device Connections: Through the ControlLogix processor, the module can connect up to 32 serial communication devices (such as remote terminal units RTU, smart meters, etc.), meeting the requirements of large-scale industrial scenarios.
Dual Independent Communication Ports: Each port can be independently configured as a master device (control device) or a slave device (controlled device), supporting balanced or unbalanced transmission modes, flexibly adapting to different network topologies.
Data Exchange and Control
Internal Database Mapping: The module has a built-in database for storing data between the serial network and the ControlLogix processor, and directly controls data exchange through ladder logic.
Event Recording and Timestamp: Supports event message transmission from the controlled device to the processor, and records events with timestamps, facilitating fault tracing and system analysis.

Technical Specifications
Hardware Compatibility: Single-slot design, compatible with 1756 backplane, can be installed in local or remote racks.
Communication Parameters:
Port Configuration: Each port supports independent baud rate (up to 115.2 kbps), data bits, stop bits, and parity mode.
Session Management: Up to 32 sessions supported, each session can define 5 sectors (independent database areas), totaling 1000 control station commands.
Data Processing Capacity:
Data Types: Supports single-point, dual-point, step-point, measurement point, Bitstring (32-bit) and other data formats.
Configuration File: Module settings and monitoring are completed through RSLogix 5000 software and user-constructed configuration files (IEC101M.CFG).
Environmental Adaptability:
Operating Temperature: -25°C to +70°C (extended range -40°C to +85°C is available as an option).
Protection Grade: IP20 (standard), optional conformal coating treatment, anti-electromagnetic interference (EMC) compliant with EN 61000-6-2 standard.

Application scenario
Power Automation
Connect the relays, circuit breakers and other IEC 101 protocol devices in the substation to achieve seamless integration with the ControlLogix control system, thereby improving the efficiency of power grid monitoring.
Water Treatment and Process Control
Integrate remote pumping stations, sensors and other equipment, and transmit data through modules to the central control system to optimize process scheduling and fault response.
Industrial Infrastructure
In the oil and gas industries, connect decentralized RTU devices to achieve data collection and remote control, thereby reducing operation and maintenance costs.
