Description

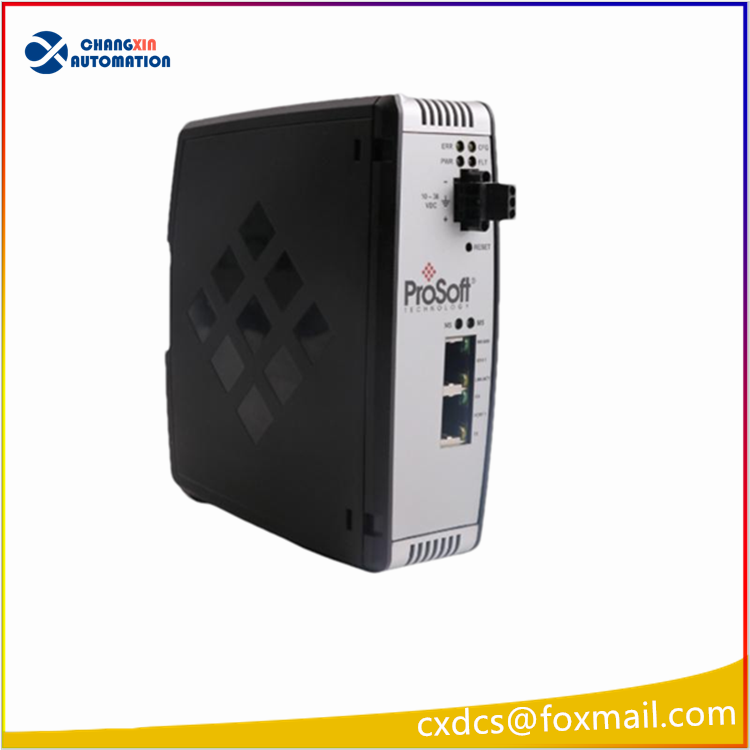

The ProSoft MVI69E-MNET Modbus TCP/IP Communication Module is a robust and reliable solution for integrating Modbus TCP/IP networks with Allen-Bradley CompactLogix™ and ControlLogix™ systems. This module allows seamless communication between Modbus TCP/IP devices and Rockwell Automation PLCs, enabling real-time data transfer and system-wide integration. The MVI69E-MNET is designed to optimize the performance of industrial systems by enabling flexible and high-speed data exchange between Modbus devices and your automation systems.
The module supports the Modbus TCP/IP protocol, which is widely used in industrial environments for its simplicity and efficiency in connecting diverse automation devices. With easy configuration using the ProSoft Configuration Builder, the MVI69E-MNET reduces commissioning time and simplifies the setup of complex industrial networks. Whether you’re connecting sensors, actuators, or remote I/O devices, this module is a perfect fit for your system.
Functional Highlights / Key Benefits / Main Features
- Modbus TCP/IP Communication: Seamlessly integrates Modbus TCP/IP devices with Allen-Bradley systems, enabling efficient data exchange across various industrial networks.
- Compact and Efficient Design: The MVI69E-MNET is designed to fit into Allen-Bradley CompactLogix™ or ControlLogix™ PLCs, offering easy installation and space-saving integration in your control systems.
- High-Speed Data Transfer: Supports fast and reliable communication, ensuring minimal latency for critical data in real-time applications.
- Simple Configuration: Easily configured using ProSoft Configuration Builder software, which streamlines the setup process and reduces configuration time.
- Dual Port Support: The module supports dual Ethernet ports, enabling high availability and redundancy, ensuring continuous communication even in demanding industrial environments.
- Scalable Integration: Suitable for both small and large-scale industrial automation systems, this module is highly scalable and adaptable to various network topologies.
- Firmware Upgrades: The MVI69E-MNET supports field-upgradable firmware, allowing it to stay current with the latest protocols and updates.
Technical Data / Specifications
| Parameter | Specification |
|---|---|
| Module Type | Modbus TCP/IP Communication Module |
| Compatibility | Allen-Bradley CompactLogix™ & ControlLogix™ PLCs |
| Protocol Supported | Modbus TCP/IP |
| Ports | Dual Ethernet Ports |
| Baud Rate | 10 Mbps to 100 Mbps (Auto-sensing) |
| Power Supply | 5 VDC, 500 mA |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| Module Dimensions | Standard 1769-series size |
| Configuration Tool | ProSoft Configuration Builder |
| Mounting | Fits in 1769-series CompactLogix™ or ControlLogix™ PLCs |
Typical Applications / System Integration / Use Cases
The ProSoft MVI69E-MNET is ideal for a wide range of industrial automation applications. Some typical use cases include:
- Connecting Modbus Devices to PLCs: Easily integrates Modbus TCP/IP devices like sensors, motors, and actuators with Allen-Bradley control systems, improving data visibility and control.
- Industrial Network Integration: Perfect for systems requiring seamless communication between Modbus TCP/IP networks and ControlLogix™ or CompactLogix™ PLCs.
- Real-Time Data Exchange: Provides real-time data exchange for applications such as remote monitoring, SCADA systems, and data logging.
- Factory Automation: Enhances factory automation systems by enabling efficient communication with a variety of Modbus-enabled devices.
- Building Management Systems: Integrates Modbus TCP/IP devices in HVAC, lighting, and security systems within a central control environment.
- Remote I/O Systems: Ideal for applications requiring remote I/O integration, enabling cost-effective solutions for monitoring and controlling processes from a distance.
The MVI69E-MNET provides the flexibility to scale your network to meet the specific needs of your application, making it a versatile addition to any industrial automation system.
Support & Maintenance / Reliability & Service
- 24/7 Technical Support: Access dedicated experts for installation support, troubleshooting, and technical assistance, ensuring minimal downtime and efficient operation.
- Firmware Upgrades: Keep the module up-to-date with the latest features and security patches via field-upgradable firmware.
- Comprehensive Warranty: The MVI69E-MNET comes with a reliable warranty to ensure long-term performance and peace of mind.
- Documentation: The module includes detailed user manuals, installation guides, and configuration resources, simplifying setup and ongoing maintenance.
FAQ
1. What is the ProSoft MVI69E-MNET Modbus TCP/IP Communication Module used for?
The MVI69E-MNET allows seamless communication between Modbus TCP/IP devices and Allen-Bradley PLC systems, enabling real-time data exchange in industrial automation systems.
2. How is the MVI69E-MNET configured?
The module is configured using the ProSoft Configuration Builder, which simplifies the setup process and reduces configuration time for Modbus TCP/IP devices.
3. What is the power supply requirement for the MVI69E-MNET?
The MVI69E-MNET operates with a 5 VDC power supply and consumes 500 mA of current.
