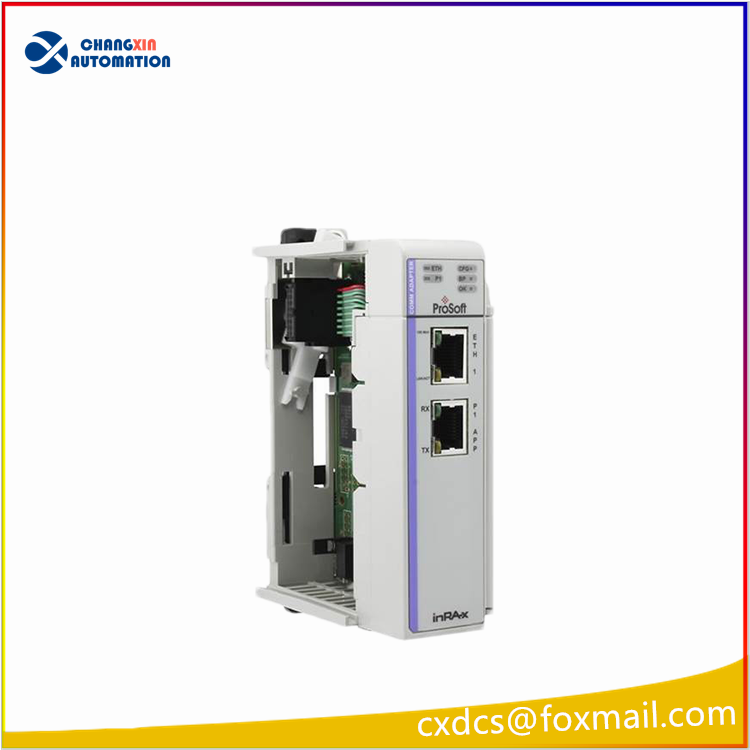

PROSOFT MVI69L-MBS Modbus Serial Lite Communication Module

PROSOFT MVI69L-MBS Modbus Serial Lite Communication Module is a Modbus serial communication solution specifically designed for Rockwell Automation’s CompactLogix series controllers. It is suitable for scenarios in small-scale automation applications where connecting Modbus serial devices is required. Here is an analysis of its core features and application value:
I. Core Functions and Technical Characteristics
Modbus Master/Slave Support
The module is equipped with a single serial port and can be flexibly configured as a Modbus master station or slave station. It supports communication with various Modbus RTU/ASCII devices, such as sensors, instruments, and frequency converters.
Master Station Mode: Up to 30 Modbus commands can be supported. It can actively poll slave station devices and is suitable for centralized control scenarios.
Slave Station Mode: Allows remote master stations to access module data and supports configurable node addresses ranging from 1 to 247.
Communication Parameters and Protocol Compatibility
Baud Rate: Adjustable from 110 to 115.2 Kbps, suitable for different device rate requirements.
Data Format: Supports 7/8 bit data bits, 1/2 bit stop bits, and no/odd/even parity.
Protocol Support: Modbus RTU (with CRC-16 check) and ASCII (with LRC check), ensuring data transmission reliability.
Floating Point Data Support: Compatible with industry standard floating point formats such as Enron and Daniel, meeting complex data exchange requirements.
Hardware Design and Environmental Adaptability
Corrosion-resistant coating option: Provides anti-corrosion protection, suitable for harsh industrial environments.
Operating Temperature Range: 0°C to 60°C (operation), -40°C to 85°C (storage), adaptable to extreme temperature conditions.
Electrical Characteristics: Maximum current load 450mA @ 5VDC, backplane isolation voltage 500V, ensuring system stability.

Application scenarios and advantages
CompactLogix system integration
Seamless compatibility: Supports CompactLogix processor 1769 I/O bus function version 16 and higher, directly integrating as an I/O module into the RSLogix 5000 project.
Diagnosis and configuration: Provides real-time diagnostic data through controller labels, supports ACD file backup configuration, simplifying maintenance processes.
Collaborative processing capability: The module runs as a co-processor, reducing the impact on PLC scan time and enhancing system response speed.
Optimization for small automation applications
Cost-effectiveness: Designed specifically for small applications, supports up to 240 bytes (16-bit integers) of I/O data exchange, meeting basic communication requirements.
Flexible deployment: Suitable for OEMs and machine manufacturers, supports rapid integration into existing CompactLogix systems without additional software configuration.
Industry application cases
Pump station monitoring: Connects field instruments via Modbus protocol, collects pump status, power, voltage, etc. data in real time, achieving remote monitoring and fault warning.
SCADA system integration: As a slave device, uploads Modbus data to the SCADA system, supporting centralized management and data analysis.
