Description

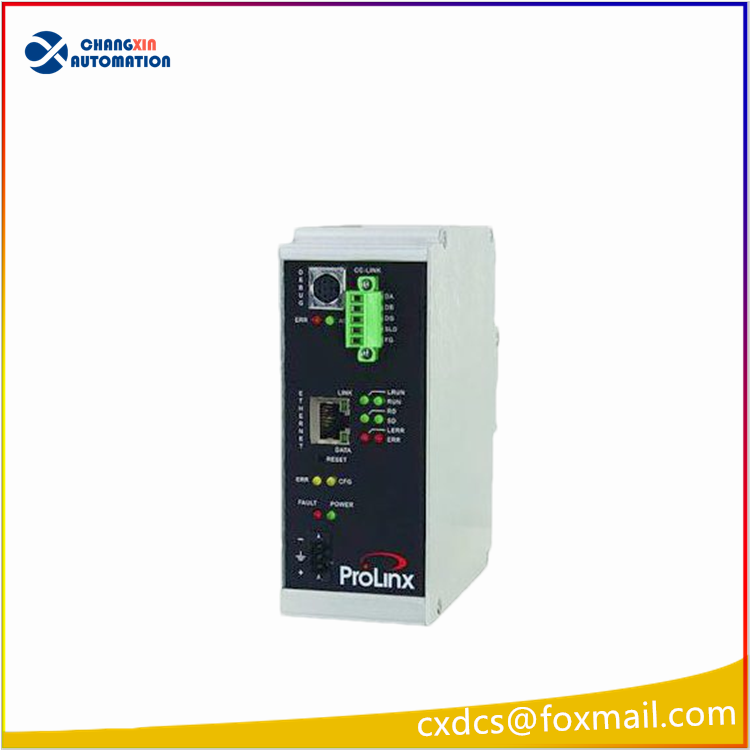

The ProSoft PLX82-EIP-61850 is an advanced communication gateway designed to integrate Ethernet/IP networks with IEC 61850 systems, bridging the gap between industrial control and power automation networks. This powerful gateway enables seamless communication between Ethernet/IP-enabled devices and IEC 61850-compliant substations, allowing for real-time data exchange and system interoperability. The PLX82-EIP-61850 enhances your automation system by providing an efficient and reliable solution for energy management, substation automation, and power grid integration.
The module is designed to handle both Ethernet/IP and IEC 61850 protocols, making it ideal for applications in industries such as electric utilities, power distribution, and substation automation. It is built for durability and offers high flexibility in the integration of power systems, ensuring reliable communication in demanding environments. With redundant Ethernet ports and electrical isolation, this module guarantees high availability and robust performance in mission-critical systems.
Functional Highlights / Key Benefits / Main Features
- Seamless Integration: The PLX82-EIP-61850 enables full integration of Ethernet/IP devices with IEC 61850-compliant systems, offering a versatile solution for diverse industrial applications.
- Redundant Ethernet Ports: Equipped with two 10/100 Base-T Ethernet ports, providing flexibility and resiliency in network communication.
- High Availability: With Ethernet resiliency that handles up to 5000 ARP frames/sec, ensuring continuous communication even under demanding conditions.
- Electrical Isolation: Ensures protection with 1500 V RMS isolation, providing safety and reliability for both Ethernet and power communication networks.
- Compact Design: The PLX82-EIP-61850 comes in a compact and rugged form factor, ideal for installations in space-constrained or harsh industrial environments.
- Wide Temperature Range: Operates within an extended temperature range of 0°C to 70°C (32°F to 158°F), suitable for diverse environmental conditions.
- Ease of Setup: Includes easy-to-use configuration tools, simplifying integration and reducing time spent on system setup and commissioning.
Technical Data / Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 24 VDC nominal (10-32 VDC allowed) |
| Current Load | 200 mA max @ 24 VDC, 150 mA max @ 32 VDC, 450 mA max @ 10 VDC |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5-95% RH, non-condensing |
| Dimensions (H x W x D) | 5.52 × 2.06 × 4.37 in / 14.02 × 5.23 × 11.1 cm |
| Ethernet Ports | ETH 1, ETH 2, 10/100 Base-T, RJ45, full- and half-duplex |
| Electrical Isolation | 1500 V rms, 50–60 Hz, 60 s |
| LED Indicators | ERR, CFG, FLT, PWR |
| Ethernet Resiliency | ≤ 5000 ARP frames/sec, ≤ 5 minutes duration |
| Shock & Vibration | Tested to EN 60068 standard |
| Included Accessories | J180 3-wire DC power connector, HRD250 screwdriver |
Typical Applications / System Integration / Use Cases
The ProSoft PLX82-EIP-61850 is ideal for applications requiring seamless communication between Ethernet/IP-based devices and IEC 61850 networks. Typical use cases include:
- Power Grid Automation: Connects substation automation systems to Ethernet/IP-enabled devices, enabling efficient data exchange and system monitoring in electric utility applications.
- Energy Management: Facilitates real-time monitoring and control of power distribution systems, ensuring optimal energy management and reduced downtime.
- Industrial Automation: Integrates power control systems into industrial Ethernet networks, offering enhanced data exchange and device interoperability.
- Substation Connectivity: Enables IEC 61850-compliant substations to communicate with Ethernet/IP devices, ensuring safe and efficient operation of electrical distribution systems.
- Smart Grid Integration: Provides seamless communication between grid control systems and Ethernet/IP-enabled devices, enhancing overall grid efficiency and reliability.
Support & Maintenance / Reliability & Service
- Comprehensive Support: ProSoft provides dedicated technical support to assist with installation, configuration, and troubleshooting, ensuring smooth integration into your system.
- Firmware Updates: Stay up-to-date with the latest features, optimizations, and security enhancements through regular firmware updates, easily applied to the module.
- Robust Durability: Built to withstand harsh industrial environments, the PLX82-EIP-61850 is engineered for long-term reliability and performance.
- Easy Integration: The module is fully compatible with ProSoft Configuration Builder, simplifying setup and reducing integration time.
FAQ
1. What is the primary function of the ProSoft PLX82-EIP-61850 module?
The PLX82-EIP-61850 acts as a communication gateway, enabling integration between Ethernet/IP and IEC 61850 networks for real-time data exchange and system interoperability.
2. How is the ProSoft PLX82-EIP-61850 powered?
The module operates with a 24 VDC nominal power supply, with a range from 10–32 VDC for flexible installation options.
3. What Ethernet ports are supported on the ProSoft PLX82-EIP-61850?
The module includes two Ethernet ports (ETH 1, ETH 2), supporting 10/100 Base-T RJ45 connections in full- and half-duplex modes.
