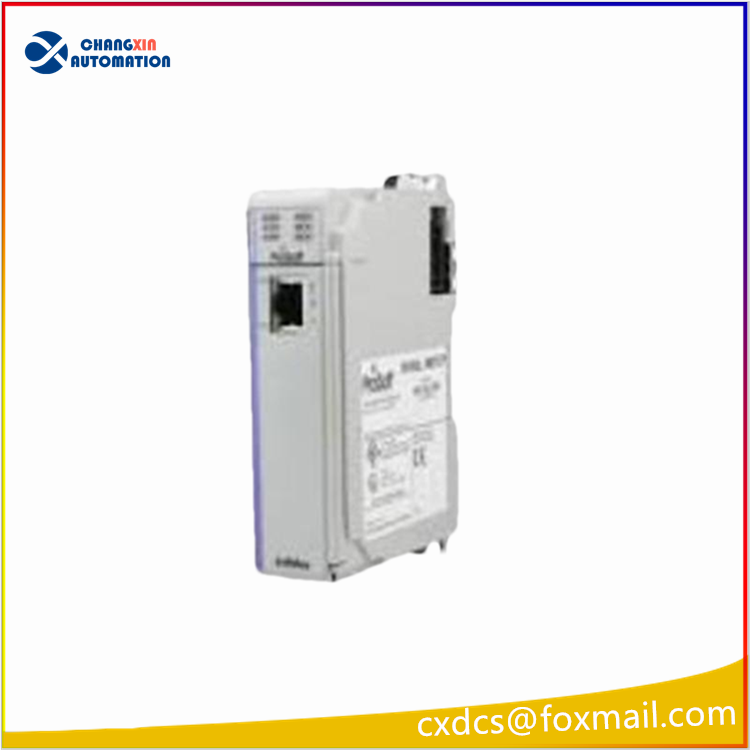

PROSOFT MVI69E-GSC Communication Module

PROSOFT MVI69E-GSC is a universal ASCII serial enhanced communication module, specifically designed for the CompactLogix™ / MicroLogix™ platform. It enables the quick and easy addition of two fully configurable ASCII communication ports without occupying the processor front-end ports or consuming valuable processing time.
Core function
Dual-port ASCII communication
The module is equipped with two powerful and fully configurable ASCII communication ports (PRT1 and PRT2), each of which supports the transmission and reception of large ASCII strings.
The ports can be individually configured with parameters such as termination type, flow mode, termination character, message timeout, and character interval timeout, to meet different communication requirements.
High-speed data transmission
Supports baud rate range: 110 to 115.2K baud, meeting the requirements of high-speed communication scenarios.
Each port supports the transmission of up to 4096 ASCII character strings, improving data exchange efficiency.
Flexible communication control
Provides full hardware handshake control (RTS/CTS, DTR/DSR) and software handshake control (XON/XOFF) to ensure communication stability.
Supports user-defined module memory usage, allowing up to 4000 register data to be stored and transmitted to the control processor.

Core Advantages
Single-slot backplane compatibility design
The module is recognized as an input/output module and can directly access the processor memory, enabling data transmission between the processor and the module.
Supports ladder logic programming, simplifying data interaction between the module memory and the processor controller labels.
Wide compatibility
Compatible with CompactLogix and MicroLogix 1500 LRP controllers (except 1769-QBFC1B, 1769-L16x, and 1769-L18x).
Configures configuration data through text file download, flexibly adapting to different application scenarios.
High reliability and ease of maintenance
Industrial-grade design, adapted to harsh environments, ensuring long-term stable operation.
All module-related data is integrated into a single controller label, simplifying monitoring and interface management.

Application scenarios
Traditional system upgrade
Supports phased migration method, gradually replacing or upgrading old Remote I/O PLC, HMI, drivers or Flex I/O adapters without interrupting the operation of the existing control system.
Allows modern PAC to communicate with traditional devices using RIO/DH+ protocol, protecting investment and extending equipment lifespan.
Multi-device integration
Connects Allen-Bradley PLC, SLC 500, PanelView, drivers and Flex I/O adapter modules, achieving interconnection of devices from different brands and generations.
Supports daisy-chain connection, simplifies multi-device wiring, and reduces system costs.
Remote monitoring and diagnosis
Realizes remote configuration and monitoring through a Web server, reducing on-site maintenance requirements.
Provides diagnostic data upload function, facilitating predictive maintenance and enhancing system reliability.
