product description:

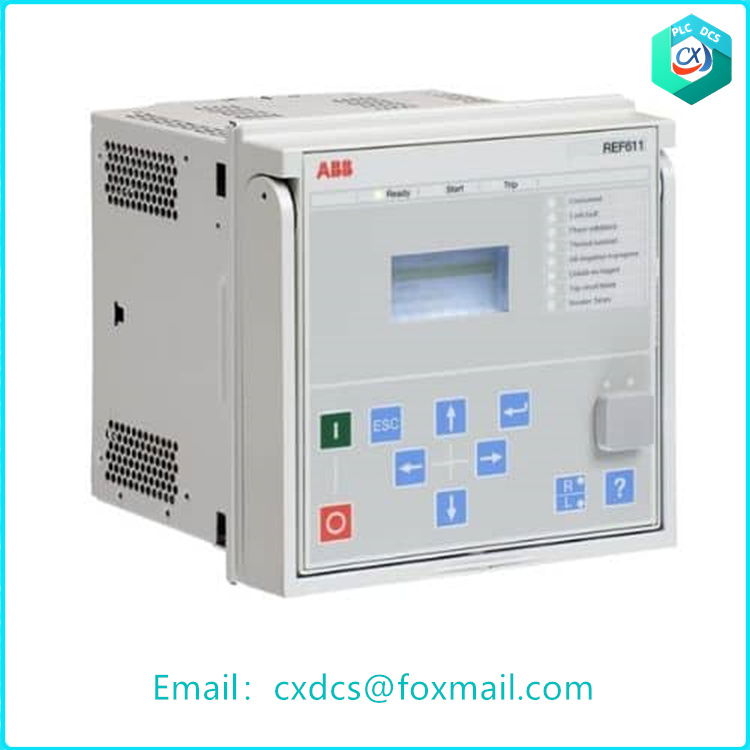

REF611 HCBACB2AA1XE is a feeder protection and measurement control device produced by ABB, belonging to the Relion® 611 series products. The following is a detailed analysis of this device:
I. Functional Positioning
Protection Function: The REF611 HCBACB2AA1XE device is specifically designed for the protection of public and industrial power distribution systems, providing both directional ground fault protection and non-directional ground fault protection. Directional grounding fault protection is mainly used in power grids with ungrounded neutral points or grounded arc suppression coils, while non-directional grounding fault protection is applied to power grids with directly grounded neutral points or low-impedance grounded neutral points. In addition, it can also be used for the protection of ring or mesh distribution networks, as well as radiation grids that include distributed generation.
Control and Measurement: In addition to the protection function, this device also has control and measurement capabilities, enabling comprehensive monitoring and management of the power distribution system.
Technical Features
Standard configuration and flexibility: The REF611 HCBACB2AA1XE offers a variety of standard configurations. Users only need to enter the necessary parameters to speed up the installation and commissioning process. Meanwhile, the device supports multiple protection functions and control strategies, which can be flexibly configured according to specific application requirements.
Human-machine Interface (HMI) : The device is equipped with a friendly human-machine interface based on Web browsing, including input and output visual matrices, facilitating users’ operation and monitoring.
Communication capability: Designed based on the IEC 61850 standard, it supports communication protocols such as GOOSE, facilitating interconnection and communication with other devices in the substation automation system.
Compact design and self-healing: With a compact design, it is suitable for new and renovation projects. Meanwhile, the self-healing ring network based on the HSR/PRP function improves the reliability and availability of the system.
Application Scenarios
Public substations: In public substations, the REF611 HCBACB2AA1XE device can be used to protect key equipment such as feeders and busbars, ensuring the safe and stable operation of the power grid.
Industrial power systems: In industrial power systems, this device can be used to protect important equipment such as motors and transformers, preventing production interruptions and equipment damage caused by electrical faults.
Distributed generation system: With the wide application of distributed generation systems, the REF611 HCBACB2AA1XE device can also be used to protect the radiation grid that includes distributed generation, improving the grid’s reception capacity and operational efficiency.
Immediate delivery is available.
