I. Product Positioning and Core Functions
The S-073H is a key component of the ABB PCS6000 medium voltage frequency converter system, belonging to the phase control module. It mainly undertakes the following responsibilities:
Precise Phase Adjustment
By real-time monitoring of the phase information of input voltage and current, the output signal phase is dynamically adjusted to ensure that the motor obtains the optimal supply phase under different operating conditions. For example:
In multi-motor synchronous operation scenarios, it avoids the increase in vibration, noise and efficiency reduction caused by phase differences.
When the load suddenly changes (such as when a fan starts), it quickly stabilizes the motor operation and reduces current impact.
System Stability Assurance
The module is equipped with a high-precision detection circuit with a measurement error of less than 0.1°, supporting a sampling frequency of over 10kHz, ensuring phase synchronization accuracy.
It adopts a triple redundancy detection mechanism, automatically switches to the backup channel when a fault occurs, and sends a warning through the Modbus protocol to enhance the system’s fault tolerance.
Energy Optimization and Energy Saving
In a common DC bus architecture, phase control is used to achieve braking energy recovery (such as using the braking energy of a descending elevator for an ascending elevator), reducing grid energy consumption.
It optimizes motor operation efficiency, reduces reactive power loss, and improves power factor.
Technical Features and Advantages
Modular Design
Compact structure, easy to integrate into the PCS6000 system, supports hot-swappable replacement, reducing maintenance time to within 20 minutes (compared to 4 hours for traditional systems).
Strong interchangeability between modules, reducing spare parts costs and enhancing system availability.
High-performance Hardware Configuration
Equipped with digital signal processors (DSP) or microcontrollers (MCU) to achieve high-speed phase calculation and control algorithm execution.
Integrated high-precision current and voltage sensors for real-time monitoring of motor status, providing data support for phase control.
Communication and Expansion Capabilities
Provides multiple communication interfaces such as RS485, CAN, and Ethernet, supporting data exchange with upper-level computers or PLC systems, enabling remote monitoring and fault diagnosis.
Compatible with programming tools like ABB Automation Builder, simplifying system configuration and debugging processes.
Environmental Adaptability
Adaptable to wide voltage, current, and temperature ranges, ensuring stable operation under complex conditions such as grid fluctuations or sudden load changes.
With a protection rating of IP36, suitable for harsh industrial environments in metallurgy, mining, chemical industries, etc.
The buffer-absorption circuit consists of two series inductors, resistors, diodes and capacitors. The positive terminal of the diode is connected to the inductor L2 and the
negative terminal is connected to the resistor R. The negative terminal of the diode is also connected to the capacitor C. The diode is connected to the capacitor C at the
negative end. The other end of the capacitor C is connected to the negative terminal of the capacitor C. The capacitor C is connected to the negative terminal of the Bus.
In terms of practical applications, the S-073N 3BHB009884R5211 High Voltage Inverter Phase Module is used in various industries such as power and industry.
It is used to control the speed and operation of motors to achieve energy saving and improve productivity .

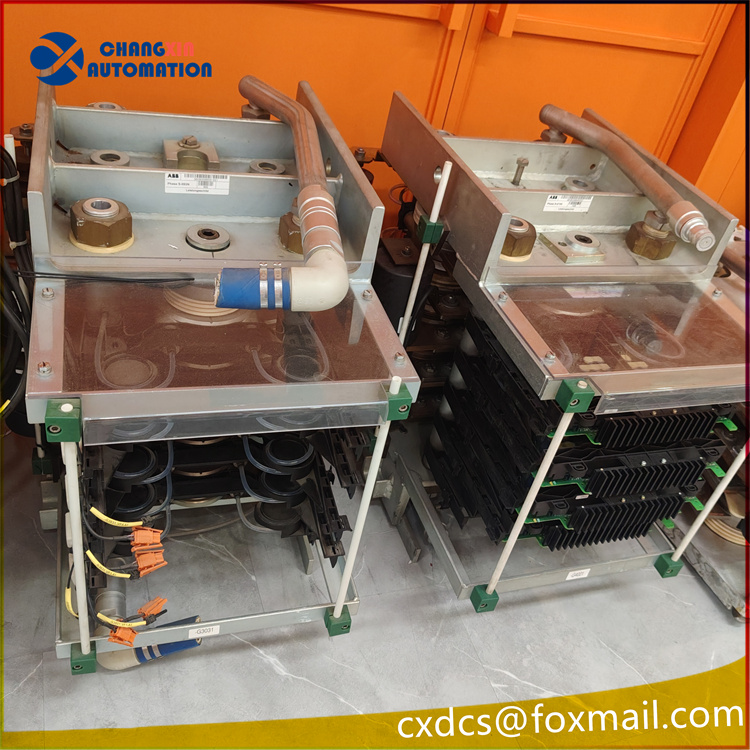

ABB Phase S-073H Module | ACS6000 | 3BHB009884R0021.With the ACS6000 you can control your high performance applications in the metals, marine and mining industries.
The ABB Phase S-073N 3BHB009884R0021 is a specialized component designed for high-performance control systems, particularly suited for medium voltage AC drives in various industrial applications.
The S-073N module is typically used in high-performance control systems, particularly suitable for:
High voltage AC drives
Special purpose drives
Industrial automation applications
DC to AC and AC to DC conversion
