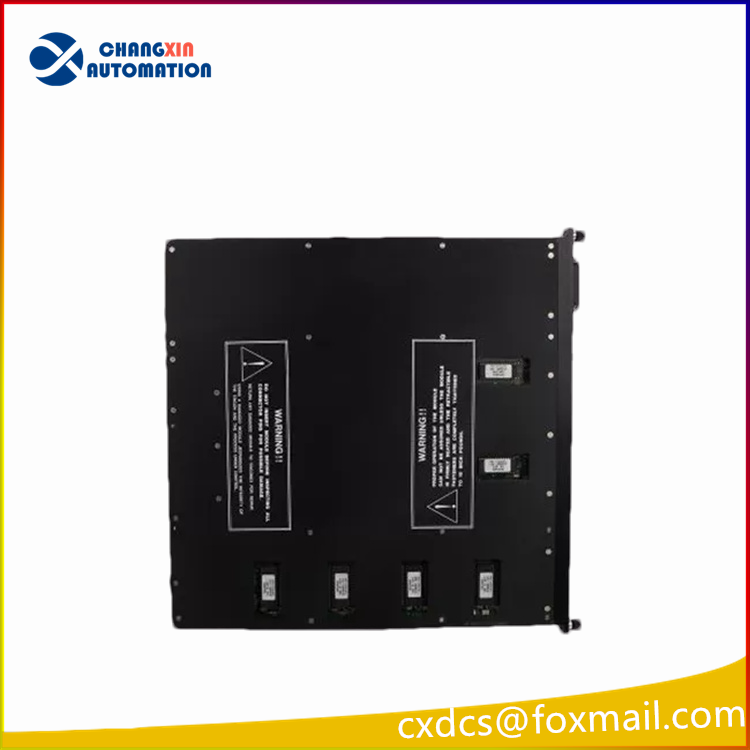

Triconex 3006 Main Processor Module

Technical Specifications

• Input Type: Processor Module
• Number of Channels: 32
• Input Voltage Range: 24 VDC nominal (range: 20.4 to 28.8 VDC)
• Input Current: 7 mA typical at 24 VDC
• Isolation Voltage: 1500 V RMS channel-to-channel and channel-to-backplane
• Response Time: 2 ms typical
• Diagnostics: Line monitoring, open/short circuit detection
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 5% to 95% non-condensing
• Mounting: Compatible with Triconex chassis and backplanes
• Power Consumption: 5 W typical
• Dimensions: Standard Triconex module size
• Weight: 0.9 kg

Applications

• Oil and Gas: Ensures safe and efficient operation of drilling, production, and refining processes.
• Power Generation: Provides reliable input monitoring for turbine control and safety systems.
• Chemical Processing: Monitors critical process parameters to maintain safety and compliance with industry regulations.
• Manufacturing: Enhances the safety and reliability of automated manufacturing processes.
•
