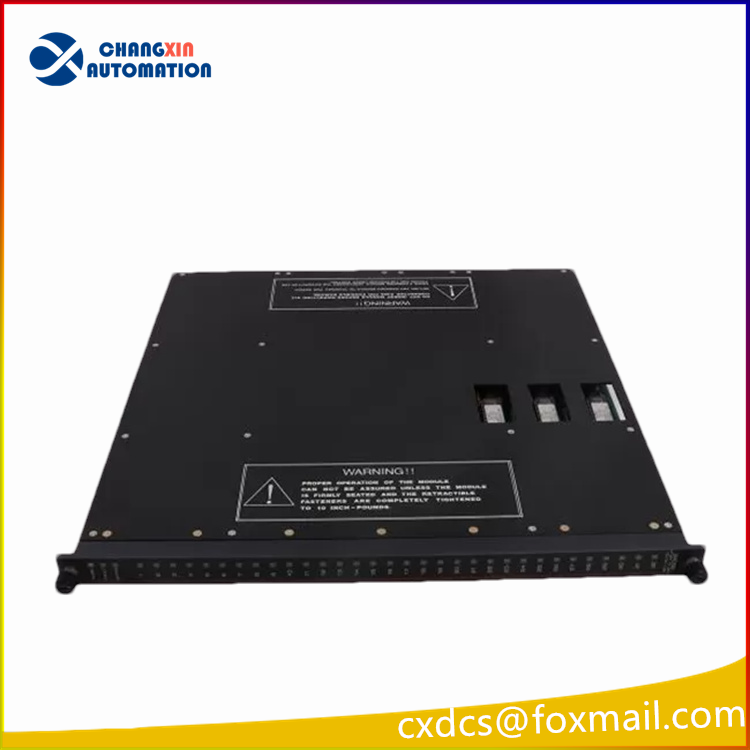

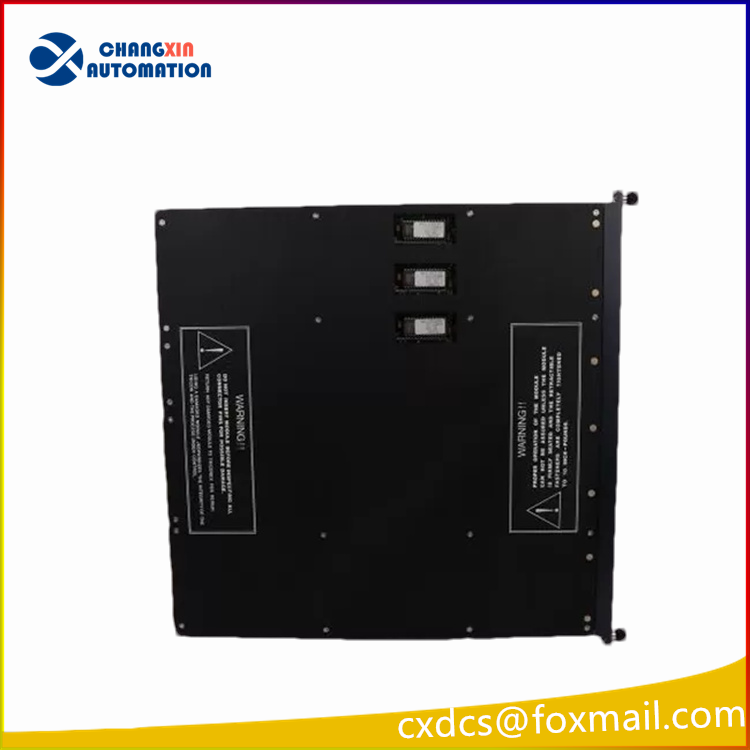

Triconex 3502E Digital Output Module In Stock

The TRICONEX 3502E main processor module is a key component of the TRICONEX brand, specifically designed for demanding and highly reliable industrial environments. Here is a detailed introduction to it:

Core function
Triple redundancy design: The TRICONEX 3502E adopts a triple modular redundancy (TMR) architecture. Each control channel can independently process input signals and output control signals. This design ensures that when any one channel fails, the other channels can still operate normally, thereby guaranteeing the continuity and stability of the system.
Execution of control logic: The module receives signals from sensors and other input devices, performs calculations and judgments according to the preset control logic, and then sends control instructions to the actuator to achieve precise control of the industrial process.
Data processing and communication: The TRICONEX 3502E can handle a large amount of data, including the processing of input signals, the generation of output instructions, and communication with other devices or systems. It supports multiple communication protocols, such as TriStation, Modbus, TCP/IP, etc., to ensure accurate data transmission and real-time performance.
Online diagnosis and fault detection: The module has comprehensive online diagnostic functions, which can monitor the operating status of the system in real time, diagnose potential faults, and take corresponding measures promptly to ensure the stability and safety of the system.

• [We provide timely fast delivery!]

• [We offer % quality and satisfaction, otherwise your money will be refunded upon request!]

• [We provide international transport services to all countries or regions]

• [We offer shipping via USPS or FEDEX Postal service!]

TMR Digital Output Modules

The digital output is designed to provide current to field devices, so the field power supply must be connected to each output point of the field terminal.

Each TMR digital output (DO) module receives the output signal from the main processor on each of the three channels. Then a special quadruple output circuit on the module votes for each group of three signals. The circuit generates a voting output signal and transmits it to the field terminal. The quadruple voter circuit provides multiple redundancies for all critical signal paths, thus ensuring safety and maximum availability.

In addition, ongoing diagnosis is performed on each channel and circuit of the TMR digital output module. Any diagnostic failure on any channel will activate the “fault” indicator, which in turn activates the chassis alarm signal. The fault indicator only indicates channel faults, not module faults. Ensure that the module can operate normally when a single fault occurs and can continue to operate normally when certain multiple faults occur.
