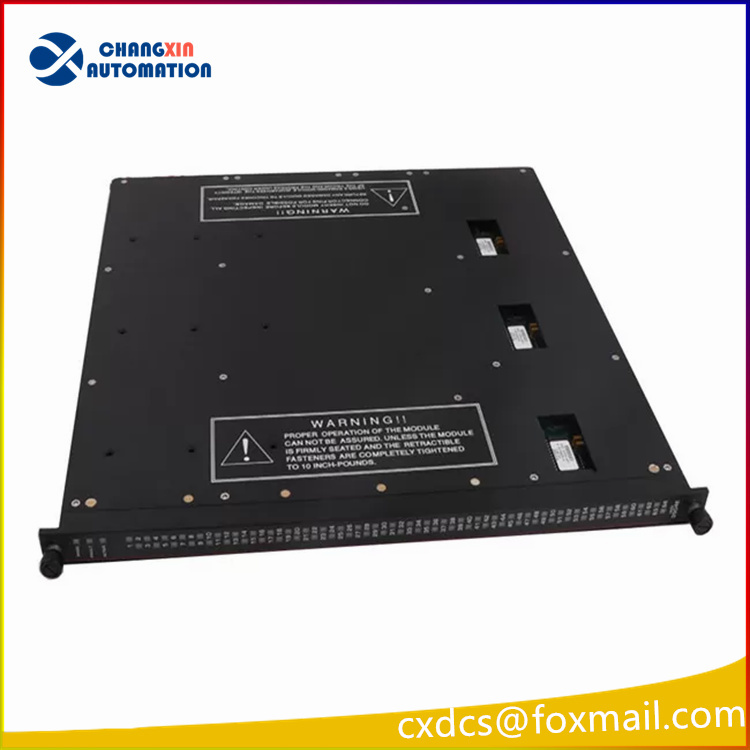

The TRICONEX 3504E is a high-density digital input module produced by Triconex, mainly used in the field of industrial automation. It features high reliability, redundant design, self-diagnosis, and support for multiple communication protocols. Here is a detailed introduction to the TRICONEX 3504E:
I. Product Features
High-density digital input:
64-point digital input module, each module has three isolated channels, which can independently handle all the data of the input module.
Suitable for monitoring and controlling temperature, pressure, level and other process variables.
Redundant design:
Uses a triple module redundancy (TMR) structure to ensure normal operation even in the event of a single or multiple failures.
All critical signal paths are 100% tri-frequency to enhance safety and availability.
Self-diagnosis and protection:
The microprocessor on each channel scans each input point, compiles the data and transmits it to the main processor as required.
Input data is voted on the main processor before processing to ensure the highest integrity.
Any failure of a channel will activate the fault indicator, which will then activate the chassis alarm.
Support for multiple communication protocols:
Supports multiple communication protocols and standards, enabling seamless connection with different devices and systems.
Flexibility and configurability:
Users can configure the module through the software to set parameters and adjust functions to adapt to various complex and variable industrial automation environments.
Technical Specifications
Number of Input Points: 64 digital input points.
Input Type: Direct coupling.
Operating Voltage: 24VDC or 48VDC (depending on the configuration).
Isolation Method: Channel-to-channel isolation (however, some materials indicate that the 3504E high-density digital input module does not have channel-to-channel isolation, which might refer to a specific model or configuration).
Self-check Function: Has a self-check function for circuit lock-on or lock-off, which can detect all “lock-on” and “lock-off” faults within half a second.
Application scenario
The TRICONEX 3504E module is widely used in industrial automation fields that require high reliability and safety, such as:
Oil and gas production: Used to monitor and control various parameters during the production process to ensure production safety.
Chemical plants: During the chemical production process, precise monitoring and control of parameters such as temperature, pressure, and liquid level are carried out.
Power stations: Used for monitoring and protection in the power system to ensure the stability and safety of power supply.
Other safety-critical industrial processes: Such as the steel and pharmaceutical industries, real-time monitoring and control of key parameters during the production process are carried out.
