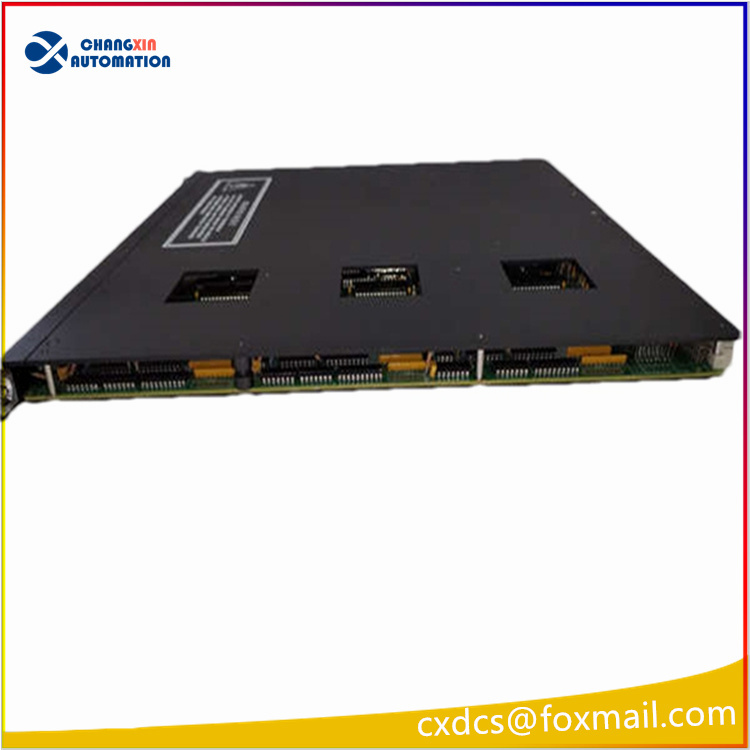

TRICONEX 3511 MAIN PROCESSOR MODULE Brand New In Stock

product description：

Triconex Communication Interface Module (TCMI)

The TCMI is a standard Honeywell product that provides the interface between the Fault Tolerant Ethernet (FTE) based Enhanced Universal Control Network (EUCN) and Triconex Tricon Safety Manager System.

The TCMI connects directly to an Ethernet port of the Tricon Communication Module (TCM) in the Tricon Safety Manager. The TCM implements the TSAA communication protocol on Ethernet networks for communication with the Tricon controller. TSAA Protocol is a messaging protocol used in application programs that read and write data to the Triconex controllers and is utilized by the TCMI.

TCMI Specification

TCMI Functional Overview

The TCMI Module database is configured from the TPN Native Window environment using the TPN Data Entity Builder. Once loaded into the TCMI node, this TCMI configuration data can be saved on the History Module and downloaded over the EUCN to the TCMI. The ladder logic program for the Triconex TRICON™ is developed using the Triconex TRISTATION workstation. Once loaded in the memory of the TRICON™ Enhanced main processors, the control programs are saved in the TRISTATION database, which can save

multiple ladder logic programs under separate file names. In addition to the integration of Triconex system data points into standard TPN/TPS operating/engineering environment, some additional maintenance displays have been created to provide TRICON™ diagnostic information.
