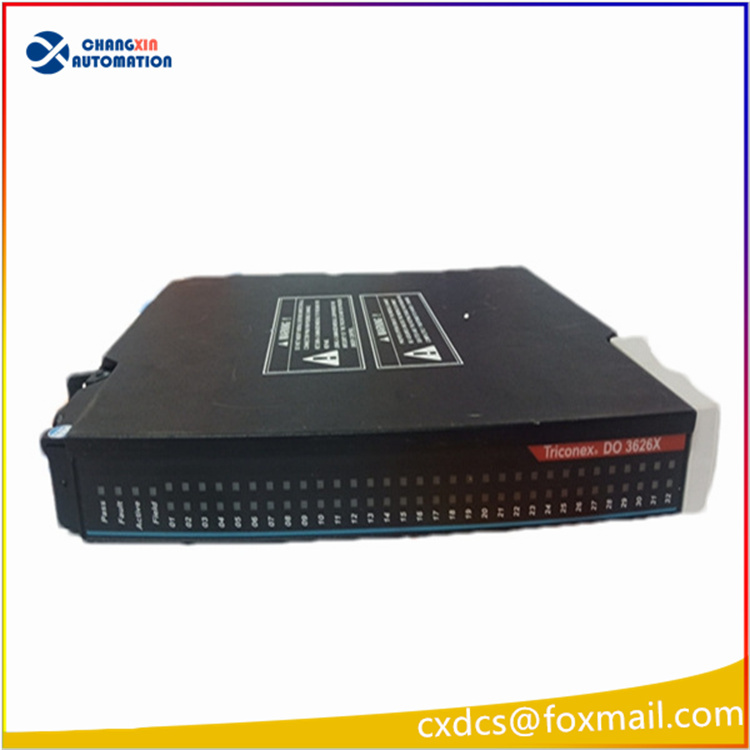

The TRICONEX 3626X main processor module is a key component of the TRICONEX brand, specifically designed for demanding and highly reliable industrial environments. Here is a detailed introduction to it:
I. Core Function
Triple Redundancy Design: The TRICONEX 3626X adopts a triple modular redundancy (TMR) architecture. Each control channel can independently process input signals and output control signals. This design ensures that even if any one channel fails, the other channels can still operate normally, thereby guaranteeing the continuity and stability of the system.
Execution of Control Logic: The module receives signals from sensors and other input devices, performs calculations and judgments based on the preset control logic, and then sends control instructions to the actuator to achieve precise control of the industrial process.
Data Processing and Communication: The TRICONEX 3626X can handle a large amount of data, including the processing of input signals, the generation of output instructions, and communication with other devices or systems. It supports multiple communication protocols, such as TriStation, Modbus, TCP/IP, etc., to ensure accurate data transmission and real-time performance.
Online Diagnosis and Fault Detection: The module has comprehensive online diagnostic functions, which can monitor the operating status of the system in real time, diagnose potential faults, and take corresponding measures promptly to ensure the stability and safety of the system.
Technical Characteristics
High Precision and Stability: The TRICONEX 3008N features high precision, high stability, and a wide frequency range, which can meet the requirements of various complex industrial processes.
Low Power Consumption: While pursuing high performance, this module also pays attention to energy conservation and reduction. Its low power consumption characteristic enables the equipment to significantly reduce energy consumption during long-term operation.
Strong Communication Capability: Supports multiple communication protocols to ensure seamless connection and data exchange between the equipment and other systems or devices.
Extensive Diagnostic Function: Can verify the operation status of each processor, I/O module, and communication channel. Transient faults are recorded and shielded by the hardware majority voting circuit, and faulty modules can be hot-swapped after diagnosing persistent faults.
Application fields
The TRICONEX 3626X main processor module is widely used in various industrial control systems, such as in the fields of petrochemicals, power, pharmaceuticals, mining, energy, construction materials, electronics, and many others. Additionally, this module is also applicable to high-precision control scenarios such as critical batch control and critical process control loops.
Other related models:
TRICON 3501E/T is isolated and non-public voltage: 115VAC/VDC. Input points: 32
TRICON 3502E has 8 points per group, shared, with self-test function. Voltage: 48VAC/VDC. Input points: 32
TRICON 3503E has 8 points per group, shared, with self-test function. Voltage: 24VAC/VDC. Input points: 32
TRICON 3504E is high-density – public, DC coupled. Voltage: 24/48VDC. Input points: 64
TRICON 3505E has low threshold voltage, with self-test, public. Voltage: 24VDC. Input points: 32
TRICON 3564 is simple type, public. Voltage: 24VDC. Input points: 64. Digital output
TRICON 3601E is optically isolated, non-public. Voltage: 115VAC. Output points: 16
TRICON 3603E is optically isolated, non-public. Voltage: 120VDC. Output points: 16
TRICON 3603E is optically isolated, public. Voltage: 120VDC. Output points: 16
TRICON 3604E is optically isolated, non-public. Voltage: 24VDC. Output points: 16
TRICON 3607E is optically isolated, non-public. Voltage: 48VDC. Output points: 16
TRICON 3608E is optically isolated, non-public. Voltage: 48VDC. Output points: 16
TRICON 3611E is supervisory type, optically isolated, public. Voltage: 115VAC. Output points: 8
TRICON 3615E is supervisory type, optically isolated, public. Voltage: 24VAC (low power consumption). Output points: 8
TRICON 3613E is supervisory type, optically isolated, public. Voltage: 120VAC. Output points: 8
TRICON 3617E is supervisory type, optically isolated, public. Voltage: 48VAC. Output points: 8
TRICON 3614E is supervisory type, optically isolated, public. Voltage: 24VDC. Output points: 8
TRICON 3623 is supervisory type, optically isolated, public. Voltage: 120VDC. Output points: 16
TRICON 3624 is supervisory type, optically isolated, public. Voltage: 24VDC. Output points: 16
TRICON 3664/3674 is dual-channel output, public. Voltage: 48VDC. Output points: 32
