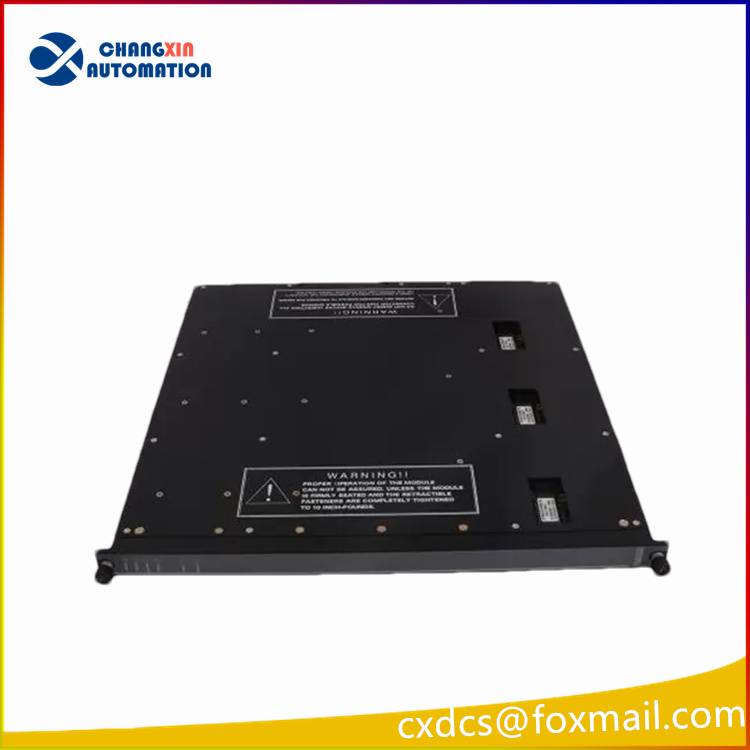

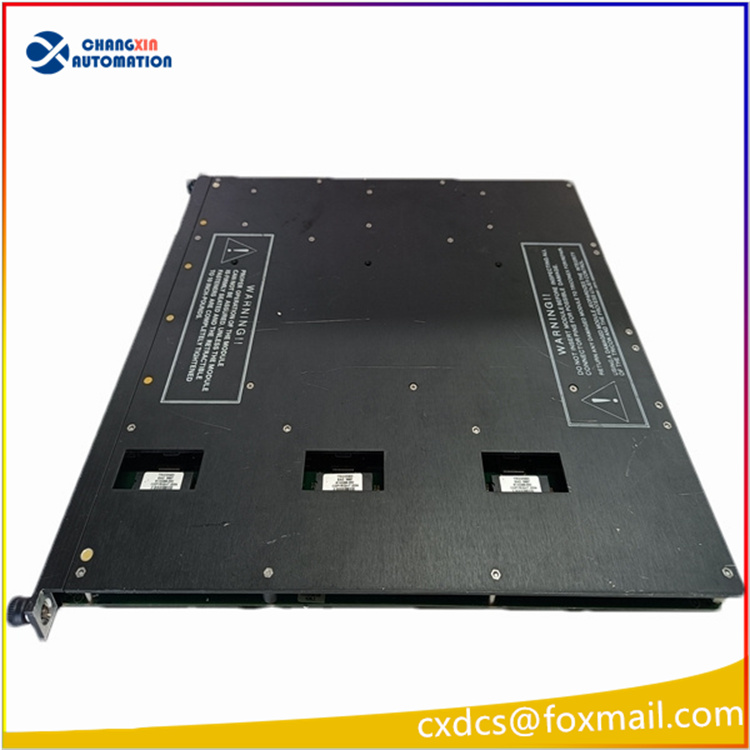

The TRICONEX 3805E analog output module is a crucial component in the Triconex safety control system, specifically designed for industrial applications requiring high safety and high availability. Here is a detailed introduction to this module:
I. Product Overview
Brand and Model: TRICONEX 3805E
Product Type: Analog Output Module
Application Fields: Process control, valve regulation, and emergency shutdown systems in petrochemicals, refineries, natural gas platforms, power plants, and offshore platforms, etc., in critical safety control scenarios.
Product Features
High Precision Analog Output:
Provides 8 independent analog output channels, each with 12-bit resolution, capable of precisely outputting 4-20 mA current signals for controlling various on-site actuators, such as valve positioners, frequency converters, etc.
High output accuracy, meeting the strict requirements of industrial process control for precision.
Triple Module Redundancy (TMR) Design:
Uses unique TMR technology, where each output channel is controlled by triple hardware and voting logic, effectively preventing erroneous outputs due to a single component failure, ensuring the safe operation of the system.
Even if a single channel fails, the system can still operate normally, improving system reliability and safety.
Enhanced Diagnostic Function:
Built-in self-check and fault detection mechanisms, real-time monitoring of module status and output channel health.
Provides comprehensive diagnostic indicators, including PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2, etc., facilitating users to promptly detect and handle potential issues.
Automatically isolates faulty channels in abnormal situations, alarms the main processor, improving system reliability.
Flexible Configuration and Integration:
Supports various communication interfaces and protocols, such as Modbus, Profibus, Ethernet, etc., facilitating integration with other control systems and data exchange.
Compatible with other modules of the TRICONEX system, facilitating integration into existing automation systems.
Supports hot standby function, allowing online replacement of faulty modules during system operation, further enhancing system availability.
Industrial-grade High Reliability Design:
Uses industrial-grade components and sturdy hardware design, with strong anti-electromagnetic interference capabilities and a wide temperature operating range.
Can operate stably and reliably in high-temperature, high-humidity, or harsh industrial environments, ensuring the long-term stability and reliability of the system.
Technical Parameters
Output Type: 4-20mA Current Output (+6% Overrange)
Resolution: 12-bit
Output Precision: <0.25% (in the range of 4-20mA, FSR 0-21.2mA, temperature 0°C to 60°C)
Operating Temperature: 0°C to +60°C (32°F to 140°F)
External Circuit Power Supply: +24VDC (nominal); +42.5VDC (maximum)
Output Circuit Power Supply Requirements: >20VDC (at least 1 ampere)
Overrange Protection: +42.5VDC, continuous
Load Resistance: 250Ω (>20VDC), 500Ω (>25VDC), 750Ω (>30VDC), 1000Ω (>35VDC) (minimum current of 1 ampere)
Fault Switching Time: <10 ms (typical value, in single-leg failure)
Channel-to-Channel Isolation: No isolation, common ground circuit, DC coupling
Application Scenarios
Oil and Gas Industry: Applied in emergency shutdown systems (ESD), fire and gas detection systems (F&G), high integrity pressure protection systems (HIPPS), etc., in safety-critical circuits, precisely controlling valve positioners, regulating valves, etc.
Chemical Industry: Applied in reactor safety control, process interlock protection, etc., systems precisely controlling flow, pressure, temperature, etc., key process parameters.
Power Industry: Applied in boiler control systems, turbine control systems, etc., achieving precise analog control, ensuring the safety and reliability of power production. Other high-risk industrial sectors: such as pharmaceuticals, paper manufacturing, water treatment, etc., which have strict requirements for safety and control accuracy.
